USED L2D SMT led chip mounter pick and place machine for T8

Mounting height:13mm

keywords: chip mounter

PCB conveying speed:320mm/s

PCB Size:1200*320mm

Product description: pick and place machine, led pick and place machine, pnp machine, smt machine, placement machine, pick and place soldering machine, pick and place machine smt, pick and place robot machine, pick and pl

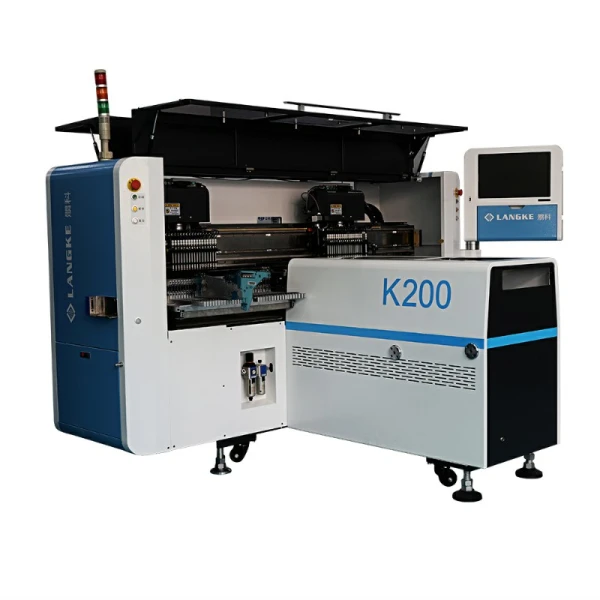

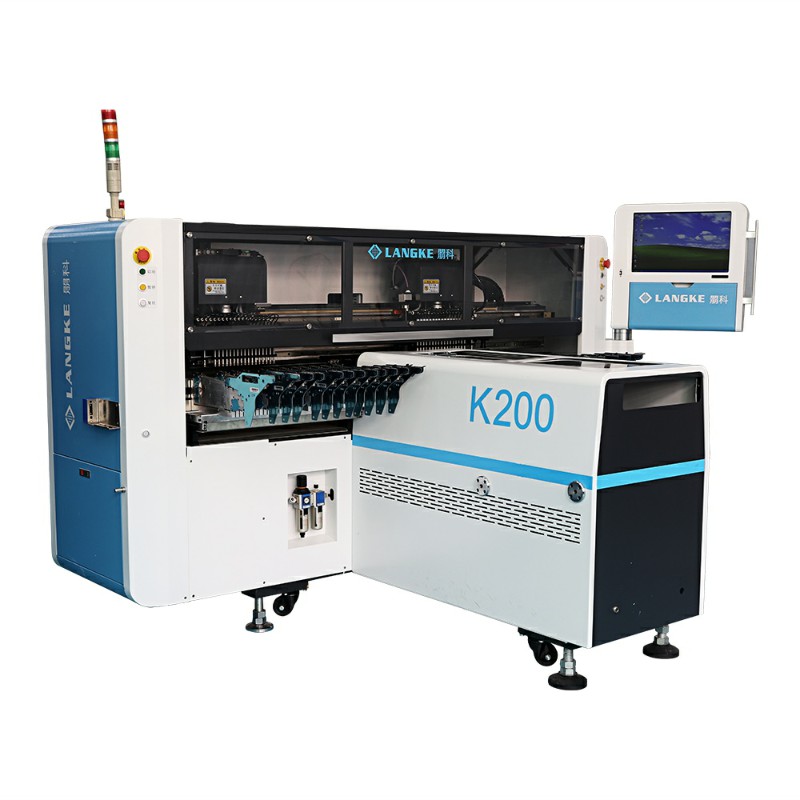

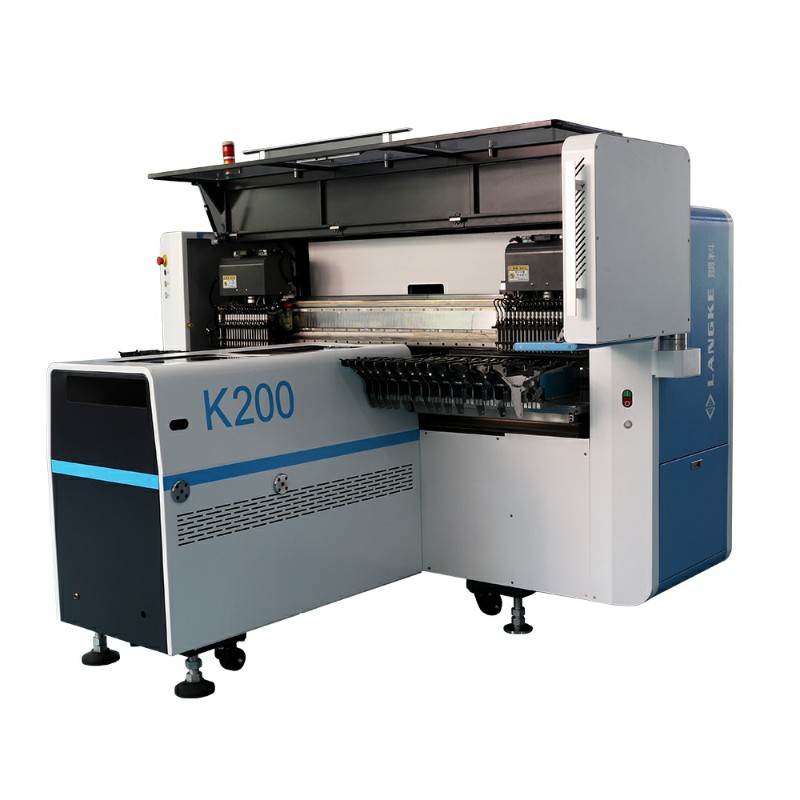

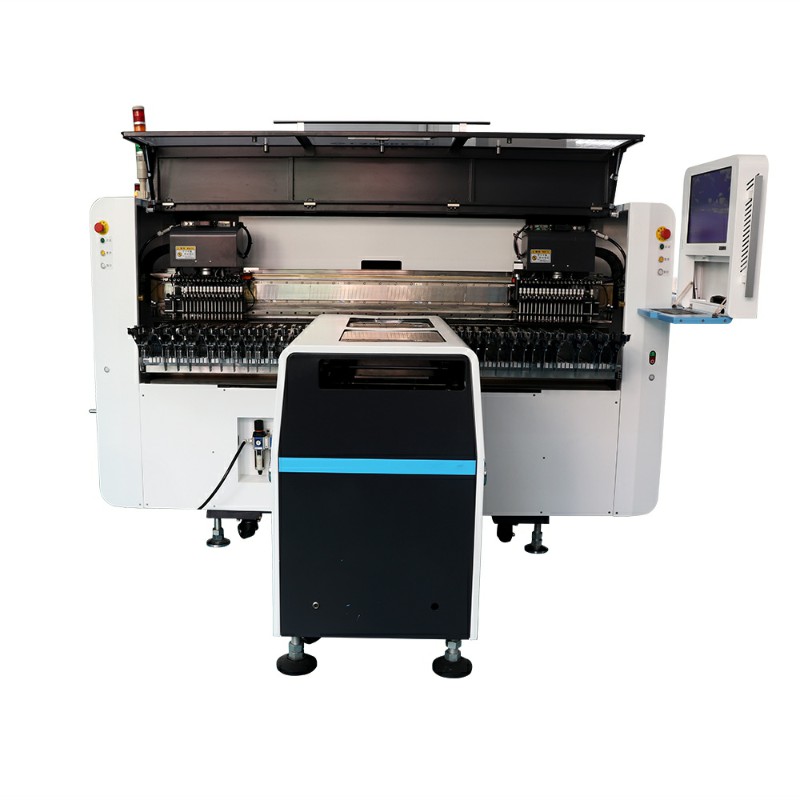

Used L2D SMT led chip mounter placement machine

Update machine model L2D is based on our old model K200

Noted: Dear all friends, based on the market requirement, our K200 (L2D) already stopped manufacturer.

Description:

1.K200 is the most popular LED tubes,led strips and LED panels mounter, equiped with 2 modules and 72 electric feeders,can mount 4 kinds of component meanwhile and the capacity can reach 120-160K CPH.
2. Adopt imported linear motor and grating ruler to locate the position, make sure the machine mounting with high speed and high accuracy.We promise to provide 2 years guarantee for the linear motor.
3.Integrated machine frame,welded into a whole by industrial class steel tubes and panels,greatly increase the machine's stability.

Specification:

Item	Parameter

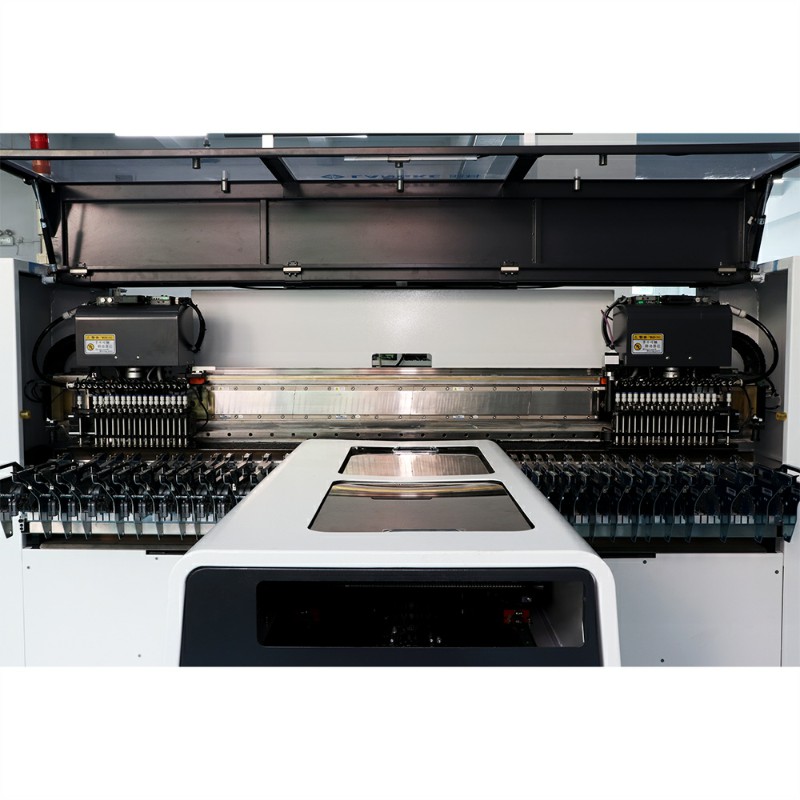

Mounting head	2 arms, 36 nozzles, 18 pieces nozzle per arm
Mounting component range	0805, 1206, 2835, 3014, 3528, 5050, 5630, 5730, RGB and other LED strip light and resistance
Mounting Pattern	Group picking and group mounting）
Driver of mounting head(Y Axis)	Linear motor(Magnetic levitation)
Mounting height	13mm
PCB position	CCD vision and MARK position
PCB conveying speed	320MM/S
PCB conveying direction	Front to Back
Mounting accuracy	±0.05MM
Min mounting distance	13MM
Mounting speed	70000CPH*2=140000CPH(Using 36 pieces nozzle condition)
Rail size	1300MM(L)-340mm（W)
PCB size	1200MM(L)-320mm（W)
PCB thickness	0.5mm-5.0mm
FEEDER amount	18（8mm)*4=72pcs;Electronic FEEDER
Electric	220V AC/50Hz/2 Phase
Max power consumption	3.0 KW
Air pressure	5kg
Dimension	(L)：2650mm
	(W)：2650mm
	(H)：1650mm
Weight	2000kg
