L400 single pick and single place FPCB roll led strip light
Product Description
L400 Is The Single Nozzle Holder Linear Motor Ultra High Speed Mounter For 5 - 100 M Long Wireless LED Strip, It Has Two Modules And 18 Nozzles On Each Module,And All Position Of Nozzles Can Be Adjusted Freely According To Different PCB Width,Besides,Customers Can Choose Feeder Station Amount(3 Or 4),It Depends On The Types Of Components Of Their Product. L400 Equipped With The Vision Inspection System To Avoid Component Missing When Mounting,It Helps Operator To Decreasing The Reject Ratio
|

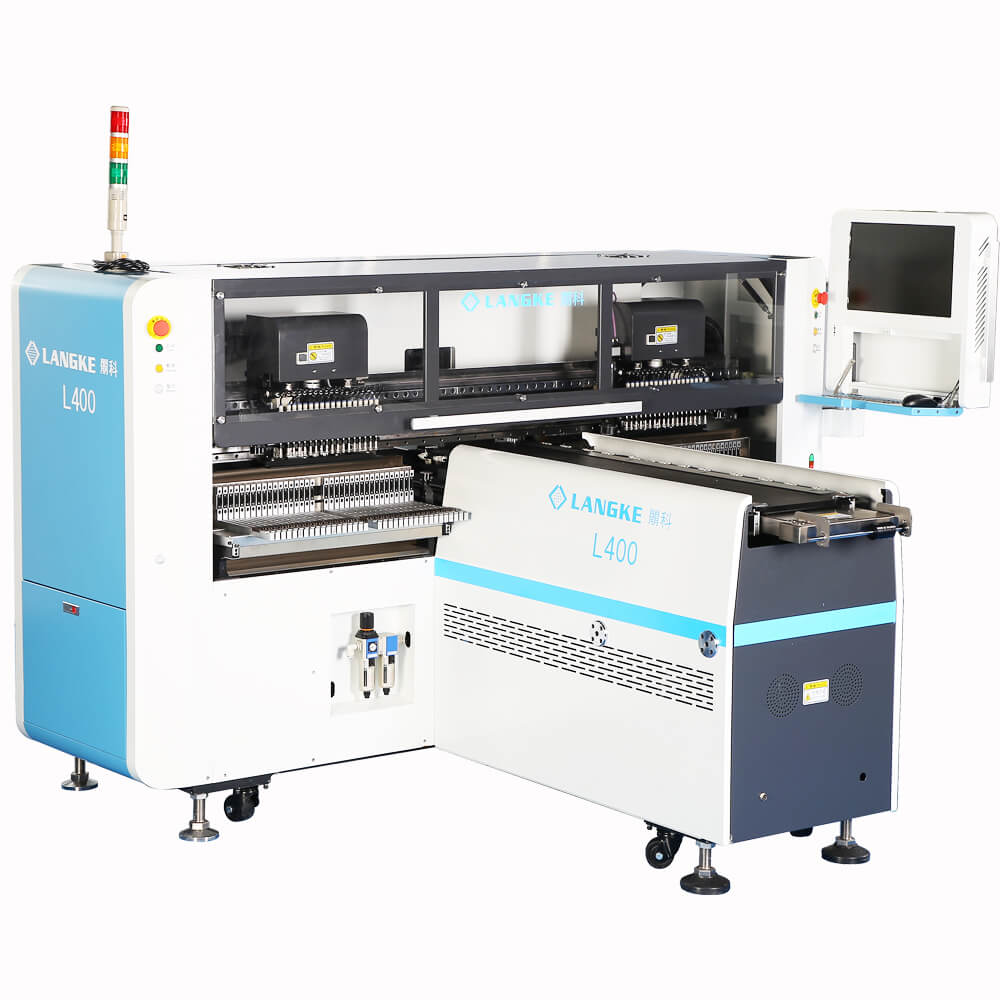

L400 Wireless LED Strip Light Mounter |
|
|
Model |
L400 |
|
PCB |
|
|
PCB Size |
Max : W:280mm L:No Limitation |
|
PCB Thickness |
0.3-5mm |
|
PCB Positioning |
CCD Visual,Mark Point Positioning |
|
PCB Transmitting Speed |
320mm/S |
|
PCB Transmitting Direction |
Front To Back |
|
Mounting |
|
|
Mounting Head Driver |
Maglev Linear Motor |
|
Mounting Head Amount |
2Heads |
|
Nozzles Amount |
18 Pcs Perarm,Totally36Pcs |
|
Mounting Accuracy |
±0.05mm |
|
Mounting Speed |
130000 -170000 CPH |
|
Repeat Accuracy |
±0.01mm |
|
Min Mounting Gap |
12.5mm |
|
Components Range |
0603,0805,1206,2835,3014,3528,5050,5630,5730,RGB And Other LED Stripped Material. |
|
Component Height |
13mm |
|
Feeder Amount |
54/72 Pcs |
|
Feeder Type |
Dual Motor Electric Feeder |
|
Mounting Type |
Group Picking And Group Placing |
|
PCB Input/Output Method |
Vacuum Absorb +Belt Transfer |
|
System |
|
|
Computer System |
Windows |
|
Operating Software |
Independent R&D By Langke |
|
Visual System |
5 Sets Ofoptical Camera |
|
Motion Control Module |
Googol/Gaochuan Motion Control Card |
|
X、Y Axis Driver |
Japanese Fuji Servo Motor |
|
Working Requirement |
|
|
Power |
380V AC/50Hz/2 Phase |
|
Max Power |
5.0 KW |
|
Air Pressure |
0.5-0.8Mpa |
|
Temperature |
23℃±3 |
|
Dimension |
|
|
Dimension |
2850*2650*1650mm |
|
Weight |
2600KG |
