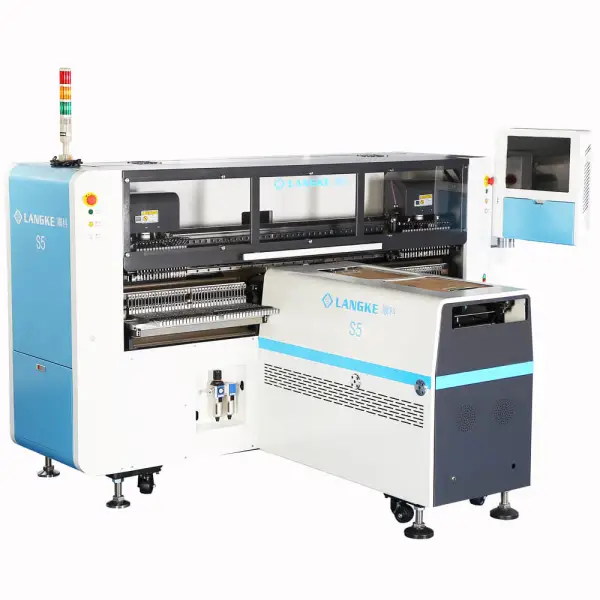

LANGKE S5 380V high speed pick and place machine
Product Description
S5 Is A High Speed SMD Machine/Mounter For LED Tube,Strip And Panel Light,Equipped With The Latest High Power 380V Maglev Linear Motor.The Max PCB Length Is 1.2M,It Has Two Modules And 18 Nozzles On Each Module,And All Position Of Nozzles Can Be Adjusted Freely According To Different PCB Width,Besides,Customers Can Choose Feeder Station Amount(3 Or 4),It Depends On The Types Of Components Of Their Product.The Machine Standard Equipped With Vision System For Mark Point Detection,Vision Inspection System To Avoid Component Missing When Mounting Is Optional.
S5 LED Strip/Tube Light SMD Machine
Model
S5
PCB
PCB Size
Max:1200*320mm Min:90*90mm
PCB Thickness
0.5-5mm
PCB Positioning
CCD Visual,Mark Point Positioning
PCB Transmitting Speed
320mm/S
PCB Transmitting Direction
Front To Back
Mounting
Mounting Head Driver
Maglev Linear Motor
Mounting Head Amount
2 Arms
Nozzles Amount
18 Pcs Perarm,Totally36Pcs
Mounting Accuracy
±0.05mm
Mounting Speed
130000 -170000 CPH
Repeat Accuracy
±0.01mm
Min Mounting Gap
12.5mm
Components Range
0603,0805,1206,2835,3014,3528,5050,5630,5730,RGB And Other LED Stripped Material.
Component Height
13mm
Feeder Amount
54/72 Pcs
Feeder Type
Dual Motor Electric Feeder
Mounting Type
Group Picking And Group Placing
PCB Input/Output Method
Vacuum Absorb +Belt Transfer
System
Computer System
Windows
Operating Software
Independent R&D
Visual System
5 Sets Ofoptical Camera
Motion Control Module
Googol/Gaochuan Motion Control Card
X、Y Axis Driver
Japanese Fuji Servo Motor
Working Requirement
Power
380V AC/50Hz/2 Phase
Max Power
5.0 KW
Air Pressure
0.5-0.8Mpa
Temperature
23℃±3
Dimension
Dimension
2850*2650*1650mm
Weight
2600KG
