double lane for long FPCB strip light mounter machines

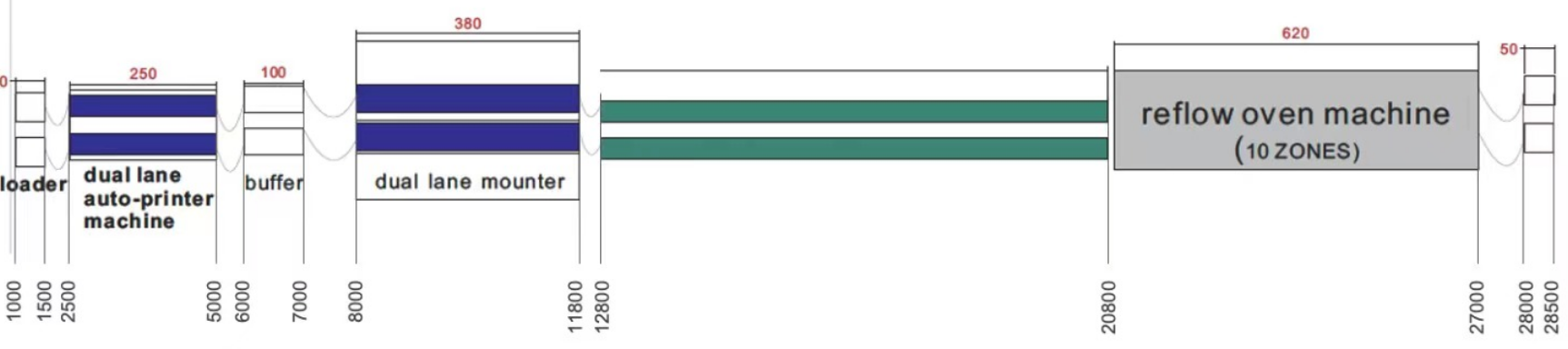

we will according to customer requirememt to do the production line solution

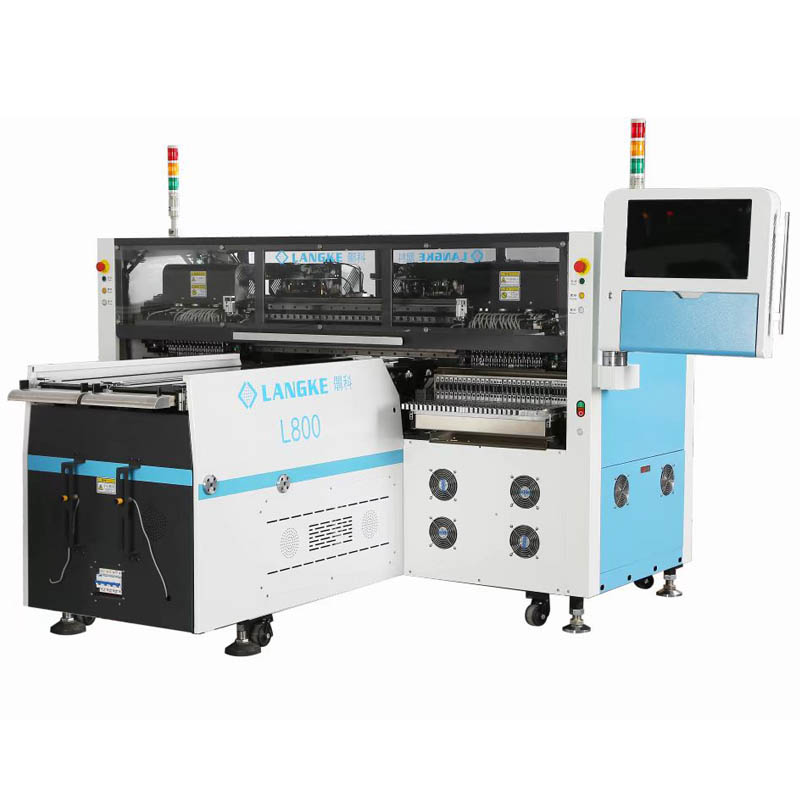

LANGKE dual lane FPCB LED Mounter Machine | |
Model | L800 |
PCB | |
PCB Size | Max : W:270mm L: No limitation |
PCB thickness | 0.3-5mm |
PCB Positioning | CCD visual, Mark point positioning |
PCB Transmitting Speed | 320mm/s |
PCB Transmitting Direction | Front to Back |
Mounting | |
Mounting Head Driver | Maglev linear motor |
Mounting Head Amount | 4 Heads |
Nozzles Amount | 32 Pcs per head, totally 128 Pcs |
Mounting Accuracy | ±0.03mm |
Mounting Speed | 460000 - 500000 CPH |
Repeat Accuracy | ±0.01mm |
Min Mounting Gap | 6.5mm |
Components Range | 0603, 0805,1206,2835,3014,3528,5050,5630,5730, RGB and other LED stripped material. |
Component Height | 10mm |
Feeder Amount | 96/128 Pcs |
Feeder Type | Dual motor electric feeder |
Mounting Type | Group picking and group placing |
PCB Input/Output Method | Vacuum Absorb + positioning cylinder transfer |
System | |
Computer System | Windows |
Operating Software | Independent R&D by Langke |
Visual System | 10 sets of optical camera with missing component alarm（option: auto add missing component） |
Motion Control Module | Motion control card |
X、Y Axis driver | Servo Motor |
Working Requirement | |
Power | 380V AC/50Hz/3 Phase |
Max Power | 10.0 KW |
Air Pressure | 0.5-0.8Mpa |
Temperature | 23℃±3 |
Dimension | |
Dimension | 3780*2650*1650mm |
Weight | 4000KG |
