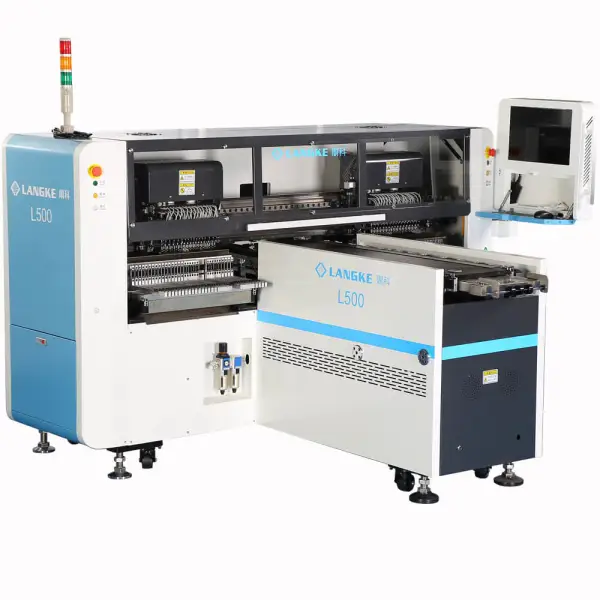

L500 Non-wire LED Strip Light SMT Machines
http://www.smdmachine.com/Uploads/roll-led-strip-light-production-line.mp4
this is a special smt pick and place machine for you to produce roll led strip light, the real placement speed can reach 250K cph
L500 Is The Latest Dual Nozzle Holder Maglev Linear Motor Mounter/Pick And Place Machine For 5 - 100 Meters Long Wireless LED Strip Light,It Has 4 Modules And 16 Nozzles On Each Module,The Actual CPH Can Reach 250K.
L500 Adopt PCB Loading Platform Of Air Cylinder Plus Vacuum Suction,Which Makes The Machine Can Assemble 100M Long Flexible PCB Continuously,Besides,Locating By Scanning 2 Mark Points Each Half Meter,Which Help To Increasing The Mounting Accuracy,It Also Has Visual Inspection System To Prevent Component Missing During Assembly,The Operator Will Recognize The Problem And Handle It Promptly To Increasing The Reject Ratio.
L500 Wireless LED Strip Light Mounter | |
Model | L500 |
PCB | |
PCB Size | Max : W:280mm L:No Limitation |
PCB Thickness | 0.5-5mm |
PCB Positioning | CCD Visual,Mark Point Positioning |
PCB Transmitting Speed | 320mm/S |
PCB Transmitting Direction | Front To Back |
Mounting | |
Mounting Head Driver | Maglev Linear Motor |
Mounting Head Amount | 2 Arms |
Nozzles Amount | 32 Pcs Perarm,Totally64Pcs |
Mounting Accuracy | ±0.05mm |
Mounting Speed | 230000 -250000 CPH |
Repeat Accuracy | ±0.01mm |
Min Mounting Gap | 6.5mm |
Components Range | 0805,1206,2835,3014,3528,5050,5630,5730,RGB And Other LED Stripped Material. |
Component Height | 13mm |
Feeder Amount | 48/64 Pcs |
Feeder Type | Dual Motor Electric Feeder |
Mounting Type | Group Picking And Group Placing |
PCB Input/Output Method | Vacuum Absorb +Belt Transfer |
System | |
Computer System | Windows |
Operating Software | Independent R&D |
Visual System | 5 Sets Ofoptical Camera |
Motion Control Module | Googol/Gaochuan Motion Control Card |
X、Y Axis Driver | Japanese Fuji Servo Motor |
Working Requirement | |
Power | 380V AC/50Hz/2 Phase |
Max Power | 5.0 KW |
Air Pressure | 0.5-0.8Mpa |
Temperature | 23℃±3 |
Dimension | |
Dimension | 2850*2500*1650mm |
Weight | 2600KG |
