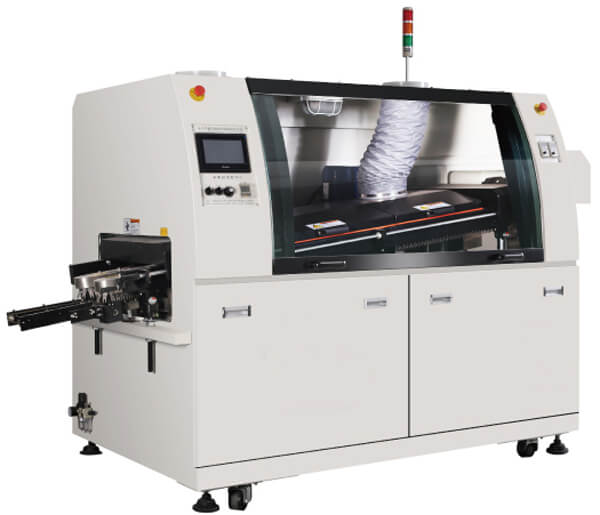

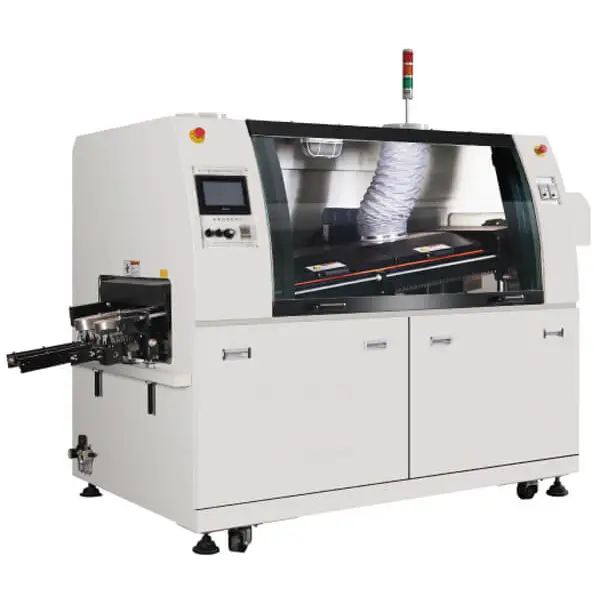

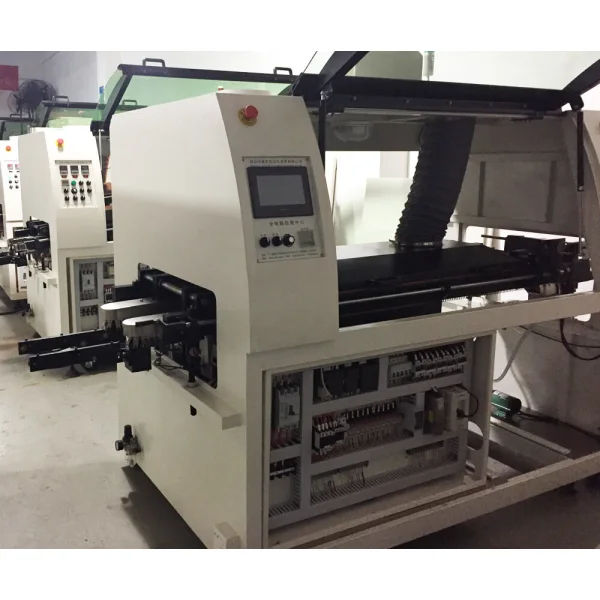

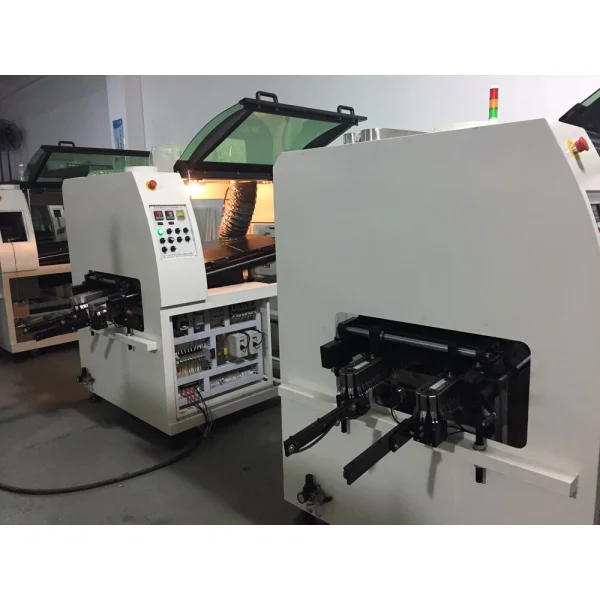

Touch screen SMD-N200 Ecomical lead free wave soldering machine

  • Name: lead free wave soldering machine
  • pre-heater length: 450mm
  • machine size:2100*1200*1600mm
  • weight:500kg
  • Product description: wave solder, wave soldering,soldering machine,lead free wave soldering machine
  • Description

    Touch screen SMD-N200 Ecomical lead free wave soldering machine

    Touch screen control:



    Standard control: keyboard


    Exhibition in Turkey: PC Control(option)

    Introduction:


    1. Automatic conveying power system and auto synchronous board feeding functions.

    2.Solder Pot peak uses frequency conversing speed adjustment which can independently control the wave height.

    3.Fluxer system using transverse Japanese spray nozzle, driven by pneumatic cylinder and PLC control, accurate and reliable.

    4.PLC is used to control the machine, to ensure the reliability and stability of the system.

    5.Pre-heaters using Infrared heating element, heat radiated efficiently to the circuit board with fast ramp up and fully activating liquid flux.

    6.Special alloy solder fingers, strengthened double v-groove.

    7.Solder-motor adopts imported high frequency conversion motor with independent control, stable performance and long lifetime.

    8.Pre-heater passage with modularized design, meet with environmental protection requirement, safety and convenient to cleanup.

    9.Preheaters uses three independent temperature control so as to ensure the excellent heat preservation, temperature uniformity, temperature accuracy in ±2ºC.

    10.Timer startup feature for solder pot, solder melted within 90 minutes.

    11.Automatic finger cleaner ensure the cleanliness of solder fingers.

    12.Intelligent monitoring and alarm system ensure the stable performance and operators’ safety.

    Specification

    Model No.

    SMD-N200

    Number of Pre-heater

    1

    Pre-heater passage

    450mm

    Body size

    1400*1200*1600

    Outside dimension

    2100*1200*1600

    Weight

    500KG

    Component lead

    Within 10 mm

    Total/steady consumption

    9KW/3-5KW

    Air supply

    0.5MPa

    Preheating style

    IR(standard)

    Preheater consumption

    220V 5KW

    Control  method

    Press key +PLC(Option: touch screen, PC)

    Range of temp. setpoint

    Room temperature---300ºC

    Preheating time

    About 10-15mins for setting 150ºC

    Solder Application

    Lead-free / Sn-Pb

    Solder pot capacity

    180KG

    Solder pot temperature

    300ºC

    Solder pot consumption

    380V 6KW

    Solder temp. control method

    PID&SSR

    Wave motor consumption

    500W 220V

    Solder melting

    About 120mins for setting 250ºC

    PCB  width

    50-250mm

    Conveyor  speed

    300-1800mm/min

    Conveyor  direction

    L→R (R→L optional)

    Conveyor   inclination

    4-7 º

    Flux pressure

    3-5 bar

    Flux capacity

    3.2L

    Machine detailed:

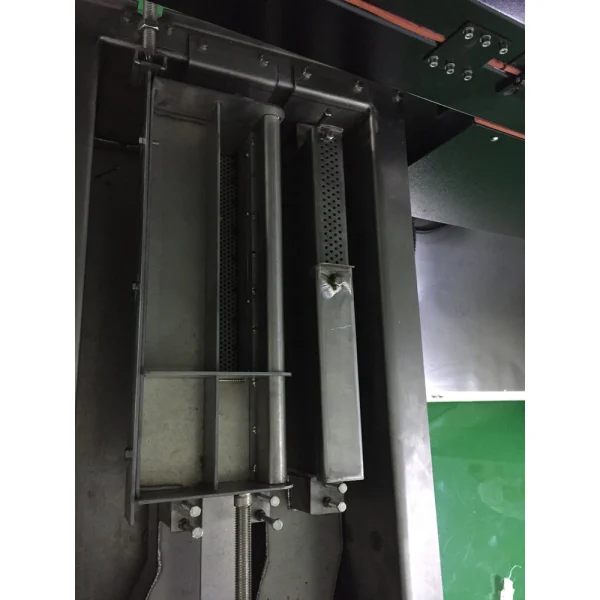

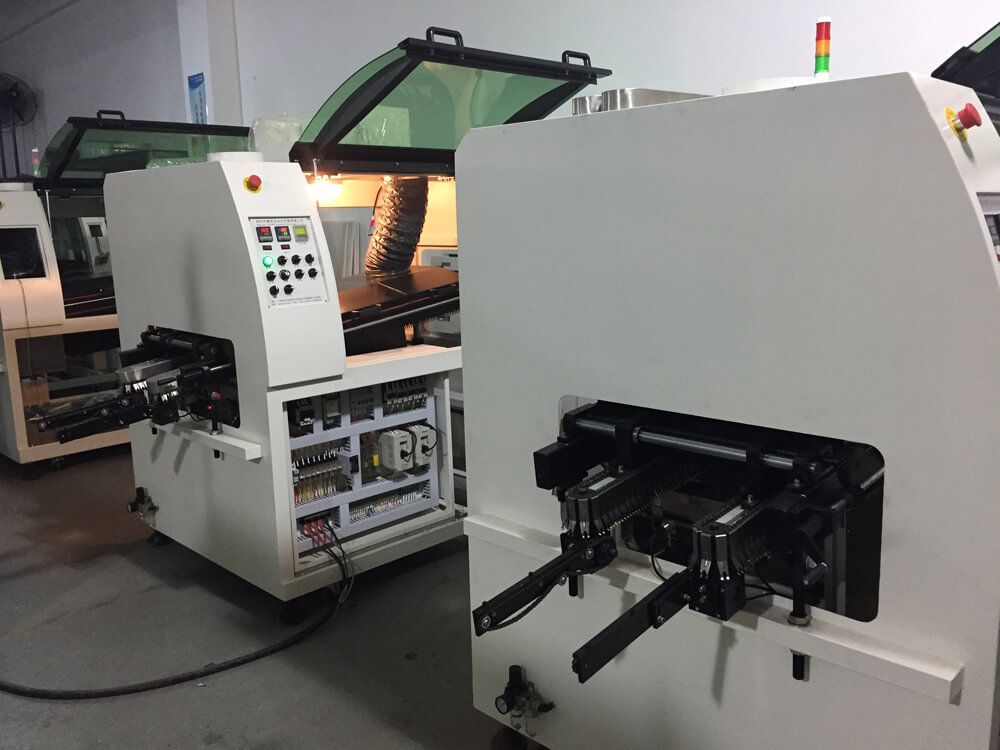

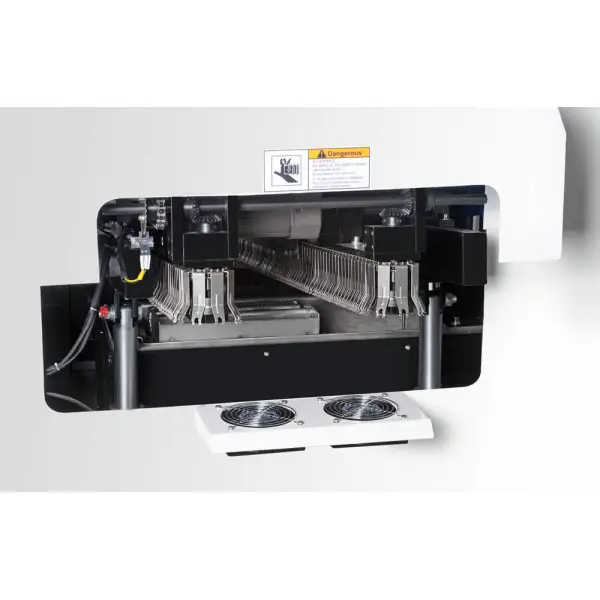

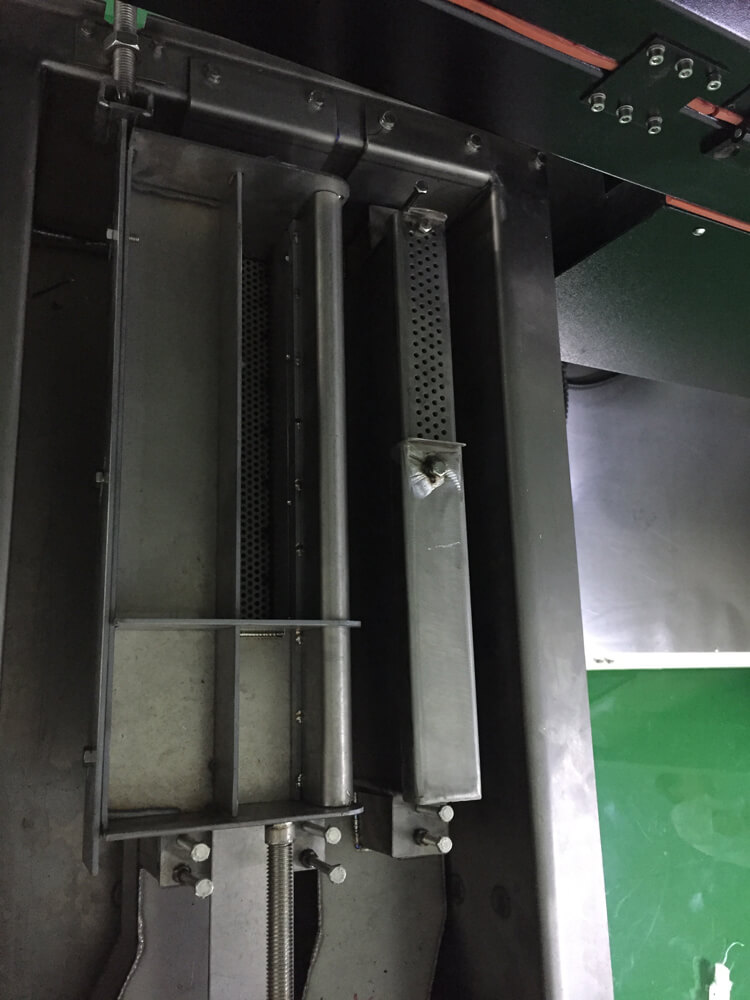

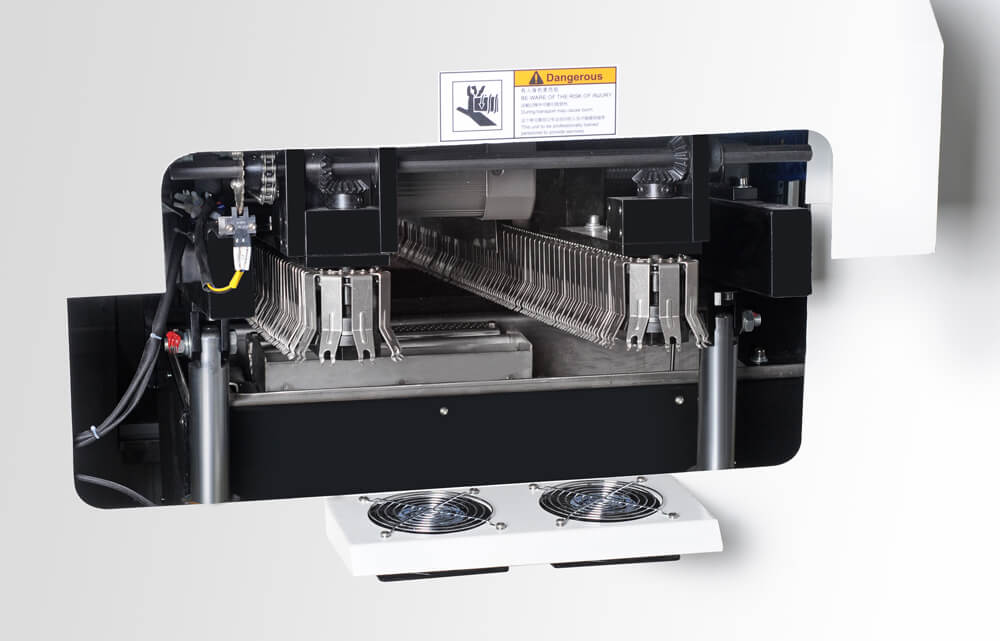

    Claw
