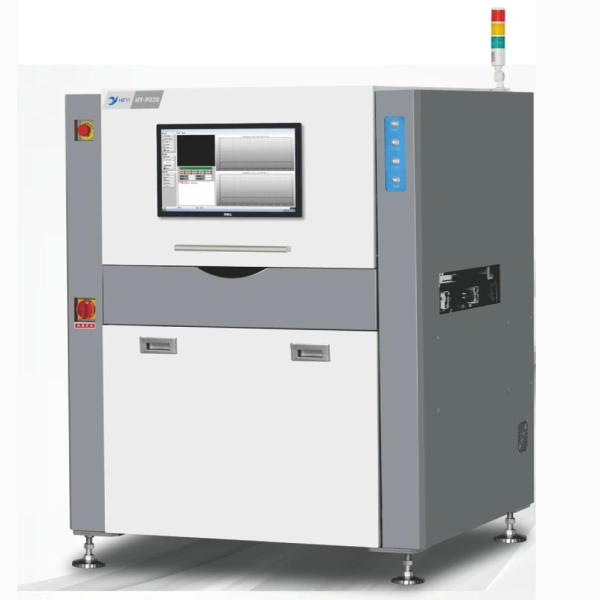

Selective spraying machine P520
Selective spraying machine, spraying machine, spray machine, smt spray machine, DIP spray machine, selective spray machine
产品参数Specification
型号 Model | HY- P520 | |
操作电源Input Voltage | AC220V土10% 50/60HZ 2KW | |
外型尺寸(长x宽x高) Dimension | 1360x 1200x 1600mm | |
Weight | About 500KG | |
Max Warpage | 2%of PCB's diagonal or < 5mm | |
Hardware and software | Min Available PCB size | 50mm x 50mm |
Max Available PCB size | 450mm x 400mm | |
PCB厚度范围 PCB Thickness | ≤6mm | |
Max PCB weight | ≤4KG(≥4KG选配optional) | |
Max PCB height | Top≤60mm, bottom≤35mm | |
PCB holding edge | ≥3.5mm | |
Conveyor speed | 750mm/s(MAX) | |
Working height | Transfer track from ground:900土20mm | |
PCB Conveyor direction | Standard: left-right optional: right-left | |
Conveyor chain | Stainless steel chain | |
Conveyor width adjustment | Manual/Automation | |
Preheating method | hot-air | |
Operation interface | Chinese/English | |
Monitor | 22 inch color monitor | |
Programming | Support general parts library and CAD data input | |
f line programming | Support (CAD) | |
Feature
| Manual programming or Automatic by AOI 's coordinate data | |
Special feature
| Intelligent spraying system save the cost of flux | |
Special conveyor design for easy maintenance | ||
CAD Input for easy programming | ||
Auto nozzle cleaning feature | ||
Applicable for special glue of PCB and conformal coating | ||
Remark: specification subject to periodic review and change without notice
