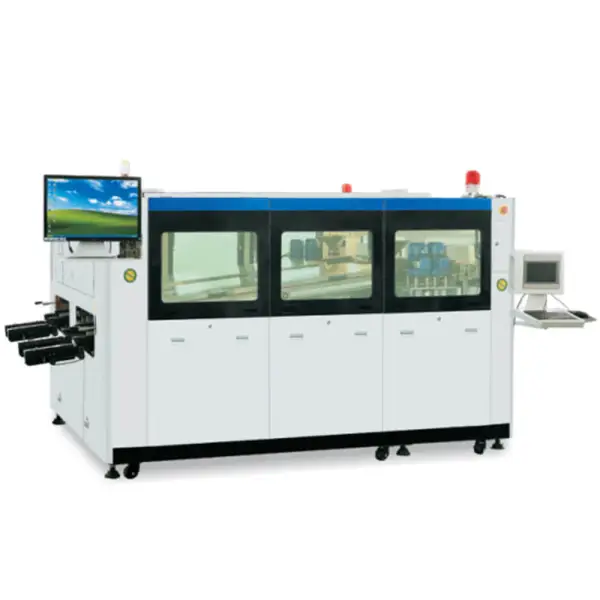

Model

KTC-350

solder pot type

the 4^th Energy-saving solder pot

PCB Width

Max.50~350

warn-up time

About 90min (set 250℃)

PCB transport height

750±50mm

solder pot temperature

room temperature to 350℃ can be set

transport speed

300-1800mm／Min

solder pot temperature control precision

±1℃

solder angle

3-7°

Solder height detection

导电式探针检测 Conductive probe  detection

PCB height

Max.120mm

add solder bar method

manual

wave height range

0-12mm

temperature control method

PID+SSR

number of wave

2*2

Whole machine control method

PLC+PC*2

preheat zone length

1800MM

flux auto feeding

Automatic

preheat zone number

4 preheating zone*2

助焊剂流量 Flux flow

5~100ml/min

direction

L-R/R-L

Spray method

Stepper motor+A-100 spray nozzle

preheat zone power

20KW*2

Flux recycle

tray recycle*2

preheat zone temperature

room temperature to 250℃ can be set

Power supply

3 phase 5 line 380V/3 phase 220V(option)

heating method

hot air

Total Start power

Max.15kw*2

total power： 25KW*2

Solder bar type

Lead-free

Normal working power

Approx.3-5kw*2

solder pot power

14.4kw*2

air pressure

0.4MPa~0.7MPa

Pot capacity

Approx.360kg*2

dimension

4700*2400*1730（L*W*H）

Solder pot material

Iron oven

weight

Approx.3000kg
