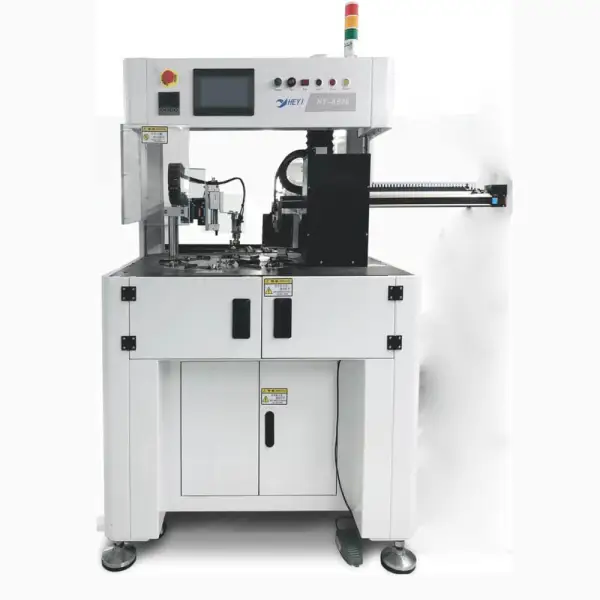

Automatic welding machine K920
DC Power line Automatic welding machine K920
dc power welding machine, power welding machine, welding machine, dc line welding machine, auto welding machine
The traditional manual operation mode of DC line of welding power product is facing the pressure of soaring cost and intensifying competition; the demand for replacing labor, reducing the defect rate and reducing the rework cost is increasingly urgent, which also brings new opportunities to the electronic equipment manufacturing industry; in line with the market demand, we have newly developed an automatic welding line machine to replace manual operation
产品参数Specification
型号Model | HY-K920 | |
供给电源Input Voltage | AC220V土10% 50/60HZ 4.5KW | |
外型尺寸(长x宽x高) Dimension | 900 x 1030 x 1550mm | |
重量Weight | 大约300KG About300KG | |
PCB允许面积 Available PCB size | 最小MIN | 30mm x 30mm |
最大MAX | 100mm x 50mm | |
PCB厚度范围PCB Thickness | ≤3mm | |
PCB上下净高Max PCB height | 上面s60mm,底面≤35mm Upper part≤60mm, lower part ≤35mm | |
工作高度Working height | 750±20mm | |
控制方式control mode | PLC+触摸屏PLC+ touch screen | |
导轨丝杆Guide rail/ screw rod | 台湾上银Hiwin | |
控制器controller | 三菱PLC Mitsubishi PLC | |
驱动drive | 雷赛步进 leadshine | |
操作界面Operation interface | 中文Chinese | |
焊接方式Welding method | 点焊Spot soldering | |
波峰高度Wave height | 0-7mm | |
喷嘴内径Nozzle | Φ 6 , 8mm (非标定制Custom-Tailor ) | |
锡炉容量Solder volume | 15kg | |
锡炉最高温度Max Solder temperature | ≤3500C | |
助焊剂容量Flux volume | 2L | |
Remark: specification subject to periodic review and change without notice
