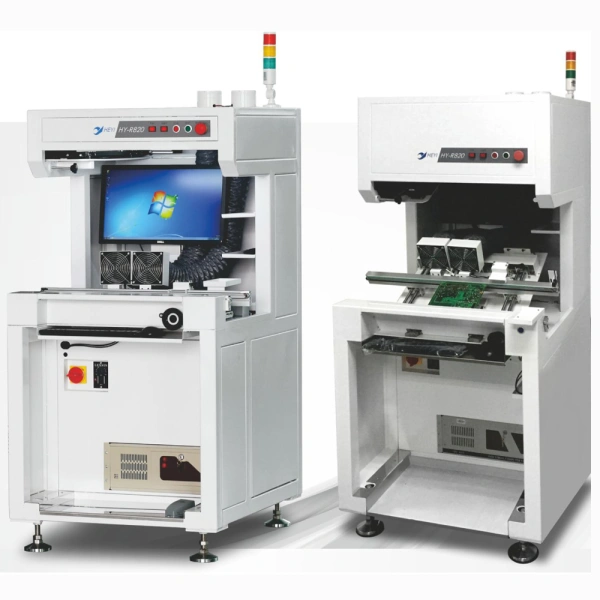

inline laser guiding and repairing station R820
laser station, RGB station, laser guiding and repairing station
■Pointing out the defective position by laser which according to the coordinate data received from AOI.
■No need for manual search ,artificial visual errors eliminated .
■Save 70% labor cost while improving the quality of products.
■Comprehensive detailed SPC analysis system, change the traditional mode of operation, greatly enhance the production efficiency.
型号Model | HY-R820 | |
供给电源input Voltage | AC220V±10% 50/60HZ 1KW | |
外型尺寸(长x宽x高) Dimension | 820x 1100 x 1600mm | |
重量Weight | About 300KG | |
Hardware
| Available PCB size | 最小 MIN 50mx 50mm 最大MAX: 400mm*350m 上顷30° Up 30°: 400mm*260m |
PCB Thickness | ≤6mm | |
Max PCB weight | ≤4KG(≥4KG选配optional) | |
Max PCB height | 上面Top≤35mm,底面bottom≤55m | |
PCB holding edge | ≥3.5mm | |
工作Working height | Transfer track from ground: 900±20mm/750±20mm | |
Conveyor speed | 750mm/s(MAX) | |
Conveyor direction | Optional: Right-Left | |
Conveyor control | Manual/Automatic | |
ion interlace | Chinese/English | |
Laser color | Green/Red(Optional) | |
Monitor | 22 inch color monitor | |
Programming | Support general parts library and CAD data input | |
Off line programming | CAD Support (CAD) | |
Others | According to the coordinate data supported by AOI, using laser to point out the error. Also support CAD data input. | |
Special feature | CAD easy programming | |
Remark: specification subject to periodic review and change without notice
