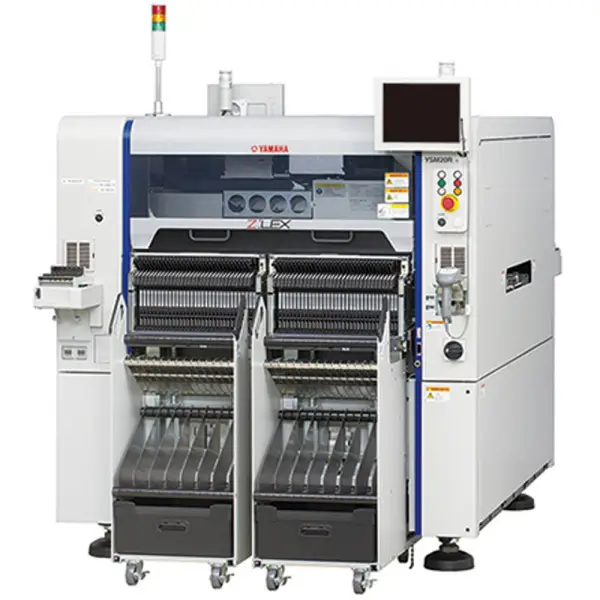

Yamaha YSM20R high speed modular smt chip mounter pick and placer

YSM20R

Applicable PCB

Dual stage (only for X axis 2-beam specs.)

1 PCB conveyance : L810 x W490 to L50 x W50

2 PCB conveyance : L380 x W490 to L50 x W50

Single lane

L810 x W490 to L50 x W50

Dual lane (only for X axis 2-beam specs.)

L810 x W230 to L50 x W50

Mounting capability

X axis 2-beam : High-speed multi-purpose

(HM: High-speed Multi) head x 2

90,000 CPH (under optimum conditions as defined by Yamaha Motor)

Mounting accuracy

+/-0.035mm (+/-0.025mm) Cpk≧1.0 (3σ)

(Under optimum conditions as defined by Yamaha Motor when standard evaluation materials are used)

Applicable components

High-speed multi-purpose (HM: High-speed Multi) head x 2 : 03015 to 45 x 45mm L100mm, Height 15mm or less

Note : Multi-camera (option) may be needed in some cases due to part height and part size.

Odd-shaped components (FM: Flexible Multi) head : 03015 to 55 x 55mm L100mm, Height 28mm or less

Number of component types

Fixed plate : Max.140 types (conversion for 8mm tape feeder)

Feeder carriage exchange : Max.128 types (conversion for 8mm tape feeder)

Trays for 30 types (fixed) and 10 types (carriage)

Power supply

3-Phase AC 200/208/220/240/380/400/416V +/-10% 50/60Hz

Air supply source

0.45MPa or more, in clean, dry state

External dimension (excluding projections)

L 1,374 x W 1,857 x H1,445mm

Weight

Approx. 2,050 kg
