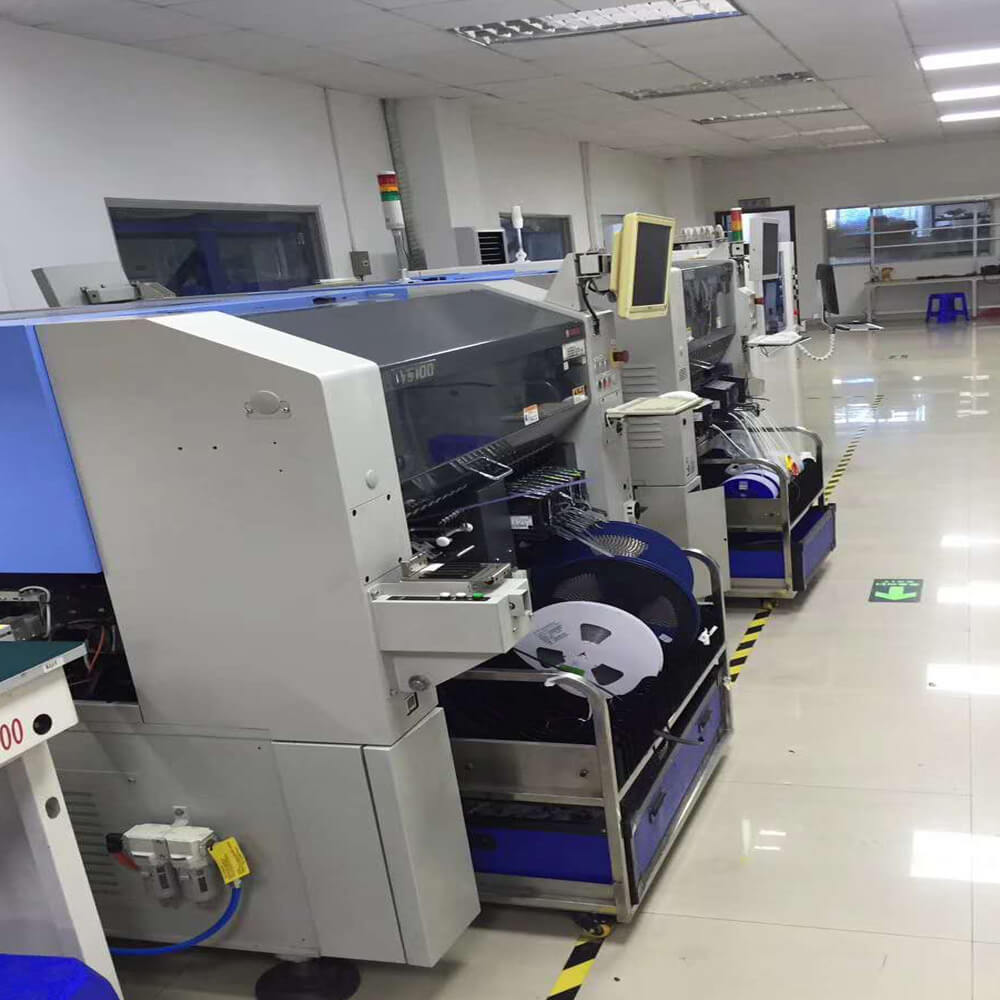

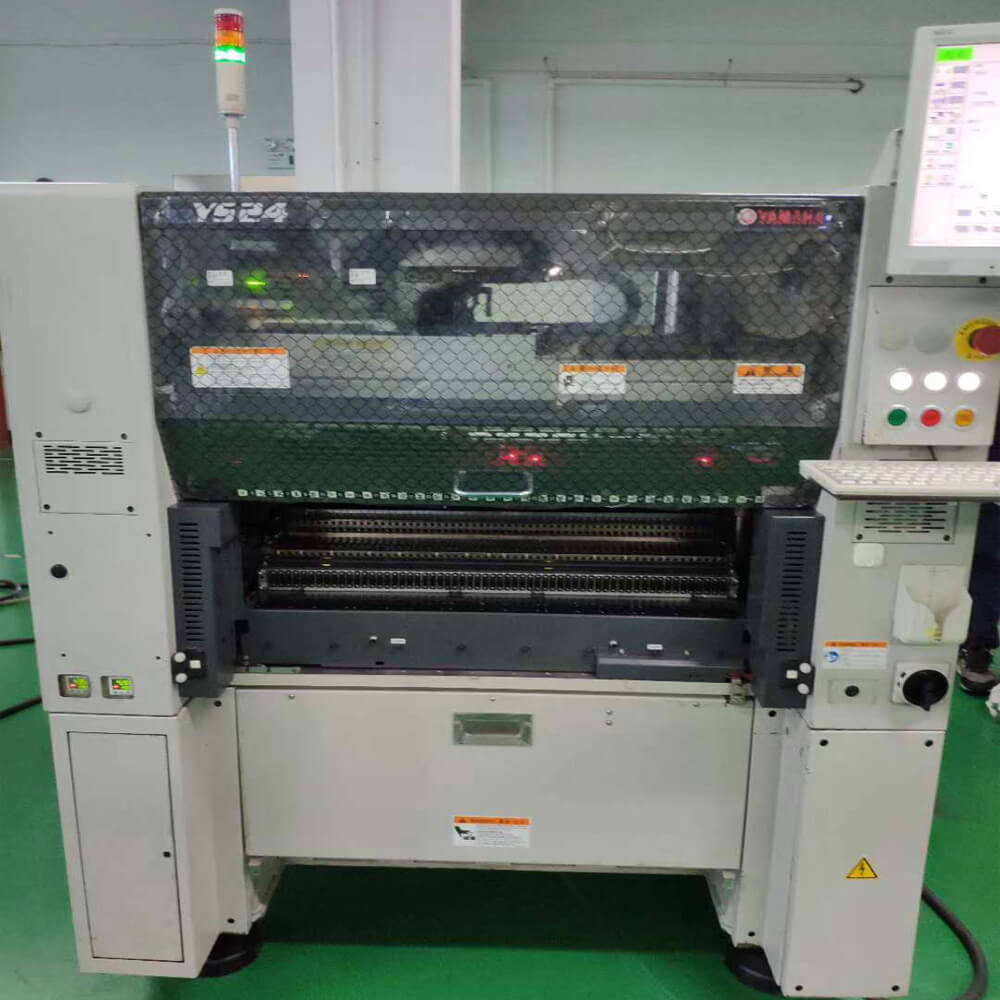

Yamaha YS24 smt pick and place machine

Model

YSM10

YS12

YS24

Applicable PCB

L 510 x W 460mm - L 50 x W 50mm

L510x~W460mm to L50x~W50mm

L50mm x W50mm to L700mm x W460mm

Mounting Capability

46,000CPH

36,000CPH

72,000CPH

Mounting Accuracy

±0.035 mm (±0.025 mm) Cpk≧1.0 (3σ)

+/-0.05mm/CHIP

+/-0.05mm (μ + 3σ), +/-0.03mm (3σ)

Number of component types

15 types (sATS 15 equipment, Max, JEDEC)

120 types(Max, 8mm tape reel conversion)

120 types (Max./8mm wide tape reel conversion)

Applicable components

03015-W 55 x L 100mm, H: 15mm or less

0402(Metric base) to □32*mm components

0402 to 32x32mm max (Height 6.5mm or less)

External Dimensions

L 1,254 x W 1,440 x H 1,445mm

L 1,254 x W 1,440 x H 1,445mm

L1,254x W1,687x H1,445mm
