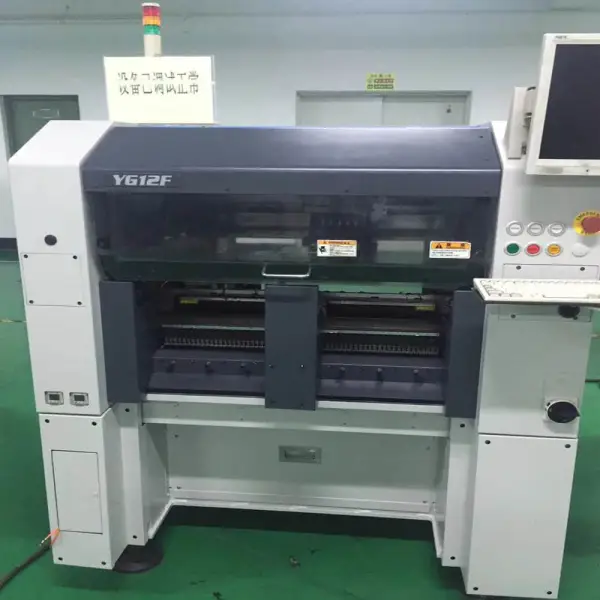

Yamaha YG12F pick and place machine SMD chip shooter with tray stacker for sale
Product specification:
1.Model : YG12F
2.Object substrate :L50 * W50mm ~ L510 *W460mm
(W360mm when assembling ATS15 / MT) "
3.Mounting accuracy: Absolute accuracy (μ + 3σ): ± 0.05mm / CHIP
4.Mounting speed:20,000 CPH (the best condition )/0.18sec/chip
13000CPH ,at IPC9850 condition
5.Component supply method: Tape and Reel
6.Component type Belt packing: 107 kinds (maximum), 48 kinds (standard)
(converted into 8mm tape)
7.Disc Packing: 15 (max) (converted to JEDEC tray)
8.Applicable element: 0402 to 45 * 100 mm Ball electrode element * 32 mm or more,need to install a special nozzle assembly
9.Mounted height :Under 15mm
10.Power Specifications Three-phase AC 200/208/220/240/380/400/416 V ± 10%
11.Air Supply : 0.55MPa or more, at clean and dry condition
12.Dimensions L1, 254 *W1,440 *H1,445mm: (only the main body)
L1, 254 * W1,755 *H1,475mm: (when ATS15 is assembled) (except for protrusions)
13.Main body weight :About 1,250kg: (only the main body)
About 1,370kg: (when equipped with ATS15)
