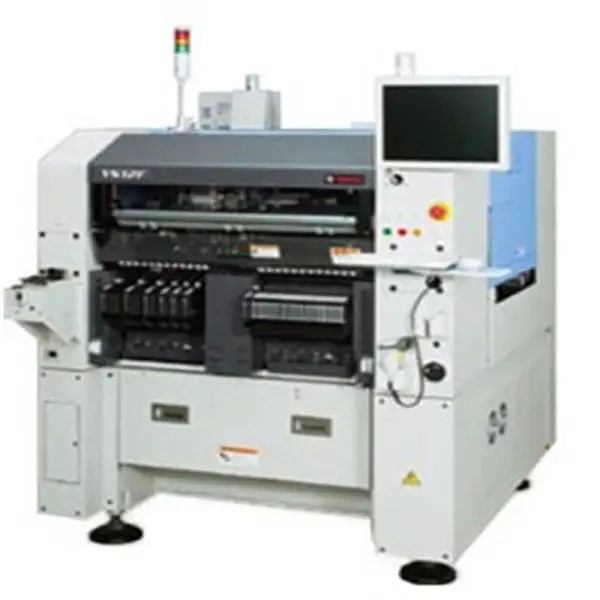

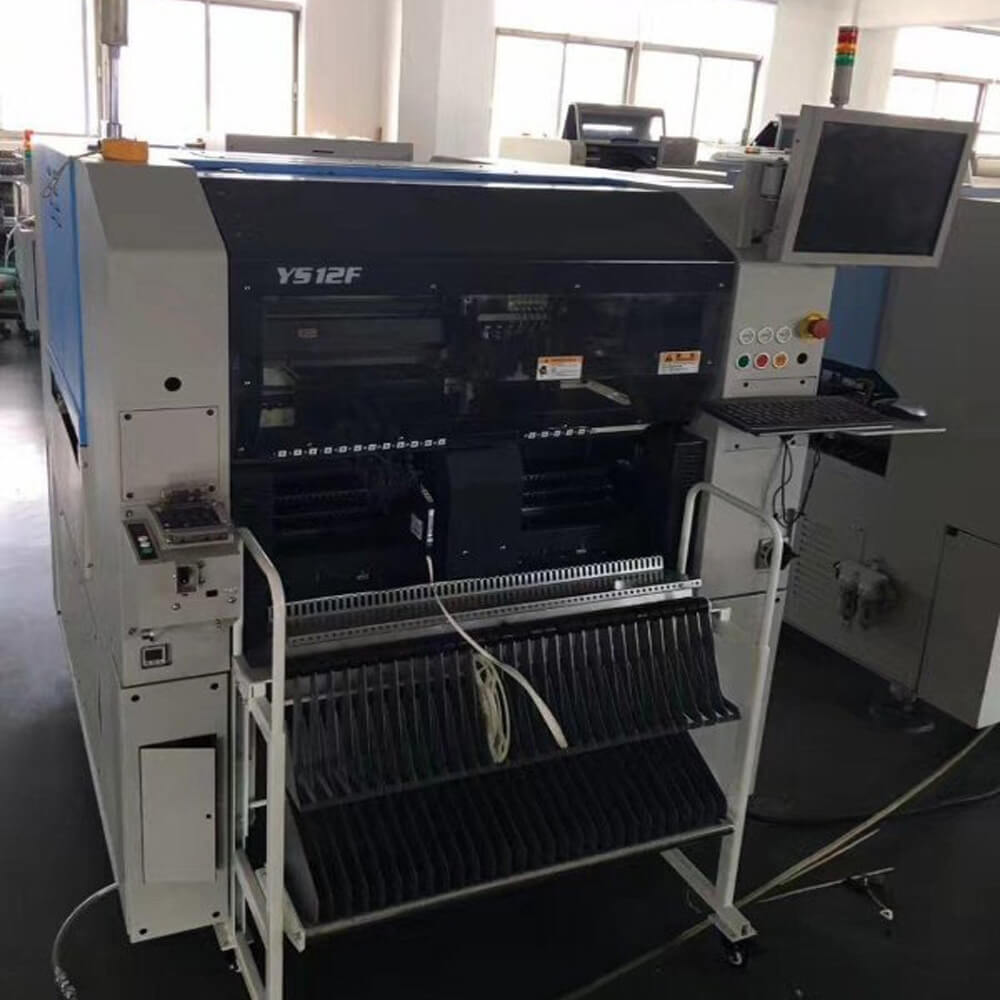

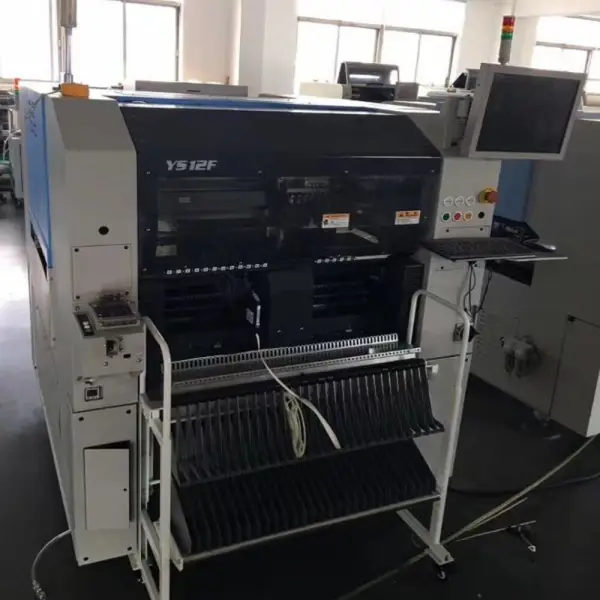

Yamaha YS12F chip pick and place mounter in China

Model

YS12F

Applicable PCB

L510mm x W460mm to L50mm x W50mm

Mounting accuracy

Absolute accuracy(μ+3σ) +/-0.05mm/CHIP

Mounting tact

20,000CPH(under our optimum condition)

Component supply

Tape reel, tray

Number of component types

Tape package components: 106 types(Max/8mm tape reel conversion)Tray package conversion: 15 types(Max/JEDEC tray conversion)

Applicable components

0402 to 45x100mm, including ball type electrode components *32x32mm or more needs special nozzle set

Applicable height

15mm

Power supply

3-Phase AC 200/208/220/240/380/400/416 V +/-10%

Air supply source

0.45MPa

External dimension

L1,254 x W1,755 x H1,475mm (when ATS15 mounted; not include the projection)

Weight

Approx. 1,370kg (when ATS15 mounted)
