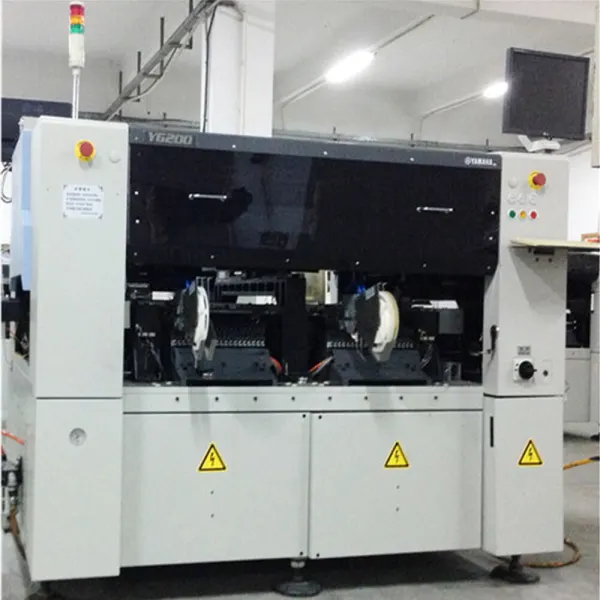

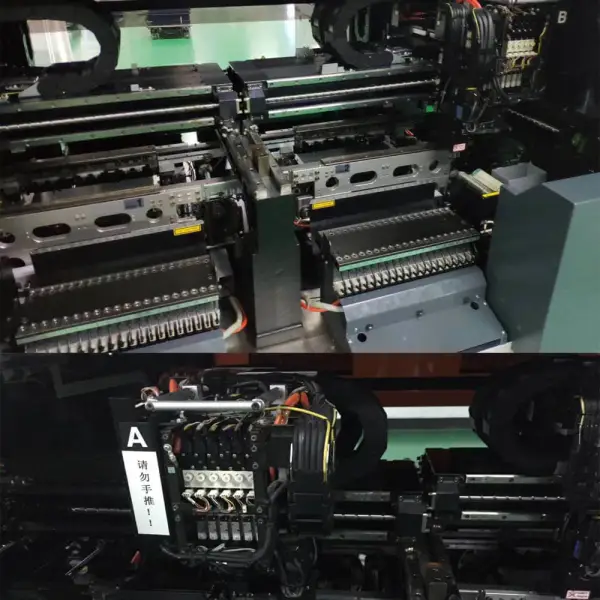

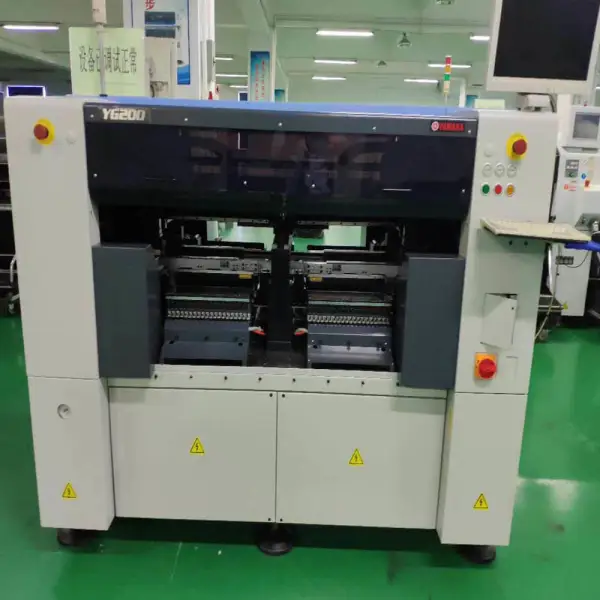

Yamaha YG200 placement machine price

Yamaha YG200 placement machine price

Key Specifications/Special Features:

High speed chip shooter YG200 (Model ： KGT-100)
Applicable PCB: L330×W250mm to L50×W50mm
Through-put (Optimum): 45,000CPH（0.08sec/CHIP equivalent)
Mounting accuracy: (Yamaha's standard components)
Absolute accuracy (μ+3σ): +/-0.05mm/CHIP, repeatability（3σ）: +/-0.03mm/CHIP

Applicable components: 0402 (Metric base）to 14*mm components
Height of components which can be mounted: 6.5mm or less
Allowable height on PCB surface before transport 6.5mm or less
Number of component types: 80 types（Max, 8mm tape reel conversion)

Power supply 3-phase AC 200/208/220/240/380/400/416V +/-10%
50/60HzAir supply source 0.55MPa or more, in clean, dry states

External dimension, 950×W1, 408（End of cover)×H1, 450mm （cover top) L1, 950×W1, 608

（End of guide for feeder carriage)×H1, 450mm （cover top)

Weight approx. 2080kg

Keywords:

ys12,ys24,yg12,yg100,yg200,ys12f, ysm10,YSM 20,YSM40, Second-hand M20, second hand M10, Used pick and place machine, SMD MACHINE, Yamaha pick and place machine, Yamaha M10,M10,Yamaha placement machine, Yamaha chip mounter,Yamaha chip shooter, Yamaha smt machine,Yamaha smd machine, smt machine, smt pick and place machine, smd pick and place machine, surface mount technology, second-hand M10, second hand Panasonic pick and place machine, second-handPanasonic chip mounter, used Panasonic machine, used chip mounter...
