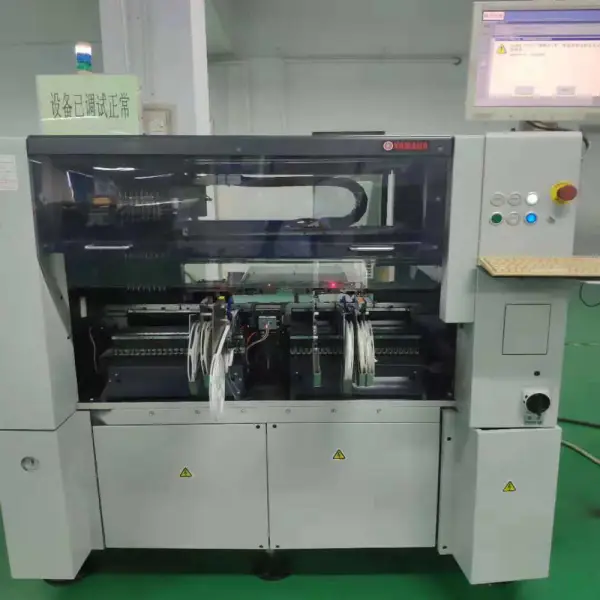

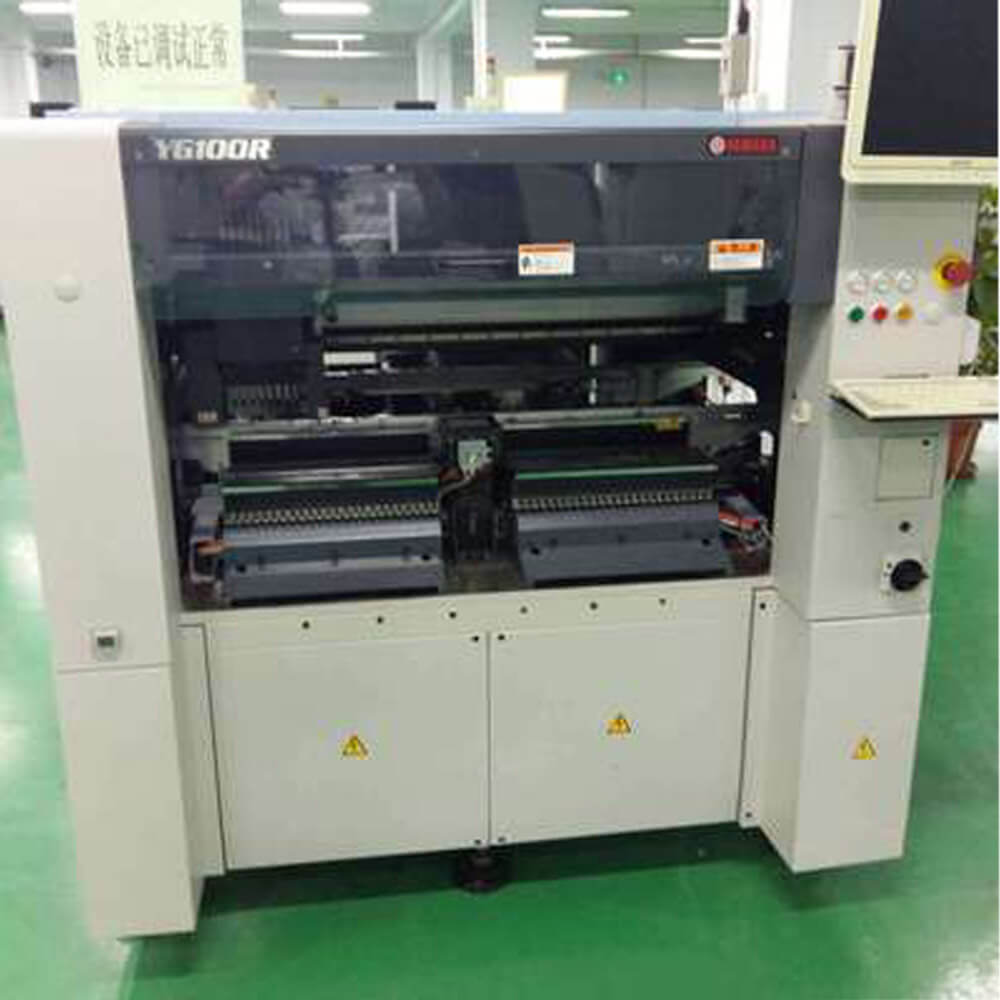

Yamaha YG100 second-hand smd chip shooter machine
Feature :

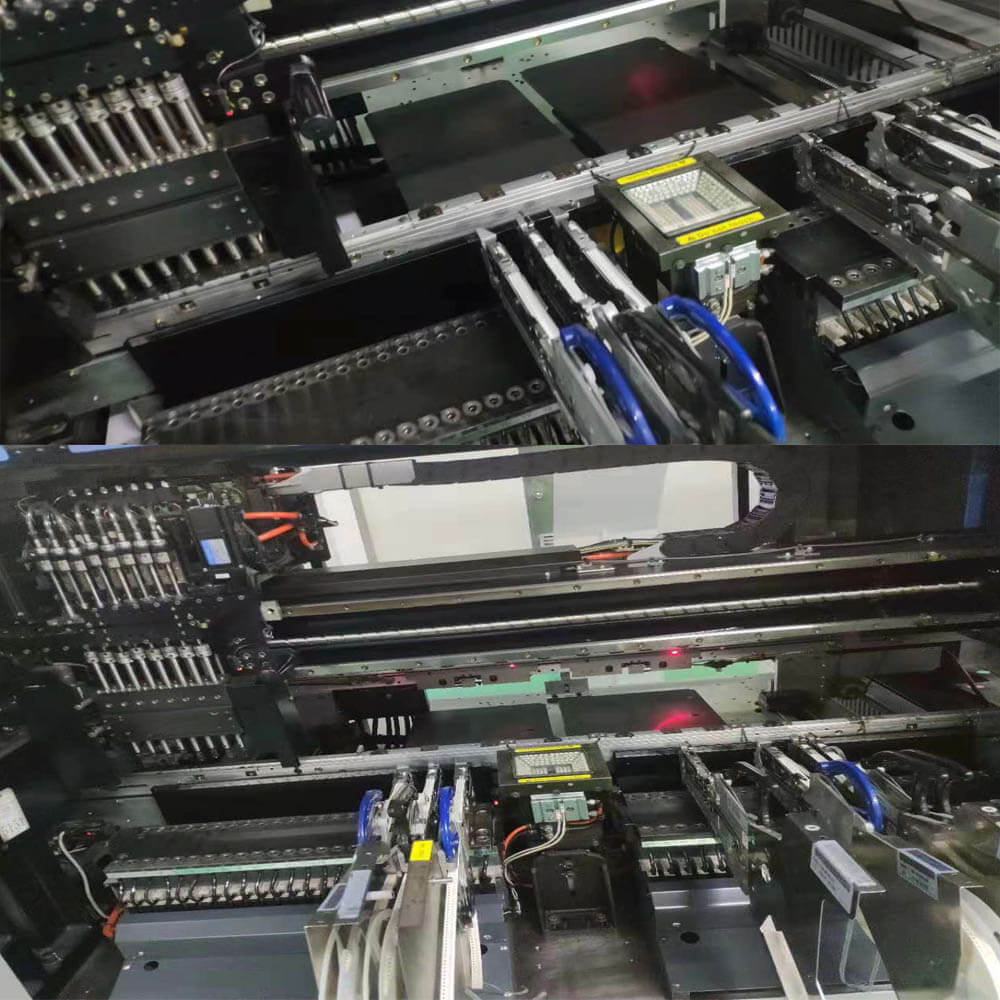

Yamaha YG100 Machine is Yamaha company specifically for high-speed universal machine output of a high efficiency, high-performance, high-precision Mounter, YG100 can simultaneously mount different types of special-shaped components, Machine Head all using Yamaha Company's latest design of the head structure, All suctionnozzle up and down control all by electric motor control machine mount accuracy than previous memory has a great improvement
YAMAHA YG100 high-speed mounting chip, universal type, high-precision, high-speed modular mounter, high rigidity dual drive structure,
High-performance servo system, high-resolution digital multi-vision camera, original multiple precision calibration system.
Parameter :
|
PCB size |
M - Type |
L460 x W330~L50 x W50mm / t = 0.4~3.0mm |
|
|
L - Type |
L460 x W440~L50 x W50mm / t = 0.4~3.0mm |
|
Mounting speed |
24000CPH Chip:0.15 sec/Accessory 32mm QFP Standard: 1.7 sec/Accessory |
|
|
IPC 9850 |
17700 CPH |
|
|
Mounting accuracy |
(Absolute precision) Chip:±0.05mm (3σ)/QFP:±0.05mm (3σ) |
|
|
Equipment Parts Height |
15mm |
|
|
Power supply |
3-phase AC 416~200 v,v±10%,50/60hz,4.8kva |
|
|
Dimension |
1,650 (w) x 1,562 (W) x 1,850 (H) mm |
|
|
Weight |
1,630KG |
|
