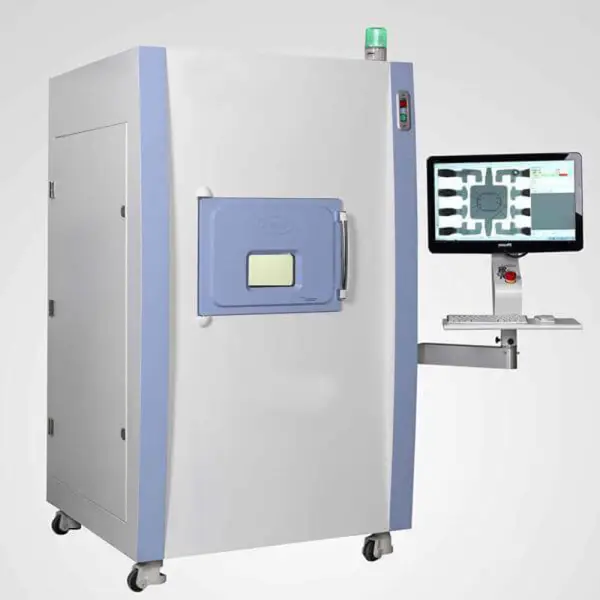

SMD PCB quality X-Ray inspection machine
keywords: SMD machine, pcb inspection machine, X-Ray machine, X-ray inspection machine, inspection machine, smd inspection machine

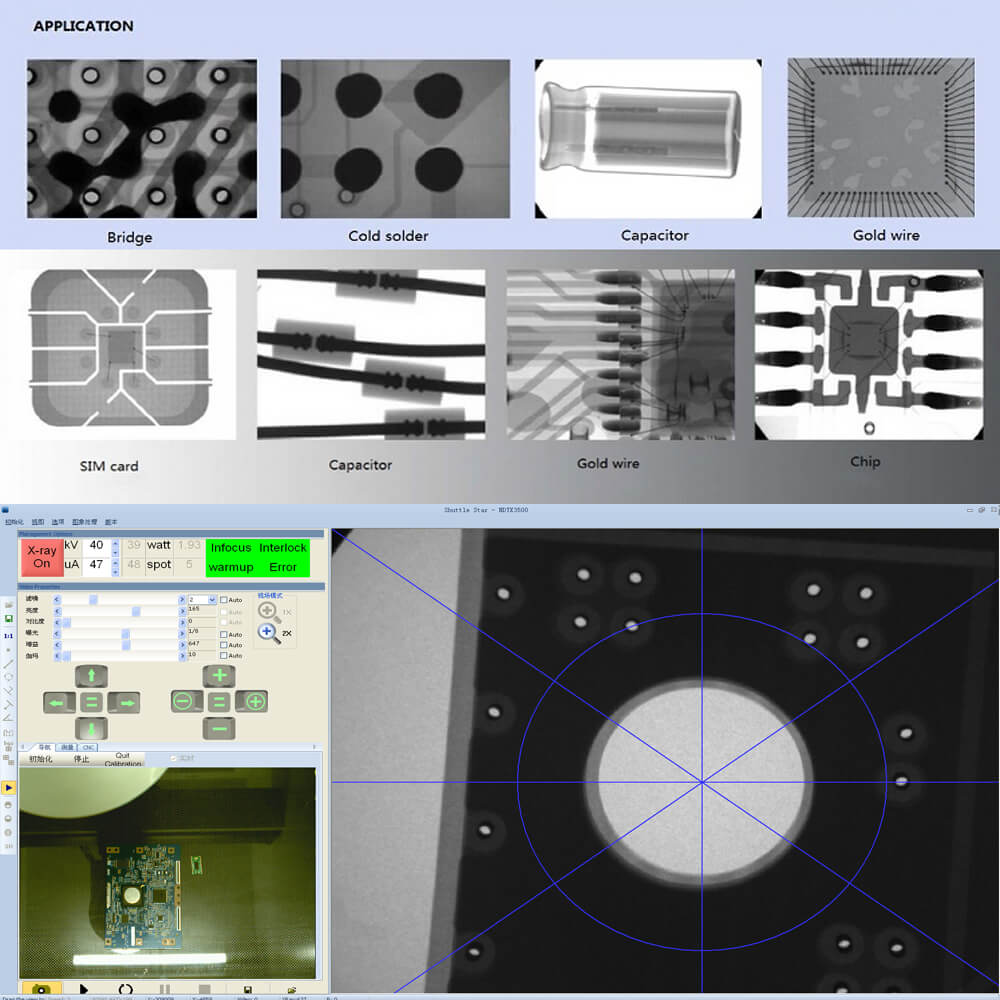

Applications:
1. Semiconductor: Inner structure of IC, FC, CSP package inspection
2. Aluminum casting relates to cars, bubble &fissure of rubber and resin products inspection
3. Short & open circuit in BGA package, bubble area in BGA inspection and auto-judgment
4. Aerospace and military, aerofoil, bullet etc.
5. Troche in medicine, FRP in chemical products, resin, ceramics.
6. Lithium battery, electronic components (capacitor, resistor, diode & audion, led etc.) inspection
Features:
1. Imported Micro X-Ray tube with original packaging(100/130Kv closed tube), highly-sensitive image intensifier, 1.3 million pixels industrial
digital CCD camera, able to detect item <5μm,display clear image.
2. Adjustable high power geometric & system magnification, easy to find out tiny defect with high detecting speed.
3. System navigation chart, navigating rapidly and positioning accurately.
4. Observe object at ±70°, detecting from particular angle, easy to detecting inner structure
5.Five axis moving coordinately, with function of CNC auto-detects in quantity, suitable for detecting in large quantity with high accuracy.
6. 23" digital image-special LCD monitor, displaying large and high definition image.
7. Multi-function software system, free maintenance and update for life.
8. Complete seal lead cabinet, comply with the provisions of the international and domestic X-ray safety standards.
Specification:
|
model |
LANGKE-3500A (X-ray 100KV) |
|
Display |
22" LCD monitor |
|
Image area |
600*415 mm |
|
Image Resolution |
110 LP/CM |
|
CCD Pixel |
1.3 million |
|
Camera Spec |
Image Intensifier+Digital CCD 25 frames/m |
|
Magnification |
120(Geometric )/1200(System) |
|
X-ray Output Voltage |
90 ~ 130 KV |
|
Field of view |
0 ~ 70℃ tilt, 360℃ rotate |
|
Focal Spot |
5 um |
|
X-Ray Tube Type |
Closed tube |
|
Power Supply |
Single phase AC 110~230V/50~60HZ |
|
Weight |
1100KG |
|
Testable Weight |
sample ＜5 ㎏ |
|
Work Table |
X / Y / Z / Q Axis |
|
Manual Operation |
by keyboard/mouse/navigation positioning |
|
CPU |
Intel Pentium |
|
Memory |
2GB |
|
Computer System |
Win7 |
|
Input |
Keyboard |
|
Report Output |
Manual/auto save tested doc |
|
video Function |
Standard |
|

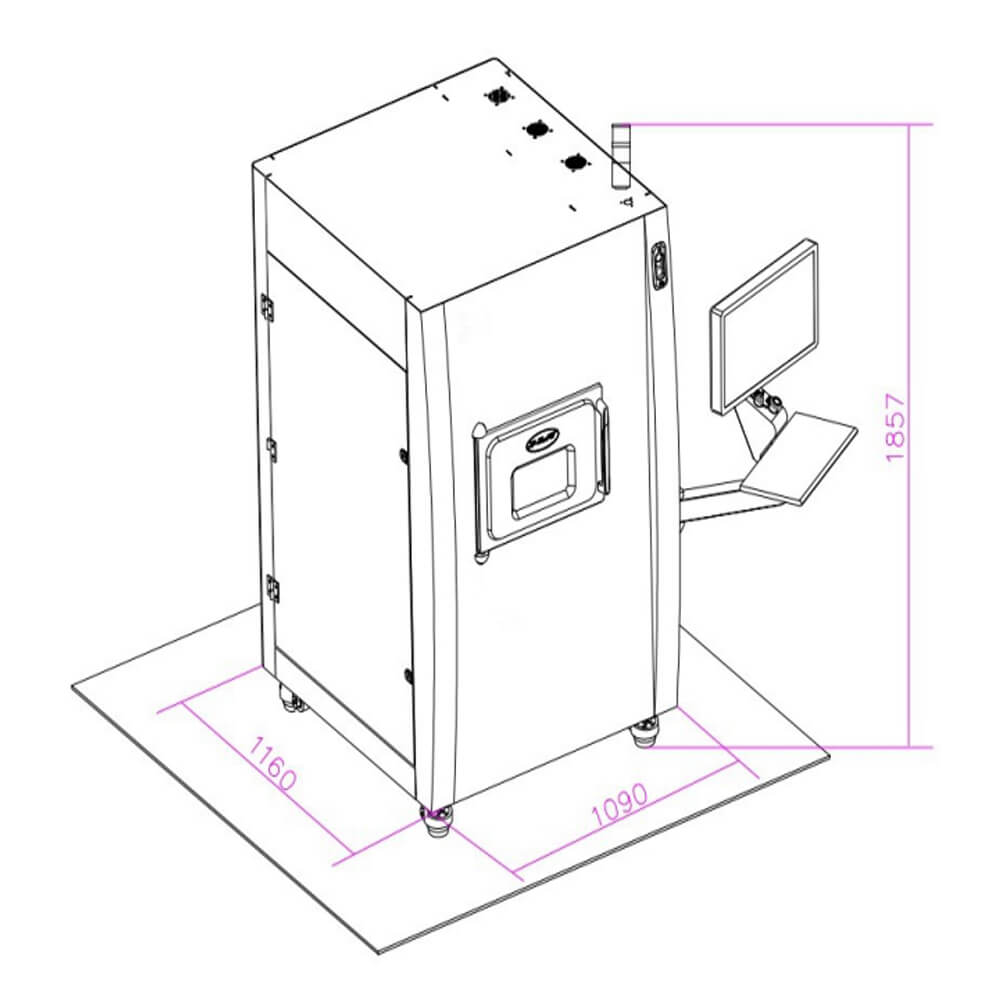

Dimension |
1160*1090*1857 mm |
|
Navigation |
Automatic scanning navigation |
|
3D View |
Imitation |
|
Void, BGA, Distance Inspection |
Auto-inspect function settable |
|
BGA Auto Inspection |
set the counting of BGA inspection,measurement and bubble |
|
Inspection Area |
X / Y plane direction |
|
Special Isolation |
Non |
|
Temperature Humidity |
0-40℃ 0-90% |
|
Suspended matter |
non-conductivity dust |

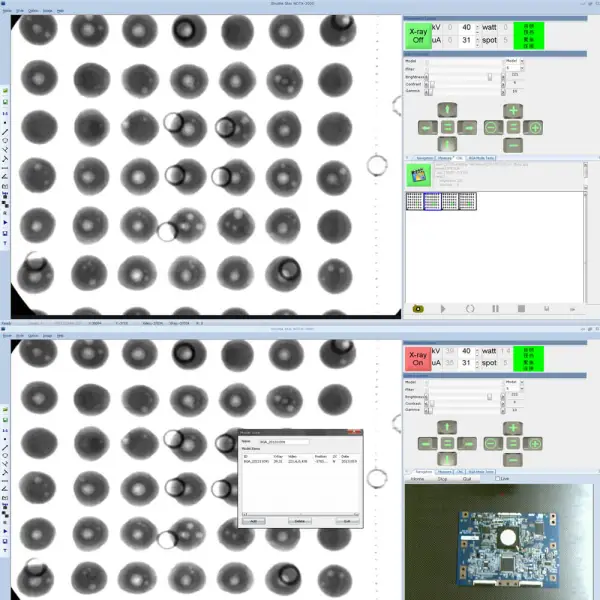

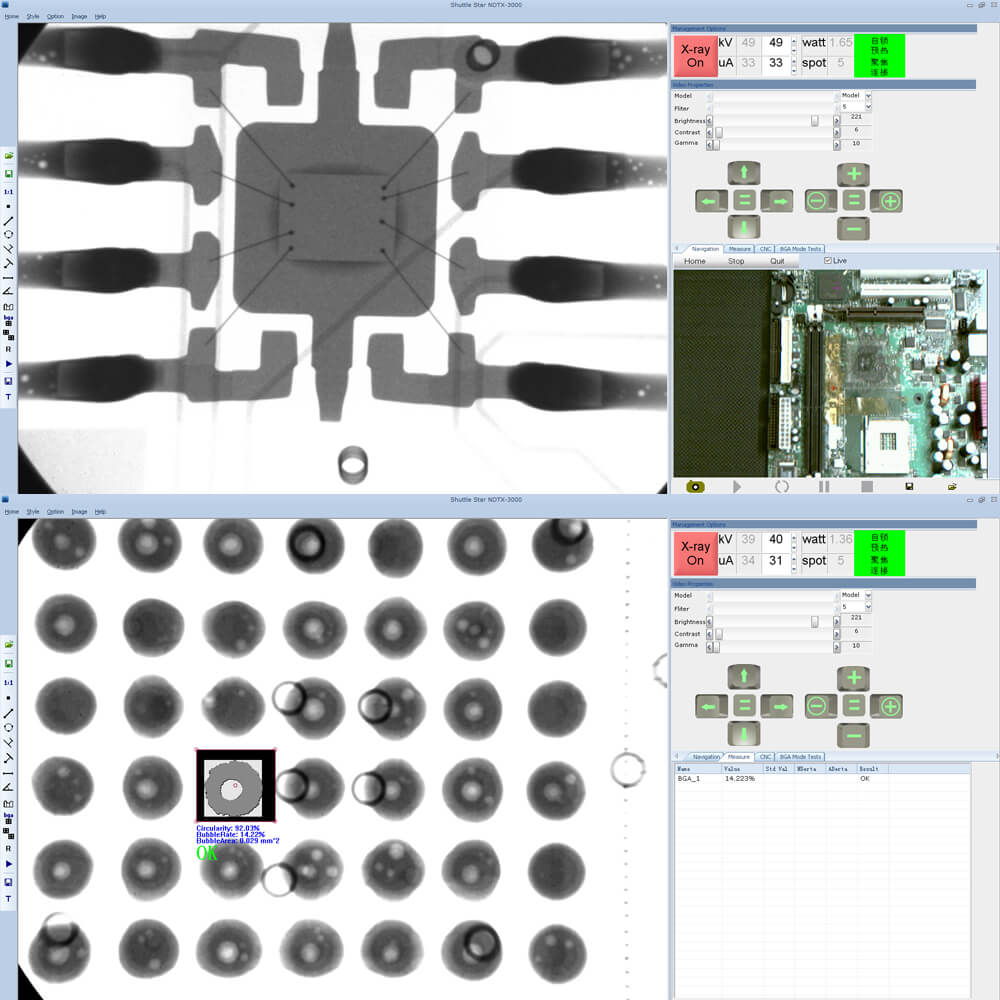

Inspection Image:
About machine Package:
Welcome to contact me for more detailed info.
