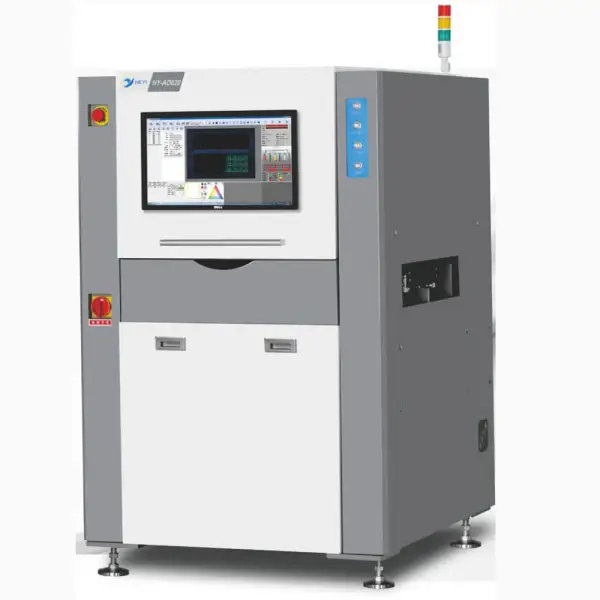

Double sides (UP and Down) DIP testing AOI machine AD620
aoi machine, DIP aoi, DIP aoi machine, online AOI, double sides dip aoi machine
Features
■It is mainly applied to electronic products in the wave oven. It can automatically judge and detect the reverse, wrong and missing insertion of components and soldering according.
■By using two sets of high-speed cameras and the latest developed test and calculation software, the detection rate can be improved and the false alarm rate can be reduced. The detection rate can be as high as 99. 99%.
Specification
|
型号Model |
HY-AD620 |
|
|
供给电源input Voltage |
AC220V±10% 50/60HZ 1.5KW |
|
|
外型尺寸(长x宽x高) Dimension |
1030x 1200 x 1600mm |
|
|
重量Weight |
About 800KG |
|
|
影像识别部分 Image management |
Light source
|
Upper part: digital flat light Lower part: LED RGB Ring Light Source
|
|
Image recognition
|
Outline recognize, color and grey analysis, image comparison
|
|
|
Camera
|
Upper part: imported customized 1200w Lower part: High grade imported digital color CCD camera 5m pixels |
|
|
Resolution for X-Y ais
|
15/20um可选 15/20um optional |
|
|
Max. Warpage
|
2% of PCB‘s diagonal or< 5mm
|
|
|
Inspection window size
|
FOV 30x 20mm |
|
|
min available component size |
0201/01005 |
|
|
Hardware
|
Available PCB size |
最小 MIN 50mx 50mm 最大上部MAX upper part: 350mm*300m 最大下部MAX lower part: 450mm*400m |
|
PCB Thickness
|
≤6mm |
|
|
Max PCB weight
|
≤4KG |
|
|
Max PCB height
|
上面Top≤60mm,底面bottom≤35m |
|
|
PCB holding edge |
≥3.5mm |
|
|
Working height
|
Transfer track from ground: 900±20mm |
|
|
Conveyor speed |
750mm/s(MAX) |
|
|
Conveyor direction
|
standard: Left-Right, Optional: Right-Left
|
|
|
Conveyor control |
Automatic |
|
|
软件 Software |
Operation interlace |
Chinese/English
|
|
OS |
Windows 7 |
|
|
Monitor |
22 inch color monitor |
|
|
Inspection item
|
Insufficient soldering fillet and wetting, open/short contamination etc.
|
|
|
Components: missing, shifting, skewing, thumb up, side up, turn over, wrong direction (OCV), damage, reversing, soak solder, glue squeeze-out etc.
|
||
|
Soldering: insufficient soldering, fake soldering, Blow hole, bridge between solder joint side，contamination, etc.
|
||
|
NG indication
|
OK/NG indication, PCB ID, status, component name, status and failure picture, defective location |
|
|
Programming |
Support general parts library and CAD data input |
|
|
Analysis output |
Auto create SPC and data |
|
|
Off line programming |
CAD Support (CAD) |
|
Remark: specification subject to periodic review and change without notice
