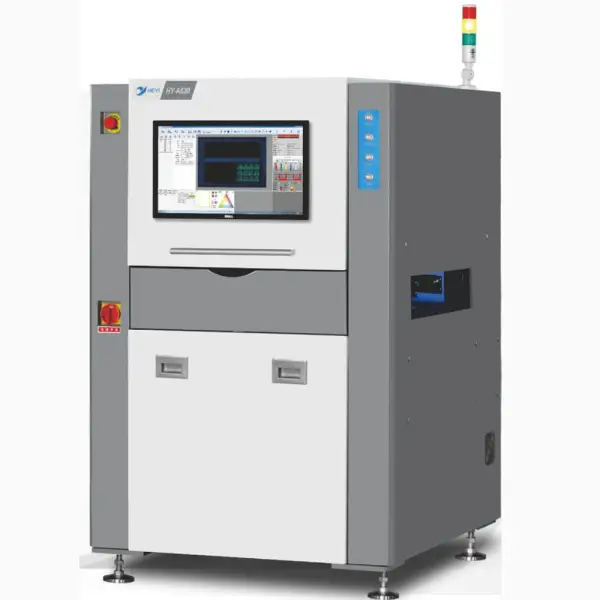

DIP SMT online AOI machine Model A620
keywords:dip aoi, smt aoi, aoi machine, online aoi machine, smt online aoi, dip online aoi machine
Features:
■Analysising while Detection, at a speed of 0. 18S/FOV.
■Comprehensive and detailed SPC analysis system, centralized management to reduce involve labour.
■RGB and White LED illumination, 6um high precision optical resolution.
■Able to Detect component 01005，the detection performance is outstanding while the detection rate is as high as 99.99%
Specification:
|
型号Model |
HY-A620 |
|
|
供给电源input Voltage |
AC220V±10% 50/60HZ 1.5KW |
|
|
外型尺寸(长x宽x高) Dimension |
1030x 1100 x 1600mm |
|
|
Weight |
About 780KG |
|
|
Image management
|
t source
|
LED RGB Ring Light Source
|
|
Image recognition
|
Outline recognize, color and grey analysis, image comparison
|
|
|
Camera
|
High grade imported digital color CCD camera 5m pixels
|
|
|
Resolution for X-Y ais
|
7/10/15/20um optional
|
|
|
Max. Warpage
|
2% of PCB‘s diagonal or< 5mm
|
|
|
Inspection window size
|
FOV 30x 20mm |
|
|
min available component size |
0201/01005 |
|
|
Hardware
|
Available PCB size |
MIN 50mx 50mm MAX: 450mm*400m |
|
PCB Thickness
|
≤6mm |
|
|
Max PCB weight
|
≤4KG |
|
|
Max PCB height
|
上面Top≤35mm,底面bottom≤55m |
|
|
PCB holding edge |
≥3.5mm |
|
|
Working height
|
Transfer track from ground: 900±20mm/750±20mm |
|
|
Conveyor speed
|
750mm/s(MAX) |
|
|
Conveyor direction
|
Optional: Right-Left
|
|
|
Conveyor control |
Automatic |
|
|
Software
|
Operation interlace |
Chinese/English
|
|
Monitor |
22 inch color monitor |
|
|
Inspection item
|
Insufficient soldering fillet and wetting, open/short contamination etc.
|
|
|
Components: missing, shifting, skewing, thumb up, side up, turn over, wrong direction (OCV), damage, reversing, soak solder, glue squeeze-out etc.
|
||
|
Soldering: insufficient soldering, fake soldering, Blow hole, bridge between solder joint side，contamination, etc.
|
||
|
NG indication
|
OK/NG indication, PCB ID, status, component name, status and failure picture, defective location
|
|
|
Programming |
Support general parts library and CAD data input |
|
|
Analysis output |
Auto create SPC and data |
|
|
Off line programming |
CAD Support (CAD) |
|
|
Special feature |
For precise defective marking(optional)(internal or external ink jet marking)
|
|
Remark: specification subject to periodic review and change without notice
