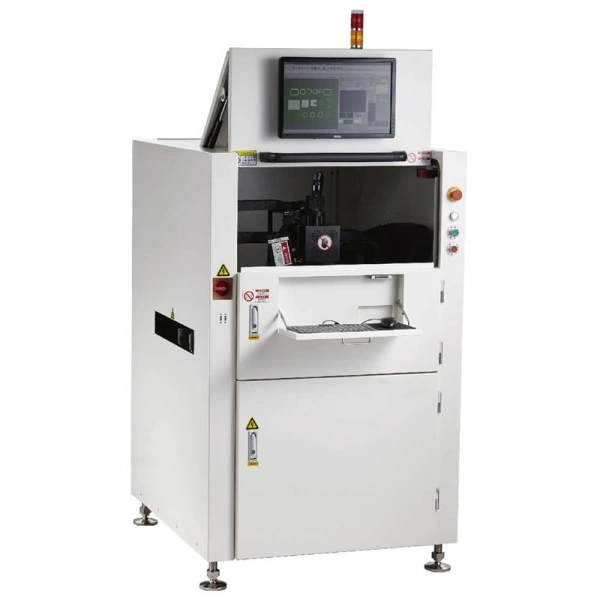

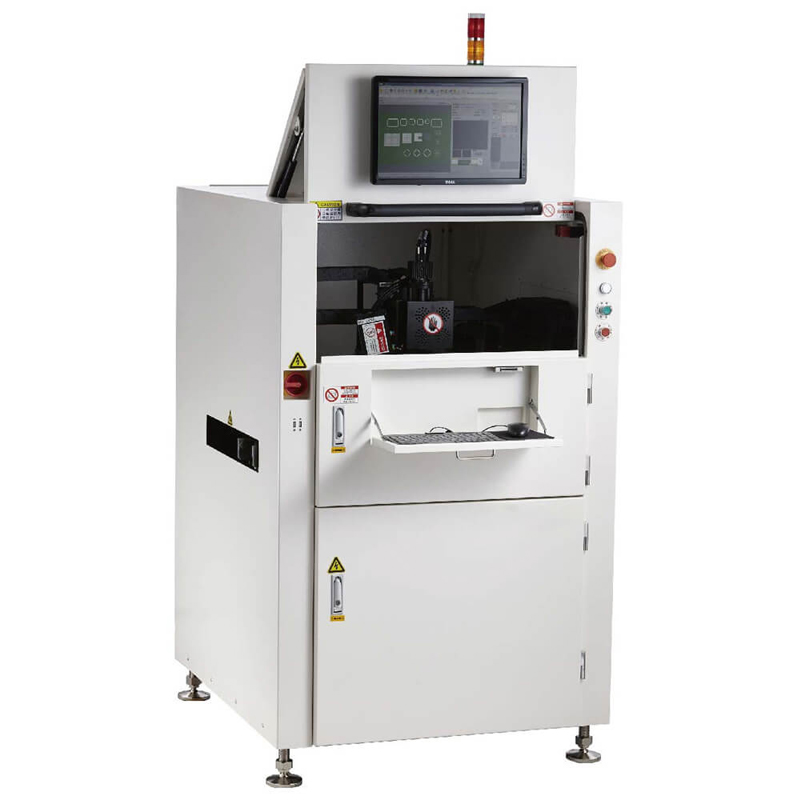

450*450mm 3D online Solder paste inspection machine

Parameters

Product Description

Single Track

Dual Track

Series

S450

D450

Measurement Principle

3D white light PSLM PMP (Programmable Spatial Light Modulation,commonly,  known as moire fringe technology)

Measurements

Volume, acreage, height, X Y offset, shape

Defects detected

Missing paste＆bridging,insufficient paste,excessive paste,sharp deformity,offset,surface contamination

Camera Pixel

5M, 4M/10M/12M as option

5M (10M/12 as option)

Lens Types

Telephoto lens

Lens Resolution

5M：16.5μm，18μm/13.5μm as option

10M:12μm，10μm/8μm as option

12M:10μm，8μm/6μm as option

FOV Size

5M:42*33.5mm,46.1*36.7mm/33.3*26.5mm

10M:48*31.5mm,40*26mm/32*21mm

12M:48*36mm,40*30mm/32*24mm/24*18mm

Accuracy

Mechanical accuracy:X YResolution:1 μm; Height:0.37μm

Repeatability

Height:≤1μm（3 Sigma）;volume/acreage:＜1％（3 Sigma）(calibration target)

Gage R&R

＜10％

FOV Speed

0.35s/FOV

Quantity of Inspection Head

Twin-Heads(single or three heads asoption)

Red Green Blue/RGB three Colas Option Light Source

Standard configuration

Mark-point Detection Time

0.5sec/piece

Compensation Plate Bending of Real-time Lift in Z-axis

Standard configuration

Maximun Measuring Height

±550μm(±1200μm as option)

Maximun Measuring Height of PCB Warp

±5mm

Maximun Pad Spacing

100μm（pad height of 150μm as the reference）

Smallest Measuring Size

100μm

Maximum Loading PCB Size

450*450mm(630*550/90*550/1200*550/1500*550mm as option)

Dual-track model:50*50—450*300mm(630*330mm as option)

Single track model:50*50—450*590mm

Thickness of the PCB

0.4-7mm

Clearance

Top 30mm,Bottom 40mm

Top 40mm,Bottom 40mm

Board Edge Distance

3mm,multifunctional clip edge as option

Flixble or Fixed Orbit Setting

Front orbit(back orbit as option)

Track1fixed,track2,3,4 flexible;the distance between track 1and track 4 is 686mm,and the maximum distance between track 1and track 2,track 1 and track2,track 3 and track 4 are 300mm

PCB Transfer Direction

Left to right or right to left

Left to right or right to left,set before delivery

Orbit Width Adjustment

Manual,automatic as option

SPC Statistics

Histogram; Xbar-R Chart; Xbar-S Chart;  CP&CPK, ％Gage Repartability Data;SPI Daily/Weekly/Monthly Reports

Gerber&CAD Date Input

Support Gerber format(274x,274d);Manual Teach model;CAD X/Y,Part NO.,Package Type input

Computer

configuration

CPU

Intel 4-core

Intel 6-core(Intel 8-core as option)

RAM

24G(32G/48G as option)

32G(48G/64G as option)

GPU

2G discrete graphics

2G discrete graphics(6G /8G as option)

Hard Disk

1T

1T

DVD+RW

Standard configuration

Operating

Windows 7 Professional(64 bit)

Dimension and Weight

1000x1000x1525mm;830KG

1000x1330x1530;1200KGS

Power

220V、10A

Air Pressure

4∽6Bar

Power(Start/normal)

Normal operation:2kw/Start:2.5kw

Loading Requirements of the Floor

800kg/㎡

Options

Multifunctional clip edge,1D/2D Barcode scanner,Badmark function,print closed-loop control,out-line programming software,maintenance was optionkstations,coaxial Mark point camera,UPS continuous power supply
