Technical Parameters

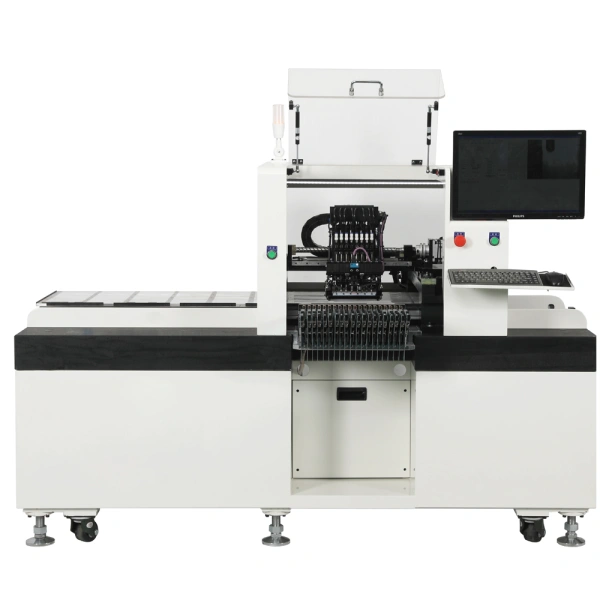

Model | KX-530SV | |
Alignment | Flying Vision Alignment System | |
Number of Spindles | 8 Spindles x 1 Gantry | |
Rated Placement Speed | Vision Alignment | LED 2835: 45,000 CPH (Optimum) |
Placement Accuracy | ±0.05mm (Based on the standard chips) | |
Mechanical Precision | ±0.02mm | |
Component Range | Vision Alignment | 0603(inch)~5050~7474(mm), high-power LED, IC<10mm |
Max Height | H=10mm (can handle max. 16mm without vision alignment) | |
Board Dimension(mm) | Maximum | 1,500(L) x 400(W) |
Board Handling Method | Magnetic Fixture Worktable | |
Tape Feeder | Feeder Type | Electric Feeder |
Feeder Capacity | 20 (12mm) | |
Optional | 8mm, 12mm, 16mm, 24mm | |
Utility | Power | AC 220V/240V 50/60Hz, Single phase |
Max 2.8KW | ||
Air Supply | Built-in Vacuum Pump | |
Mass | Approx. 1560kg | |
External Dimension(mm) | 2,000(L) x 1,250(D) x 1,400(H) | |
