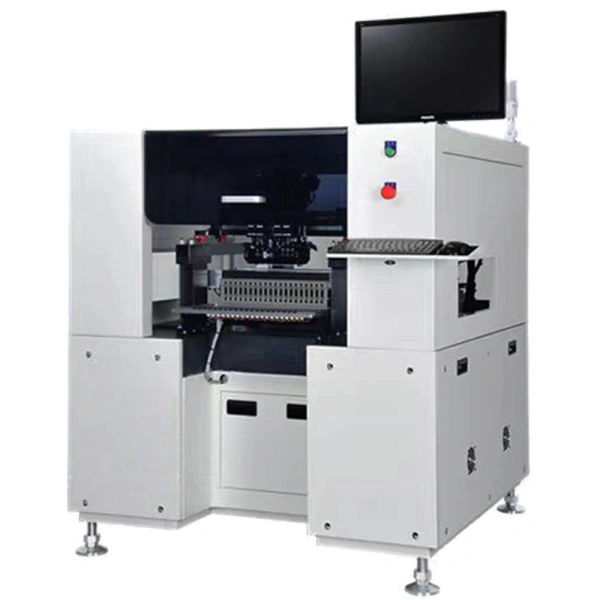

Alignment

Flying Vision Alignment System

Number of Spindles

8 Spindles x 1 Gantry

Rated Placement Speed

Vision Alignment

LED 2835 40,000 CPH (Optimum)

Placement Accuracy

±0.05mm

(Based on the standard chips)

Mechanical Precision

±0.02mm

Component Range

Fly Camera

0603(inch)~5050~7474(mm),

high-power LED, IC<10mm

Max Height

H=10mm

(Can handle max. 16mm without vision  alignment)

Board Dimension(mm)

Minimum

50(L) x 50(W)

Maximum

600(L) x 380(W)

PCB Thickness

0.5 - 3.0

Board Handling Method

Inline Conveyor

Tape Feeder

Feeder Type

Electric Feeder

Feeder Capacity

20 (12mm Standard)

Optional

8mm, 12mm, 16mm, 24mm

Utility

Power

AC 220V/240V 50/60Hz, Single phase

Max 3.0KW

Air Consumption

0.55-0.7MPa (5.6-7.1kgf/cm2)

Mass

Approx. 1100kg

External Dimension(mm)

1,230(L) x 1,200(D) x 1,360(H)
