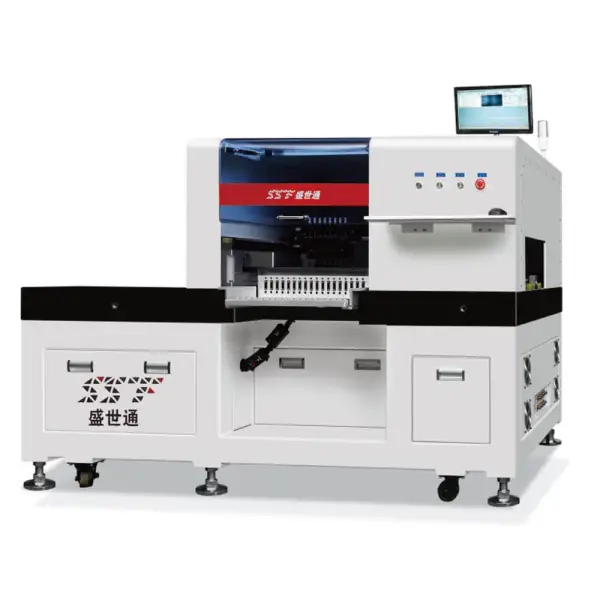

8 heads 1.5m LED pick and place machine
keywords:
8 heads pick and place machine, 8 heads offline pick and place machine, 8 heads off-line chip mounter, 8 heads smt machine, 8 heads pick and place machine
Use the most convenient positioning block, base plate origin positioning method to fix position. The Positioning is highly
accurate (Precision less than 0.05 mm). Mounting angle range 0-360° and the precision is 0.1°. Every picking nozzle is an
independent rotation angle, moreover added 8 cameras for components recognition. In addition to place the traditional long led tube light, also can place bulb light, down light, spot light, celling light, LED fence light, LED driving power supply, copper wire string light and so on. All X, Y, W axis are equipped with imported precision ball bearing screw rods and guide rails.
Z axis installed 8 sets of imported motor to drive, it enhanced the smooth coordination of equipment motion, reduced abnormal noise, greatly improved the placement accuracy and speed.
技术参数Specifications
产品名称 Product name | SST-S8 |
最大电路板面积 Maximum PCB area | 1500× 385mm |
最大移动范围 Maximum moving range | X轴1200mm, Y轴380mm X axis 1200mm, Y axis 380mm |
Z轴最大移动范围 Z Axis Maximum moving range | 12mm |
最大贴片速度 Max placement speed | 55000CPH |
实际贴片速度Typical placement speed | 38000CPH |
运动精度 Movement precision | +-0.05mm |
定位方式 Positioning method
| MARK点相机+飞行拍照视觉 MARK point camera +flying camera |
可以贴装元器件 Component range
| 0603以上阻容件及各种3528和5050LED芯片，同时满足SOP，SOT芯片的贴装并兼容各种大动率芯片贴装 0603 upper resistor and capacitor, and all kinds LED 3528,5050 LED chips, meanwhile meet Can mount components requirement of SOP SOT chip placement, and compatible with all kinds of high-power chip mount. |
生产种类 Types of production
| LED日光灯管、软灯带、电源驱动、护栏管、模组、显示屏等多种LED应用产品 LED tube light, soft LED strip light. power supply driver, fence light, display module-display screen ect. multi LED application products |
编程方式 Programming method
| 可白动视觉相机定位编程 Automatic visual camera Positioning programming |
带式喂料器Belt type feeder | 8mm.，12mm，16mm和24mm喂料器 8mm, 12mm, 16mm and 24mm feeder |
喂料器数量 Number of feeders | 可以放置16个标准8mm 16 pcs of standard 8mm feeder can be installed |
操作系统 OS | WINDOWS 7 |
压缩空气Compressed air | 0.55MPA |
电源功率Power supply | 220V 50Hz 2.0KW |
重量 weight | 1700kg |
外形体积 Dimension | 2000MM(L) *1100MM(W)*1450MM(H) |
