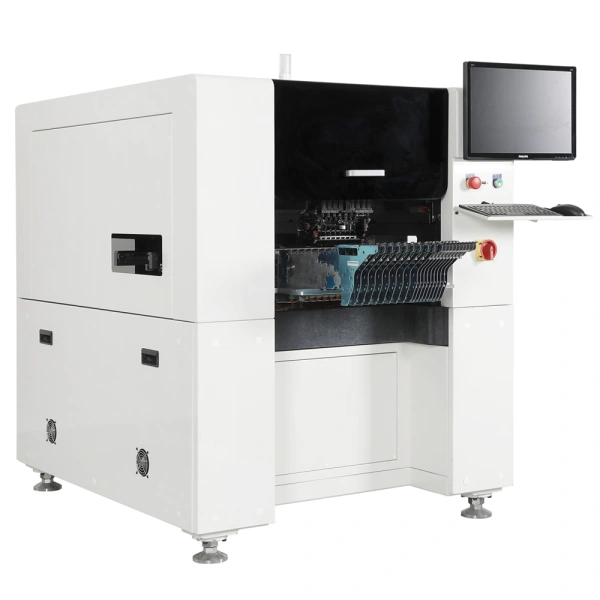

Model

LK-800S

Number of Heads

Vision on the Fly

8

Placement Rate

Under the optimum condition

30000CPH

IPC9850

20000CPH

Feeder Capacity

Front and back

25+25 Tape Feeders

(8mm/12mm Electric Standard)

IC Tray Capacity

325 x 135mm

2

Component Alignment

Vision Detection

Component Size

Handled by Head Camera

Smallest: 0201 (inch)

Largest: 10 x 8 (mm)

Handled by Fixed Bottom  Camera

Smallest: 1206 (inch)

Largest: 30 x 30 (mm)

Resolution

X/Y Axis

Magnetic Levitation Linear  Motor

Z Axis

Step-Servo Motor

Rotation

0 to 360°

Placement Accuracy

±0.05mm

X-Y Repeatability

Magnetic Grid

±0.002mm

PCB Size

Maximum

L 300 x W 250mm

Minimum

L 50 x W 50mm

Programming

Vision Teach-in

Coordinates Import

Main Control Method

Industrial PC

Power

AC 220V ±10% (50/60Hz, 1  phase)

Max. 3.0KW

Air Pressure

0.55-0.7MPa (5.6-7.1kgf/cm2)

External Dimension(mm)

L x W x H

1150 x 1370 x 1500 mm

Mass

Approximate 1500kgs
