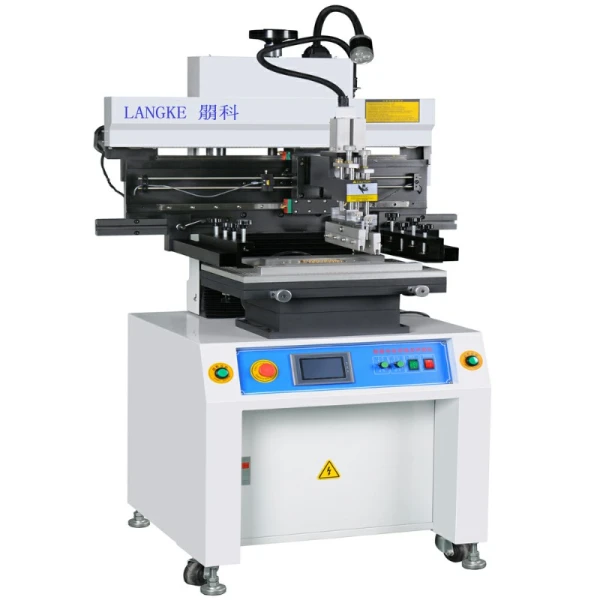

S600 semi-auto screen solder paste printer machine
Product Description
SMT Production Line Usage Semi-auto PCB Printing Equipment Solder Paste SMT Stencil Printer
we are not only have small stencil printer machine, but also have big, even for 1200mm,1500mm length PCB.
keywords: solder paste printer, screen printer, stencil printer, smt printer, smd printer, semi auto printer, semi auto stencil printer, semi auto screen printer,solder paste,smt printer, printer, solder paste printer, semi-auto printer, smt printer, solder paste printer, smt printers, smd printer, printer machine, smt production line printer machine, screen printer, solder paste printer, smt solder paste printer
Feature:
1.Using precision guide rail and the import motor to drive the blade seat conversion, printing, and high accuracy.
2.Printing scraper can rotate 45 degrees fixed up, easy printing stencil and squeegee cleaning and replacement.
3.Block can be adjusted before and after the blade, to choose the right printing position.
4.Combined with a fixed groove printing platen and PIN, easy installation and adjustment, for single, double sided printing.
5.School Edition way to move a steel mesh, combined with printed (PCB), X, Y, Z. Convenient fine adjustment.
6.Can be set to one-way and two-way, a variety of printing methods.
7.With the automatic counting function to facilitate the production of output statistics.
8.Adjustable blade angle, steel blade, rubber scraper are suitable.
9.Touch screen with a screen saver function, the time can be adjusted to protect the touch-screen life.
10.Printing speed display, can be adjusted.
Package:
inside is Vacuum bag, outside is Wooden box
Semi-Auto SMT Printer Specifications:
| Model | LK-S400 | LK-S500 | LK-S600 | LK-S1200 |
| Dimensions(mm) | 850×720×1650 | 850×720×1650 | 1000×720×1650 | 2000×720×1650 |
| Platform size | 320×400mm | 320×500mm | 320×600mm | 320×1300mm |
| PCB size | 250×350mm | 250×450mm | 250×550mm | 250×1200mm |
| Template size | 550×680mm | 550×760mm | 550×830mm | 550×1480mm |
| Printing speed | 0-8000mm/min | 0-8000mm/min | 0-8000mm/min | 0-8000mm/min |
| PCB thickness | 0-100mm | 0-100mm | 0-100mm | 0-100mm |
| PCB fine tuning range | Front/side±10mm | |||
| Power supply | 1PAC220V 50/60HZ | |||
| Platform height | 850±20mm | |||
| Repeating precision | ±0.02mm | |||
| Printing Accuracy | ±0.02mm | |||
| Positioning mode | Outside/Reference hole | |||
| Weight | Approx.200Kg | Approx.250Kg | Approx.300Kg | Approx.380Kg |
Before stencil printer
After stencil printer

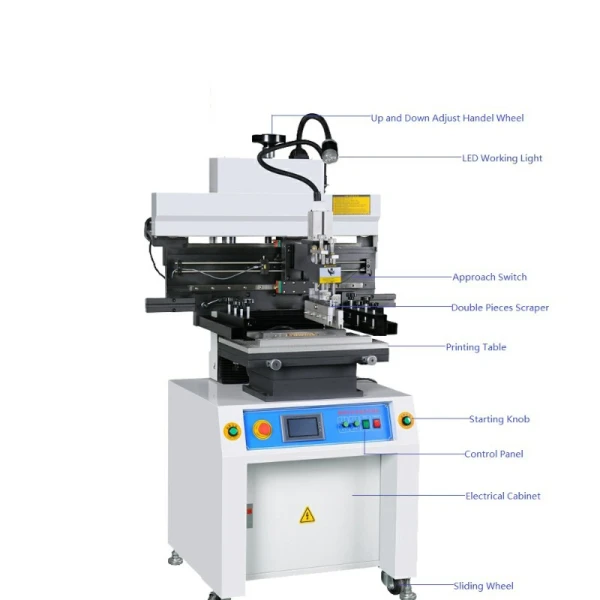

For machine detailed:
We are SMT machine manufacturer in China, located in Shenzhen and Zhongshan, owned the area of 5000m², our products range include smt pick and place machine, reflow oven, wave solder machine, stencil printer, pcb conveyor, auto dispenser ect.
we are not only manufacturing machine, but also provide different smt line or dip line for customers.
If you are interested in our products, please feel freely to contact us.
Awaiting for your consulation.
