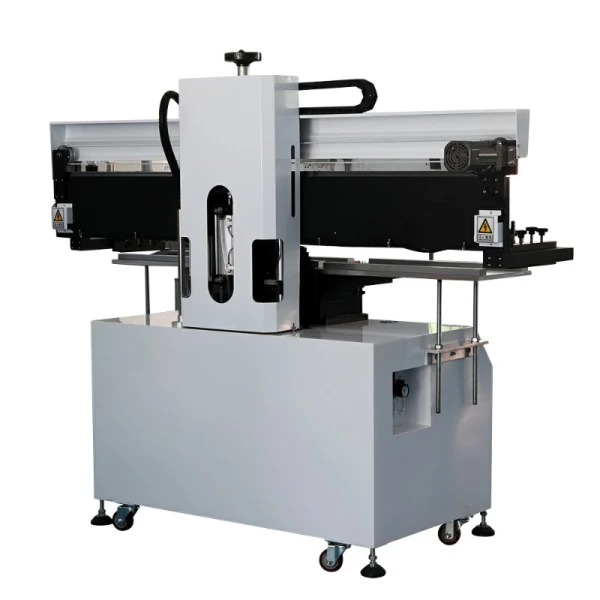

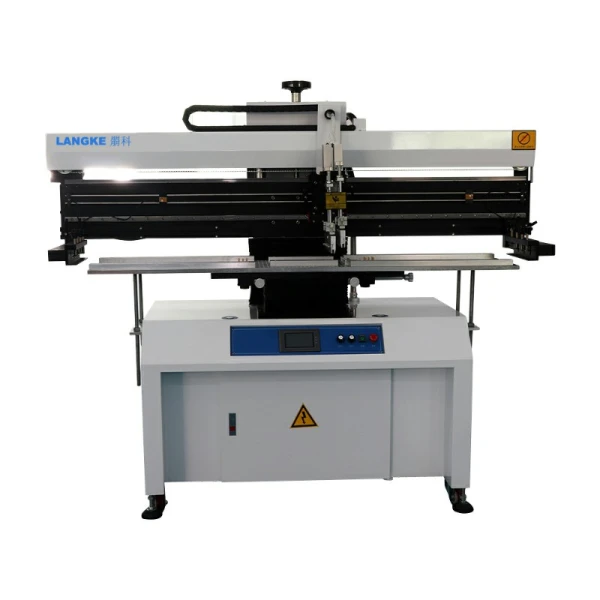

S1200 semi-auto screen solder paste printer machine
Product Description
SMT Production Line Usage Semi-auto PCB Printing Equipment Solder Paste SMT Stencil Printer
we are not only have big stencil printer machine, but also have smaller.
keywords: solder paste printer, screen printer, stencil printer, smt printer, smd printer, semi auto printer, semi auto stencil printer, semi auto screen printer,solder paste,smt printer, printer, solder paste printer,smd solder paste printer, smt solder paste printer
Feature:
1.Using precision guide rail and the import motor to drive the blade seat conversion, printing, and high accuracy.

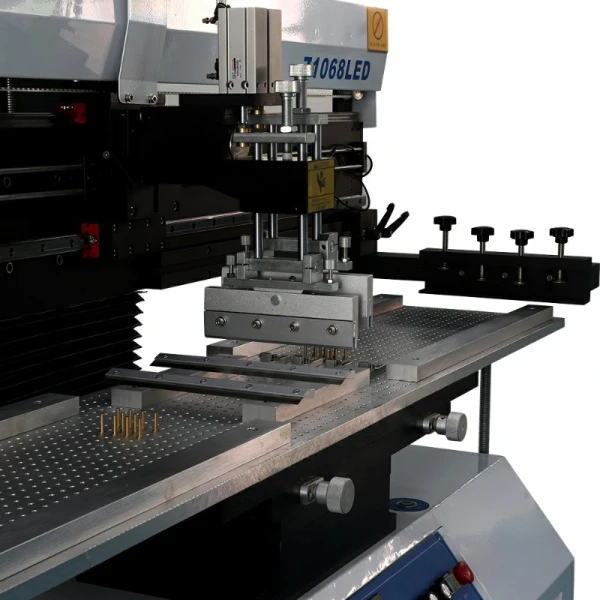

2.Printing scraper can rotate 45 degrees fixed up, easy printing stencil and squeegee cleaning and replacement.
3.Block can be adjusted before and after the blade, to choose the right printing position.
4.Combined with a fixed groove printing platen and PIN, easy installation and adjustment, for single, double sided printing.
5.School Edition way to move a steel mesh, combined with printed (PCB), X, Y, Z. Convenient fine adjustment.
6.Can be set to one-way and two-way, a variety of printing methods.
7.With the automatic counting function to facilitate the production of output statistics.
8.Adjustable blade angle, steel blade, rubber scraper are suitable.
9.Touch screen with a screen saver function, the time can be adjusted to protect the touch-screen life.
10.Printing speed display, can be adjusted.
Semi-Auto SMT Printer Specifications:
Model | LK-S1200 |
Dimensions | 2000*720*1650mm |
Platform size | 300*1250mm |
PCB size | 250*1200mm |
Printing speed | 0-8000mm/min |
PCB thickness | 0.2-2.0mm |
PCB fine tuning range | Front/side±10mm |
Power supply | 1PAC220V 50/60HZ |
Platform height | 850±20mm |
Repeating precision | ±0.01mm |
Printing Accuracy | ±0.02mm |
Positioning mode | Outside/Reference hole |
Weight | Approx.380Kg |
We are SMT machine manufacturer in China, located in Shenzhen and Zhongshan, owned the area of 5000m², our products range include smt pick and place machine, reflow oven, wave solder machine, stencil printer, pcb conveyor, auto dispenser ect.
