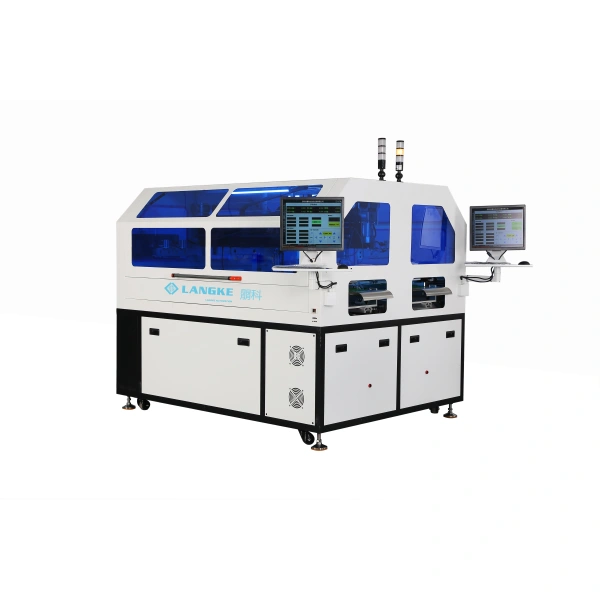

dual lane solder paste stencil printer machine for roll to roll FPCB
parameter
model | DS-1000 |
Stencil size | 1400*400mm |
stencil frame thickness | 25-40mm |
PCB Size | no limitation*250mm |
PCB thickness | 0.05-1.2mm |
transport heigh | 900±100mm |
transport speed | 500mm/s（可软件设置 Adjustable） |
transport direction | 左→右，右←左（设备两边印刷）L-R/R-L (should be confirmed before shipping) |
transport method | Drag by module + servo roller |
connection method | 进板位置和出板位置均为本机感应信号 signal |
pcb supporting method | high flatness aluminum plate(6061) |
pcb clamping method | cylinder+ servo torque tensioning (update tension strength in real time) |
printing head | Cylinder (adjustable stroke: 0-50mm) |
scraper speed | 10-200mm/sec |
scraper type | Detachable steel blade scraper(Angle 45°) |
cleaning method | can be set in a certain number of printing to remind manual cleaning |
camera scanning range | ±5mm |
repeated positioning accuracy | ±0.02mm |
printing accuracy | ±0.05mm |
printing cycle | ≤16sec |
operation system | Win7 |
time for changing line | ≤5min |
air pressure | 5-6Kgf/cm² |
power | AC220V±10%,50/60Hz，2.5KW |
control method | PC+ CPU |
Dimension | L2200×W1800×H1650（mm） |
