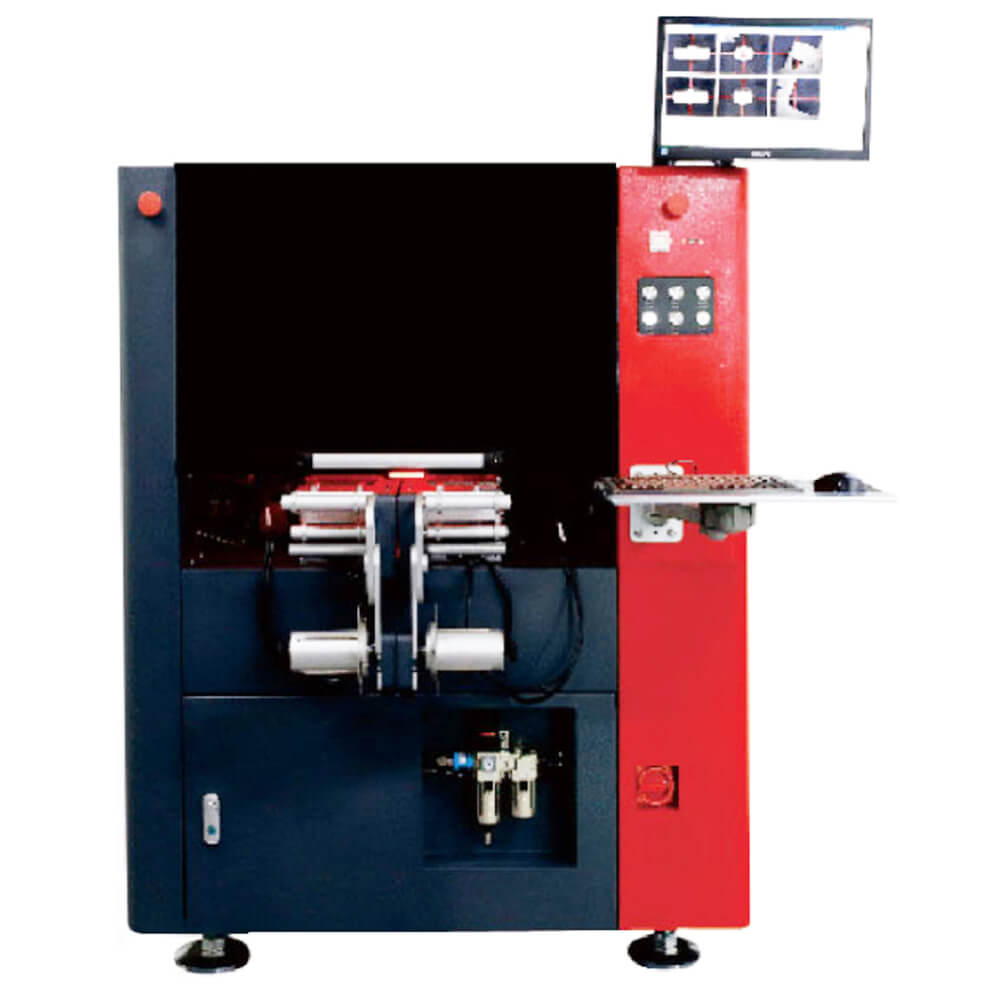

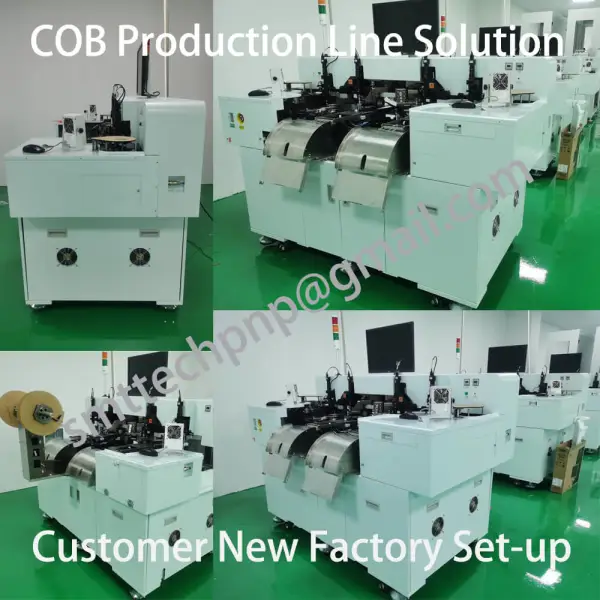

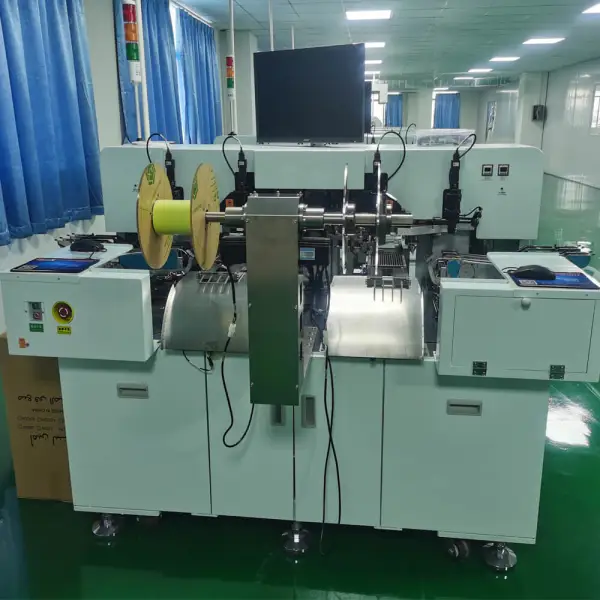

COB strip light making machine
|
LED Resistance machine |
|
|
Model |
GTS80T |
|
System |
|
|
production cycle |
42K/h (cycle time is depended on the chip size and bracket) |
|
XY accuracy |
±1mil(±0.025mm) |
|
Chip XY work area |
|
|
chip size |
3mil*3mil-80mil*80mil(0.076mm*0.076mm-2mm*2mm) |
|
resolution ration |
1μm |
|
Image recognize system |
|
|
Gray scale |
256 degree |
|
resolution ration |
656*492 pixel |
|
image recognize accuracy |
±0.025mil@50mil observation range |
|
Crystal absorbing robotic hand system |
|
|
Crystal absorbing swing arm |
90°rotatable solid crystal |
|
Crystal absorbing pressure |
30g-250g can be adjusted. |
|
Feeding work table |
|
|
travel range |
/ |
|
XY resolution ration |
0.02mil(0.5μm) |
|
Suitable bracket size |
|
|
length of bracket |
/ |
|
width of bracket |
120mm(normal roll PCB width) |
|
Required facilities |
|
|
Power |
220V AC±5%/50HZ |
|
Air source |
0.5MPa（MIN） |
|
Rated power |
1200W |
|
Gas consumption |
40L/min |
|
Volume and Weight |
|
|
L*W*H |
180*100*175cm |
|
weight |
1300kg |
