Name

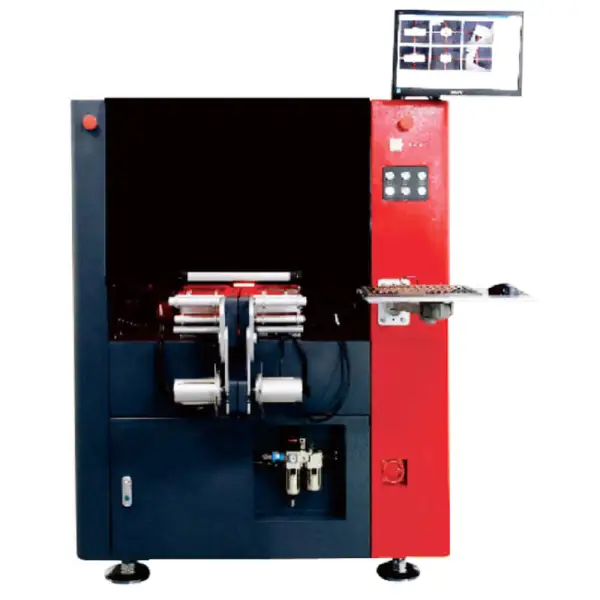

2 heads labeling machine（LK-X2）

X axis driver

linear motor

Y axis driver

linear motor---single driver

Z axis

servo motor + timing belt,4 pcs Z axis

U axis

2 pcs

Application length of label

3-65mm

Application width of fixtures

2～8mm

Applicable thickness of label

0.05～0.50mm

Applicable label inner diameter

3” /6”

Number of Feeder

2 pcs

number of nozzles

2 pcs

placement speed (over 30 pcs)

(Scan mark point) 1.3s/Pcs

(point to point) 1.5s/Pcs

X axis max speed

2m/s（linear motor）

Y axis max speed

1.6m/s（linear motor）

repeated accuracy

±0.01mm

placement accuracy

Scan mark point：±0.1mm
point to point：±0.08mm

standard label and film：±0.05mm

FPC range

100*100mm～350(X axis)*420mm(Y axis)

placement method

separate picking, separate mounting

transport height

910mm±30mm

Dimension(L*W*H)

1200*1400*1550（mm）

Weight

1800Kg

Power

3.5KW 220V

Air source

0.5～0.8Mpa

Using environment

Tempt.: 21 ± 4℃ Humidity:40 ~70 %

software programming method

DXF engineering data lead in

Vision and camera

Mark point scan, point to point scan (Up camera 500W)

Intelligent material deviation correction (Down camera 500W, flying camera)

Bad board selective place function

up camera recognize/RQ code recognize

bottom camera directly recognizes bad mark point

docking database

yes

other function

Vacuum recognition anti-re-paste, visual recognition anti-re-paste
