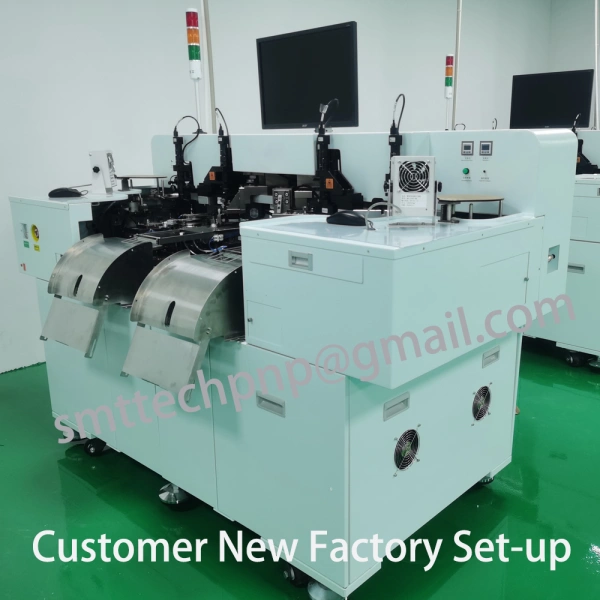

Automatic Die-bonding machine
|
LED roll Crystal fixing machine |
|
|
Model |
GTS80A |
|
System |
|
|
production cycle |
90ms(周期取决于晶片尺寸及支架) |
|
XY accuracy |
±1mil(±0.025mm) |
|
chip rotation |
±3° |
|
Chip XY work table |
|
|
chip size |
3mil*3mil-80mil*80mil(0.076mm*0.076mm-2mm*2mm) |
|
resolution ration |
0.04mil(1μm) |
|
chip maximum angle correction |
±15° |
|
max chip ring size |
6″（152mm）(External Diameter) |
|
max chip area |
4.7″（119mm）(Expanded) |
|
Thimble Z height stroke |
80mil（2mm） |
|
Image recognize system |
|
|
Gray scale |
256 degrees grey |
|
resolution ration |
656*492 pixels |
|
image recognize accuracy |
±0.025mil@50mil observation range |
|
Crystal absorbing swing arm robotic hand system |
|
|
Crystal absorbing swing arm |
90°rotatable solid crystal |
|
Crystal absorbing pressure |
30g-250g can be adjusted |
|
Feeding work table |
|
|
travel area |
/ |
|
XY resolution ration |
0.02mil(0.5μm) |
|
Suitable bracket size |
|
|
length of bracket |
/ |
|
width of bracket |
Max 120mm |
|
Required facilities |
|
|
Power |
220V AC±5%/50HZ |
|
Air pressure |
0.5MPa（MIN） |
|
Rated power |
1600W |
|
Gas consumption |
40L/min |
|
Dimension & weight |
|
|
L*W*H |
189*100*175cm |
|
Weight |
1300kg |
