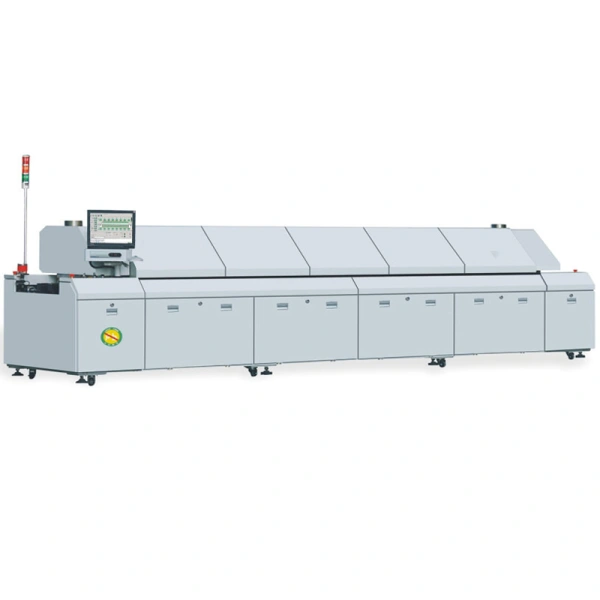

8 zones SMT lead free reflow oven soldering machine
smt machine, smt oven, hot air reflow oven, PCB soldering, pcb reflow oven, soldering machine, reflow oven, reflow soldering oven, oven machine,lead free reflow oven, smd machine
Introduction:
1. Windows XP O/S, so simply as Chinese and English interface onscreen alternative available.
2. The digital control system adopted with PLC +Modular circuit to stabilized and accurate of repetitive precision.
3. Intelligent diagnosis system (IDS) has the function of trouble remind, alarm, list-out, report saving.
4. Temperature and blower speed controlling adjustable independently, to meet the high-precision requirements.
5. To minimize the temperature difference of various volumes of components by newly chambers design, with enhance the reliability and protective of each solder joints.
6. Step forced cooling system to easily achieve the requirements of strict lead-free processes (cooling slope: ≥ 3degree/sec.)
7. Center support and dual rail is optional.
Specification
|
model |
LK-800 |
|
heating zones |
up 8/ down 8 |
|
heating length |
3110MM |
|
Weight |
APPROX:2300KG |
|
Exhaust Volume |
10 ㎡/min×2 |
|
Temp. control method |
PC |
|
Cooling zones |
2 |
|
Nozzle plate |
Galvanized punching sheet |
|
Dimension(L*W*H) |
5310*1610*1490mm |
|
color |
Computer gray |
|
Control System |
|
|
power supply |
3P 380V 50/60HZ(3P 220V 50/60HZ) |
|
total power |
64KW |
|
Starting power |
30KW |
|
consume power |
10KW |
|
Speed control |
using frequency converter to adjust the speed |
|
warming-up time |
About 30 mins |
|
Temp. setting range |
Room tempt. ～300℃ |
|
Temp. control precision |
±1℃ |
|
Temp. control method |
PID close loop control & SSR driving |
|
Temp. deviation on PCB |
±1.5℃ |
|
Data storage |
Process Data and status storage(80GB) |
|
Abnormal Alarm |
Abnormal temperature (extra-high/extra-low temperature) |
|
Transportation System |
|
|
Guideway structure |
Whole with sectional type |
|
Chain structure |
Single chain buckle anti card plate chain |
|
mesh width |
500mm |
|
PCB Max size |
single rail machine: W：50-400mm |
|
component height |
Up:25MM,bottom: 25mm |
|
transport direction |
L→R(Option:R→L) |
|
Fixed rail side |
front fixed(Option: rear fixed) |
|
Transmission Net Height |
900±20MM |
|
os |
windows 7 |
|
Transmission type |
mesh+chain |
|
conveyor speed |
300-1500MM |
|
Lubricating oil adding |
Auto or manual |
|
Cooling System |
|
|
Cooling method |
Using force air cooling will make sure the pcb tempt. ≤70℃ when it come to the machine exit. |
|
cooling zones |
2 |
|
Heating Features |
|
|
Item |
performance |
|
Heating zones |
Up 8/ down 8 |
|
Warming-up time |
30 min (from room tempt. to stable tempt.) |
|
warming-up order |
Heating the two sides one by one to save power or time 1/3 |
|
time for the curve transformation |
＜15min (Temperature adjustment amplitude difference＜100℃) |
|
Temp. control precision |
±1℃ |
|
Temp. deviation on PCB |
±1.5℃ |
|
Independent closing function of temperature zone |
The independent temperature control area can be independently closed on the computer. When the lower wind and heat temperature zone are completely closed, the maximum temperature difference can be generated on both sides of the PCB.(depend on the different of PCB thickness and material) |
|
heating blower |
Imported high temperature long life motor, rotating speed can reach 2800rpm. Using variable frequency speed regulation technology, the speed adjustment of hot air motor can be carried out from 0 to 3000 rpm. |
Machine detailed:

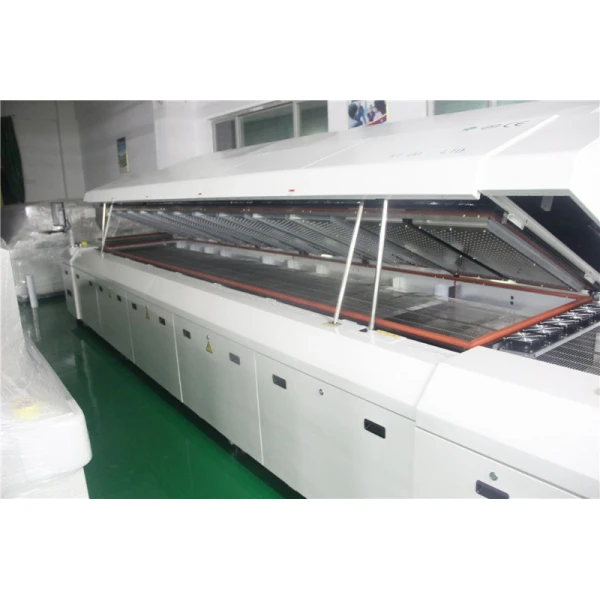

inside heating zones

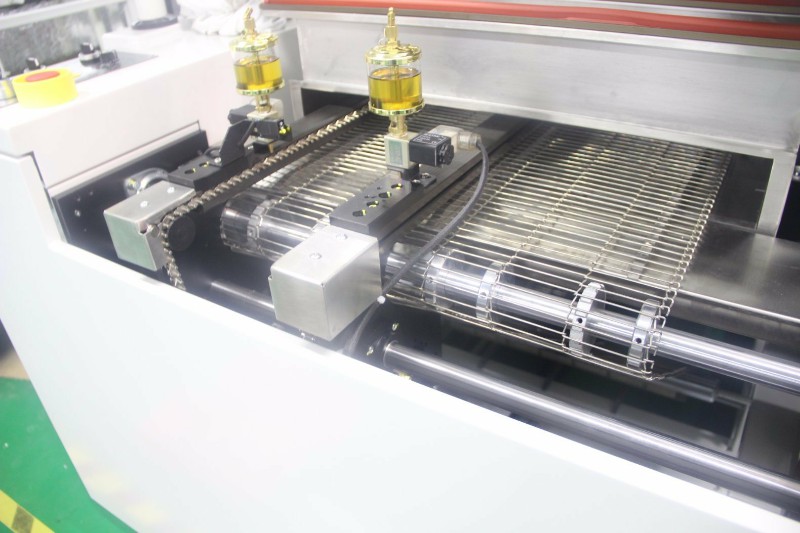

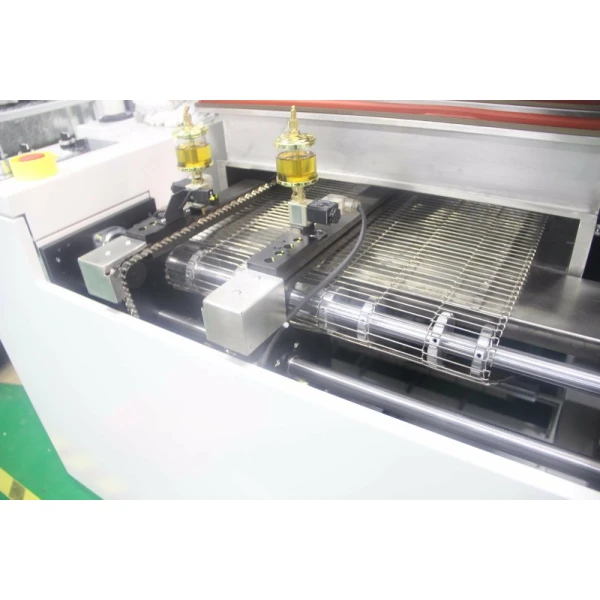

Mesh and Guide rail
customer factory

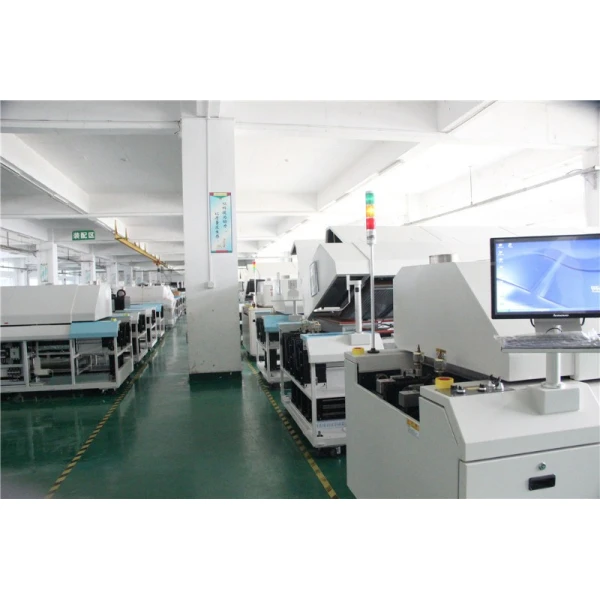

Our reflow oven factory

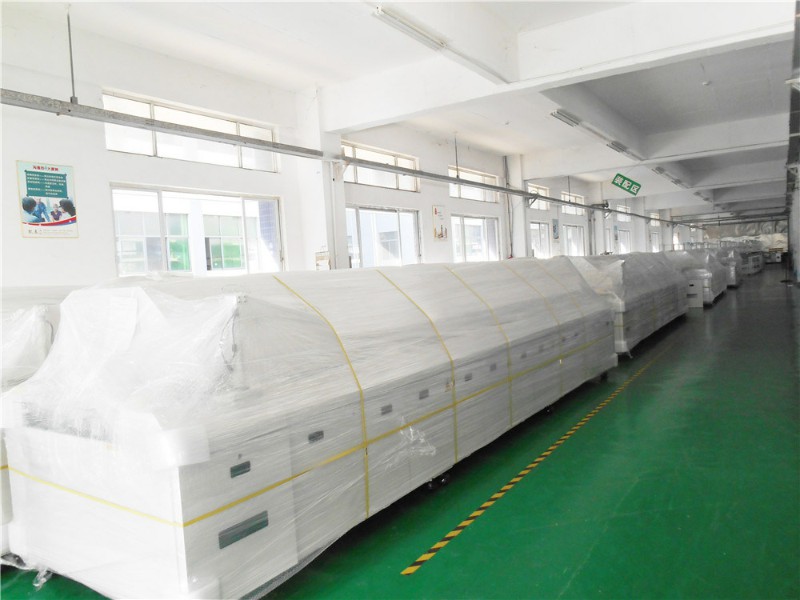

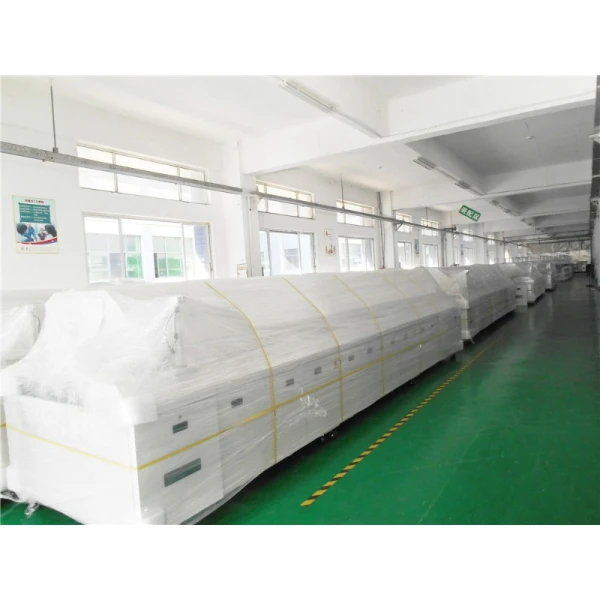

Machine ready for shipping
Wooden package
