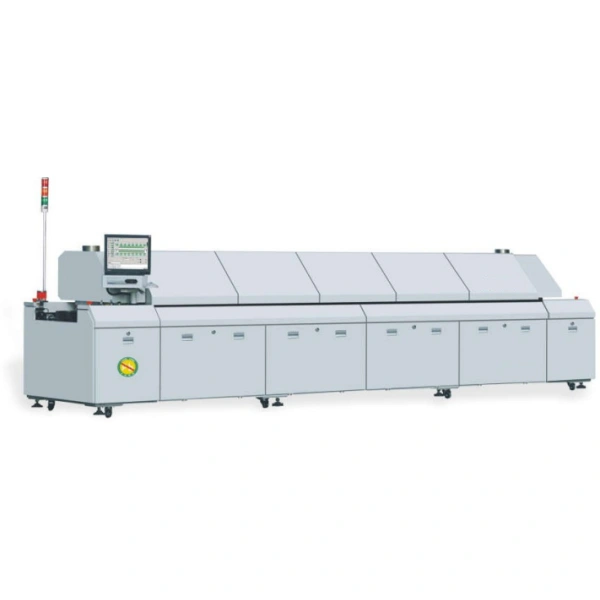

10 zones reflow soldering machine KTE-1000
10 zones reflow soldering machine, reflow oven, reflow soldering, soldering machine, smt soldering machine, smt solder, smt soldering machines
Features:
1. Totally meet various requirements for the lead free processing.
2. Windows XP operation system, Chinese/English can be switched online.
3. Standard air oven, Patent air system, using hot air convection conduction heat faster, more efficient compensation.
4. PLC+PID closed loop control to achieve high precision temperature control and repeatable profiles.
5. Dual temperature sensors and dual safety control, system shall cut off the power while abnormal alarm.
6. Modular design to get quick and simple maintenance so that reducing the maintenance time & cost.
|
Model |
KTE-1000 |
Control |
Industrial computer |
|
Heating zones quantity |
Top 10,bottom 10 |
Cooling zones quantity |
Top 2 |
|
Heating zone length |
3892mm |
Current plate structure |
Galvanized plate |
|
Weight |
APPROX:2615KG |
Dimension |
6135*1360*1490mm |
|
Exhaust capacity |
10㎡/min×2 |
Color |
Grey |
|
Control system |
|||
|
Electricity supply |
3P 380V/220V 50/60HZ |
Temp. control range |
Room temp.～300℃ |
|
Total power |
80KW |
Temp. control accuracy |
±1℃ |
|
Start power |
36KW |
Temp. control method |
PID +SSR drive |
|
Consumption power |
12KW |
PCB temperature deviation |
±1.5℃ |
|
Speed control |
Inverter adjust |
Data save |
All profiles can be saved |
|
Warm up time |
Approx.30minute |
Abnormal alarm |
High, low temp. alarm |
|
Conveying system |
|||
|
Rail structure |
2 Sectional structure |
Rail fixed method |
Front fix |
|
Chain structure |
Stuck-free type |
Conveying height |
900±20mm |
|
PCB Max. width |
50-400mm |
Conveying method |
Mesh+ chain |
|
Component height |
Top/bottom 25mm |
Conveying speed |
300-1500mm |
|
Conveying direction |
Left to right |
Lubrication |
Automatically or manually
|
|
Cooling system |
|||
|
Cooling method |
Forced air cooling |
||
|
Heating features |
|||
|
Heating zones |
Top 10,bottom 10（3892mm）can meet the need of the peak lead-free technique. |
||
|
Cooling zones |
After cool down by air, PCB temp. is ≤70℃ at the exit. |
||
|
Warm up time |
From the normal temp. to set temp, approximate 30 minutes. |
||
|
Warm up sequence |
Warm up from two side, save the power and time |
||
|
Profile transfer time |
＜15min |
||
|
Heating zone temp. control accuracy |
±1℃ |
||
|
PCB temp. deviation |
±1.5℃ |
||
|
Empty→ full load heat balance respond time |
≤20 s |
||
