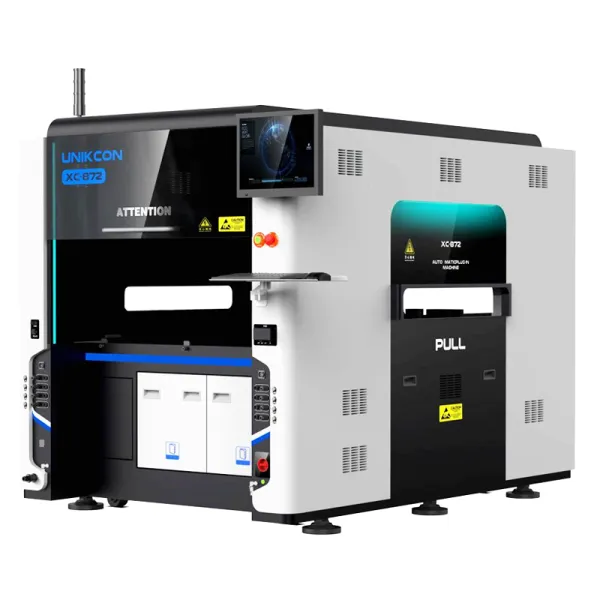

6 heads tht odd-formed automatic insertion machine AM1-6S

machine dimension (include keyboard and signal light)

1550×1660×1570mm (LxWxH)

PCB height(up/down)

70mm / 40mm（optional can be customized to 80mm)

Machine   weight

1700kg

PCB max weight (include component, jigs)

≤10Kg(chain)

≤3kg   (belt)

OS

Windows

PCB edge   width/board thickness (include jig)

0.5-2mm/0.5-20mm

door quantity

2

PCB fixed method

Servo up support/ Cylinder clamping

door safe sensor detection

standard

rail

chain

air source

0.45-0.65MPa,   300 liter/min，the compressed air is dried and filtered

PCB transport direction

L→R/R→L

max power

220V  ±10% ，50Hz，2.5KW

Guide

single   lane for 3 phases to transport

normal working power

2KW

guide width adjusts

Auto

number of insertion axis

6

transport heigh

900±20mm

max component size

3.0*3.0mm-35*35mm（L*W）

diagonal≤50mm

insert clinch module

optional

Up side

bottom side

0.5mm-55mm

≤40mm

signal interface

standard

picking method

Nozzle/ Grippers

MES

open   data software port can be used for data docking with the MES system

fastest inserting speed

1.2-1.5s/pc

Imaging system

Mark CCD(Top)

1

insert accuracy(3ó)

CPK≥1.0

≤±0.025mm   @ 3 sigma / CPK≥1.33）

Component CCD (Bottom)

3

Insert force

50N（adjustable）

max number of feeder (double side)

Radial tape feeder

16   pcs

insertion direction

0-360°

Axial tape feeder

6-10   pcs

component weight

≤300g

tube feeder

16   pcs

guide max size (single lane)

50*50-360*400mm（1^st  time fixed pcb）

50*50-720*400mm（2^nd time fixed pcb）

linear   feeder

90mm/12pcs，140mm/10pcs

Yield

≥99.5%

bowl   feeder

4   pcs

feeder station number (double side feeding)

8-16   pcs

tray   feeder

4   pcs
