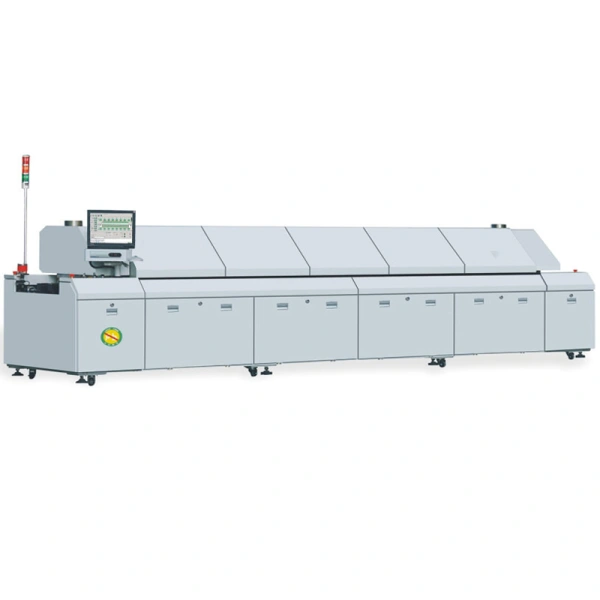

10 zones Chinese smt lead free reflow oven
Keywords:
SMT reflow oven, soldering oven, SMT oven, SMT soldering reflow oven, smt assembly line reflow oven, PCB soldering reflow oven, SMT assembly oven, PCB soldering oven, LED reflow oven, LED PCB reflow oven,lead free reflow oven, lead free soldering machine, soldering machine, welding machine, smd machine, smt machine, oven
Technical Parameter
|
Specification |
Model |
LK-1000 |
|
Meating zones |
up 10/ down 10 |
|
|
Meating length |
3892MM |
|
|
Weight |
APPROX:2615KG |
|
|
Exhaust Volume |
10 m3/min×2 |
|
|
Temp. control method |
PC |
|
|
Cooling zones |
2 |
|
|
Nozzle plate |
Galvanized punching sheet |
|
|
Dimension(L*W*H) |
6135*1360*1490mm |
|
|
Color |
Computer gray |
|
|
Control System |
Power supply |
3P 380V 50/60HZ(3P 220V 50/60HZ) |
|
Total power |
80KW |
|
|
Starting power |
36KW |
|
|
Consume power |
12KW |
|
|
Speed control |
using frequency converter to adjust the speed |
|
|
Warming-up time |
About 30 mins |
|
|
Temp. setting range |
Room tempt. ~300ºC |
|
|
Temp. control precision |
±1ºC |
|
|
Temp. control method |
PID close loop control & SSR driving |
|
|
Temp. deviation on PCB |
±1.5ºC |
|
|
Data storage |
Process Data and status storage(80GB) |
|
|
Abnormal Alarm |
Abnormal temperature (extra-high/extra-low temperature) |
|
|
Transportation System |
Guideway structure |
2 group structure |
|
Chain structure |
Single chain buckle anti card plate chain |
|
|
mesh width |
500mm |
|
|
PCB Max size |
single rail machine: W:50-400mm |
|
|
component height |
Up:25MM,bottom: 25mm |
|
|
transport direction |
L→R(Option:R→L) |
|
|
Fixed rail side |
front fixed(Option: rear fixed) |
|
|
Transmission Net Height |
900±20MM |
|
|
os |
windows 7 |
|
|
Transmission type |
mesh+chain |
|
|
conveyor speed |
300-1500MM |
|
|
Lubricating oil adding |
Auto or manual |
|
|
cooling zones |
Cooling method |
Using force air cooling will make sure the pcb tempt. ≤70ºC when it come to the machine exit. |
|
cooling zones |
2 |
PCB SMD technology processing
Customer products

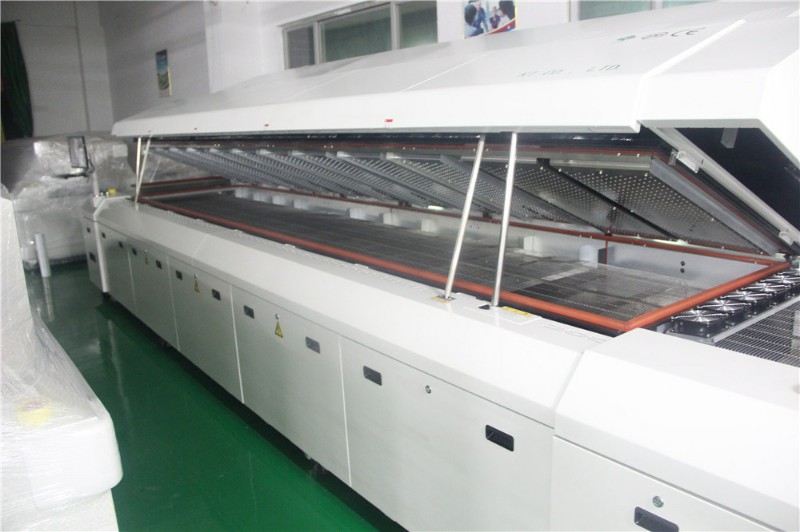

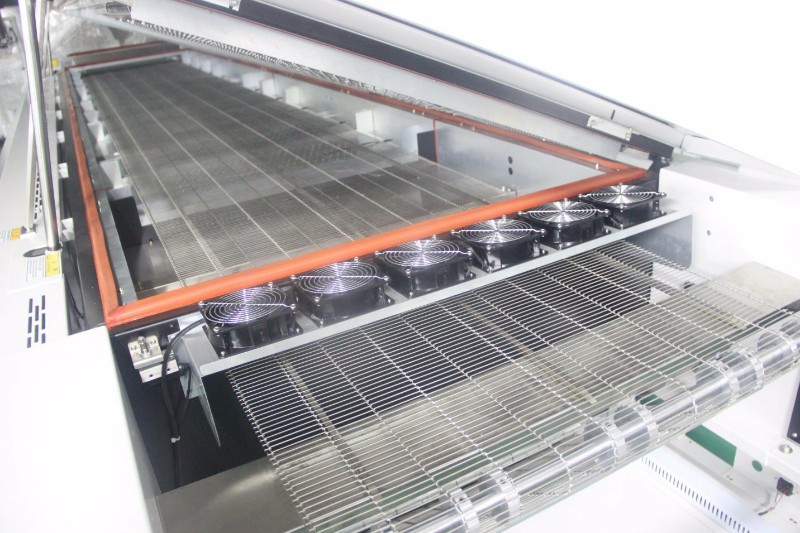

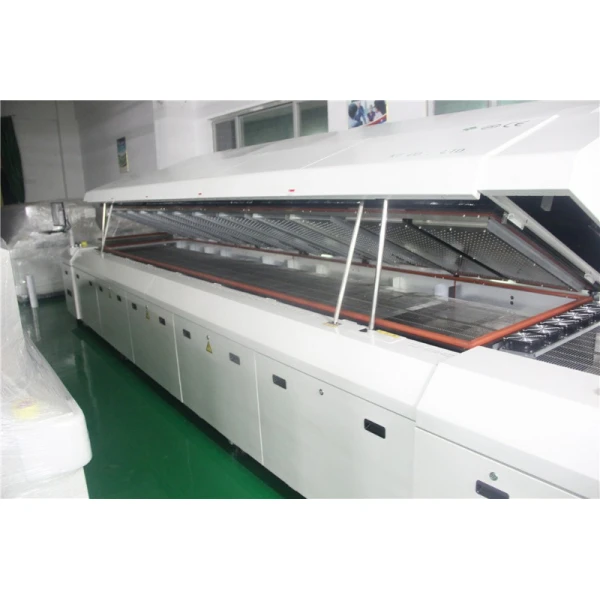

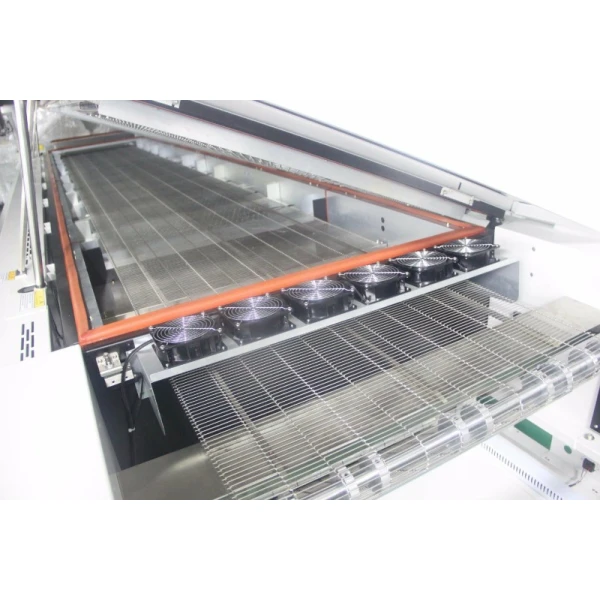

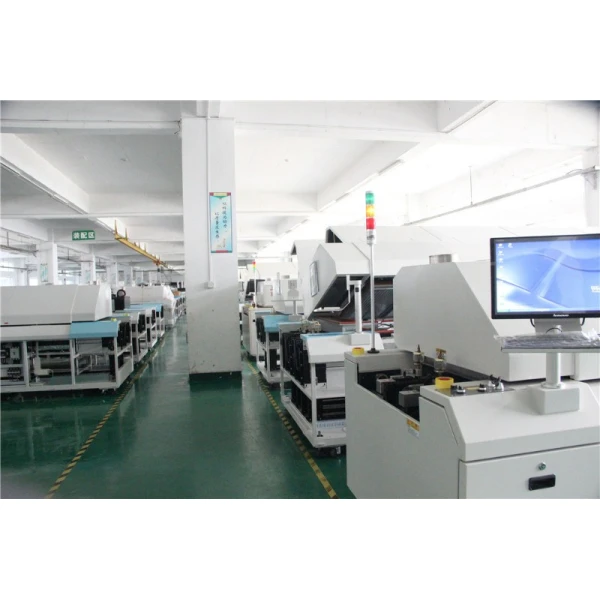

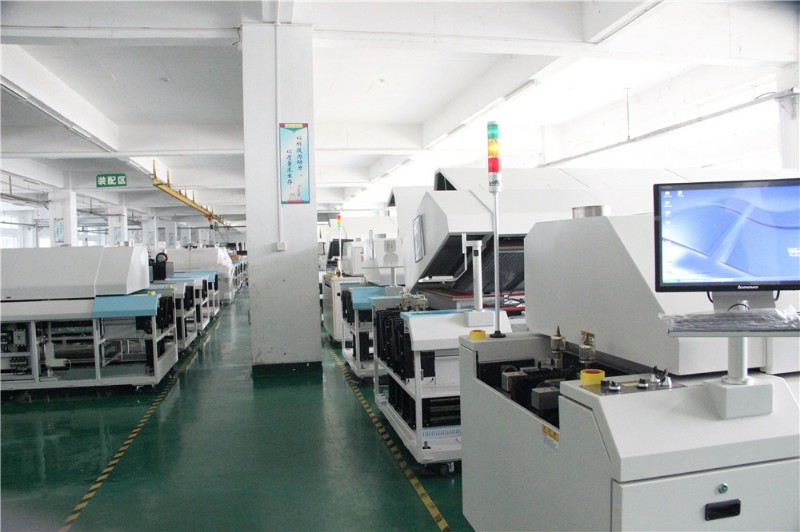

Machine detailed
we are not only manufacturing machine, but also provide different smt line or dip line for customers.
If you are interested in our products, please feel freely to contact us.
Awaiting for your consulation.
