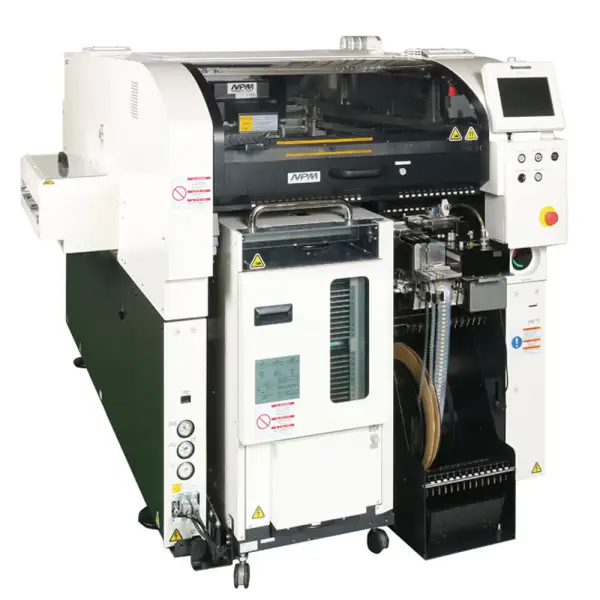

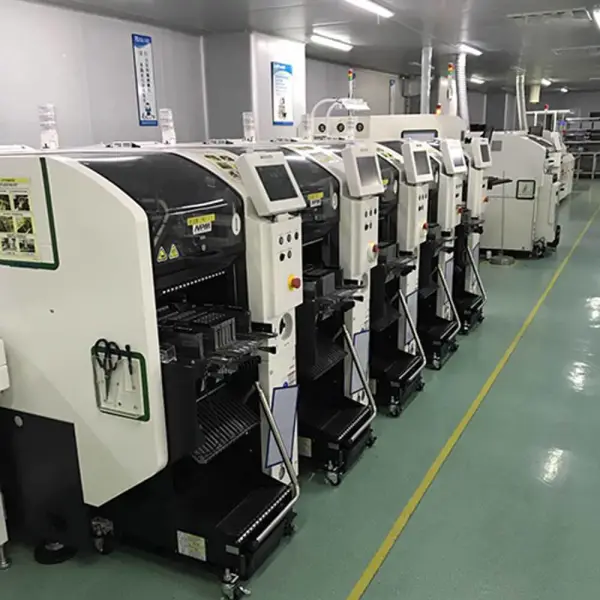

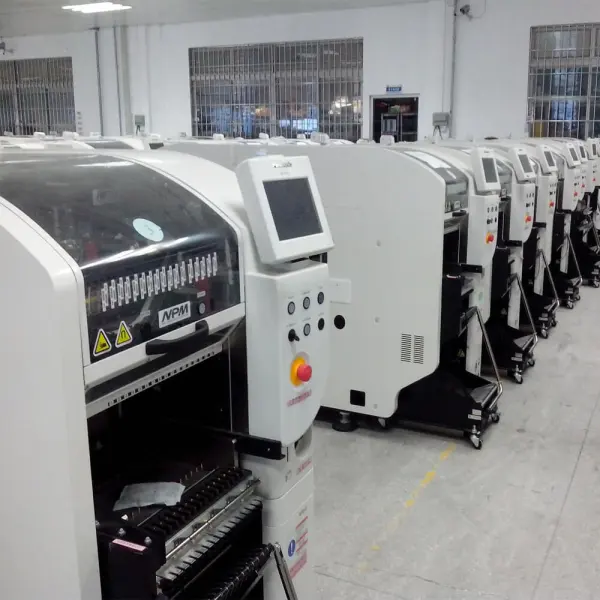

Panasonic NPM-TT2 twin tray assembly platform chip mounter

Basic Specification
Direct connectivity with NPM-D3/W2
Placement head (Lightweight 8- nozzle head & 3-nozzle head V2)
Selectable & configurable supply unit spec
Adoption of Multi Recognition Camera
Alternate & independent mounting support

Changeover capability
Multi Recognition Camera
High productivity through fully independent placement
Support Pin Automatic Change (option)

Productivity/Versatility
Feeder cart changeover spec（option）
Inspection option before pick-up
Transfer Unit（option）

Model ID			NPM-TT2
PCB dimensions (mm)	PC size	Single-lane mode	L 50 x W 50 ~ L 510 x W 590
		Dual-lane mode	L 50 x W 50 ~ L 510 x W 300
	M size	Single-lane mode	L 50 x W 50 ~ L 510 x W 510
		Dual-lane mode	L 50 x W 50 ~ L 510 x W 260
PCB exchange time		Single-lane mode	4.0 s (With no component mounted on the reverse side of PCB)
		Dual-lane mode	0 s* *No 0s when cycle time is 4.0 s or less
Electric source			3-phase AC 200, 220, 380, 400, 420, 480 V 2.5 kVA
Pneumatic source			Min.0.5 MPa, 200 L /min (A.N.R.)
Dimensions *1 (mm)			W 1 3002 x D 2 7983 x H 1 444*4
Mass			2 690 kg (Only for main body:This differs depending on the option configuration.

Placement head		Lightweight 8-nozzle head (Per head)	3-nozzle head V2 5 (Per head)*
Placement speed	PC size	18 000 cph (0.20 s/chip)	7 200 cph (0.50 s/chip) 5 900 cph (0.61 s/QFP)
	M size	17 460 cph (0.21s/chip)	6 984 cph (0.52 s/chip) 5 723 cph (0.63 s/QFP)
Placement accuracy (Cpk1)		± 40 µm/chip ± 30 µm/QFP 12mm to 32mm ± 50 µm/QFP 12mm Under	±40 μm/ chip ±30 μm/ QFP
Component dimensions (mm)		0402 chip*6 to L 32 x W 32 x T 12	0603 chip to L 150 x W 25 (diagonal152) x T 30
Component supply	Taping	Tape : 4 to 56 / 72 mm	Tape : 4 to 56 / 72 / 88 / 104 mm
		Specifications for front/rear tray feeders : Max.52 Specifications for front/rear feeder carts : Max.120 (Tape:4, 8 mm)
	Stick	Specifications for front/rear tray feeders : Max.12 (Single stick feeder)
		Specifications for front/rear feeder carts : Max.28 (Single stick feeder)
	Tray	Max.40 (Front supply unit : Max. 20 + Rear supply unit : Max. 20)

*1 : Only for main body
*2 : 1 820 mm in width if extension conveyors (260 mm) are placed on both sides
*3 : Dimensions shown are specifications for front/rear tray feeders . Dimensions of specifications for front/rear feeder carts : 2 893 mm
*4 : Excluding the monitor, signal tower and ceiling fan cover.
*5 : 3-nozzle head V2 cannot be installed on NPM-D3
*6 : The 0402 chip requires a specific nozzle/feeder.
*Placement tact time, inspection time and accuracy values may differ slightly depending on conditions.
*Please refer to the specification booklet for details.
