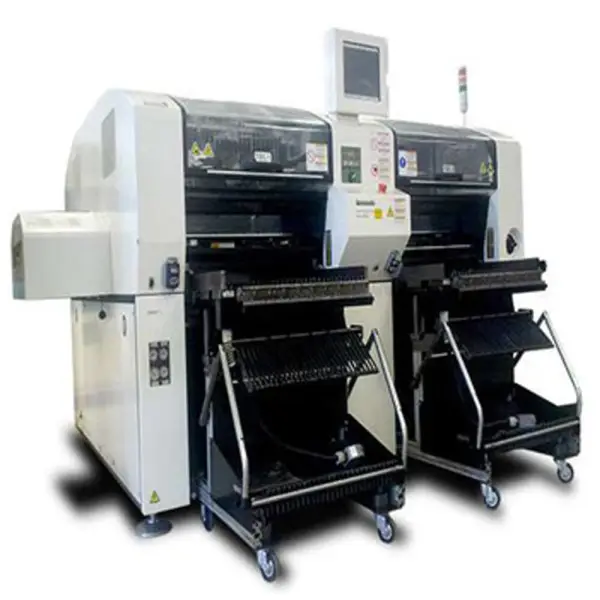

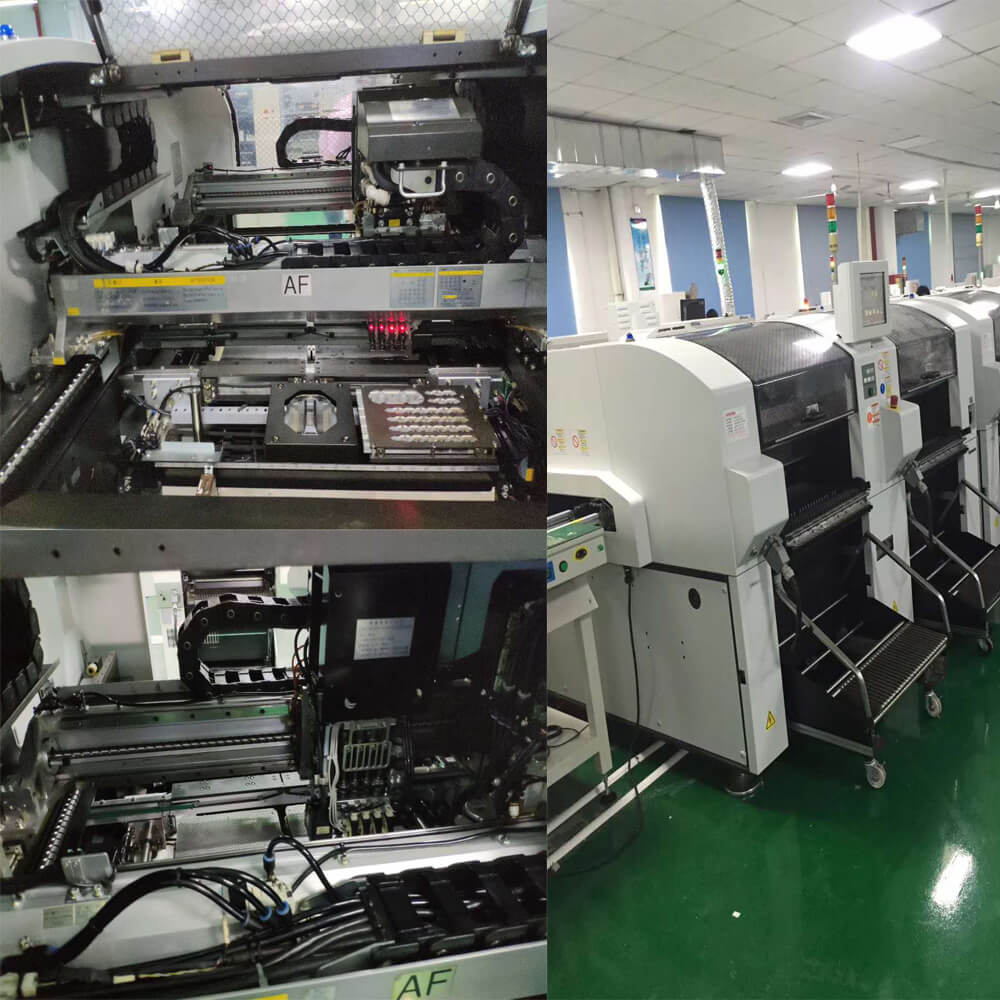

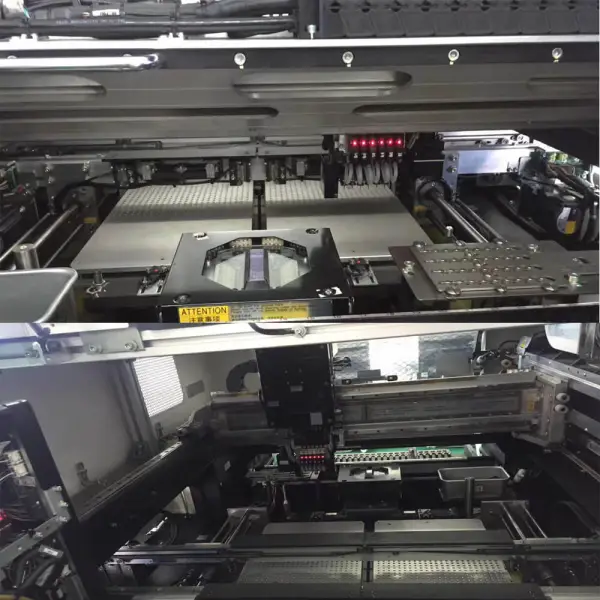

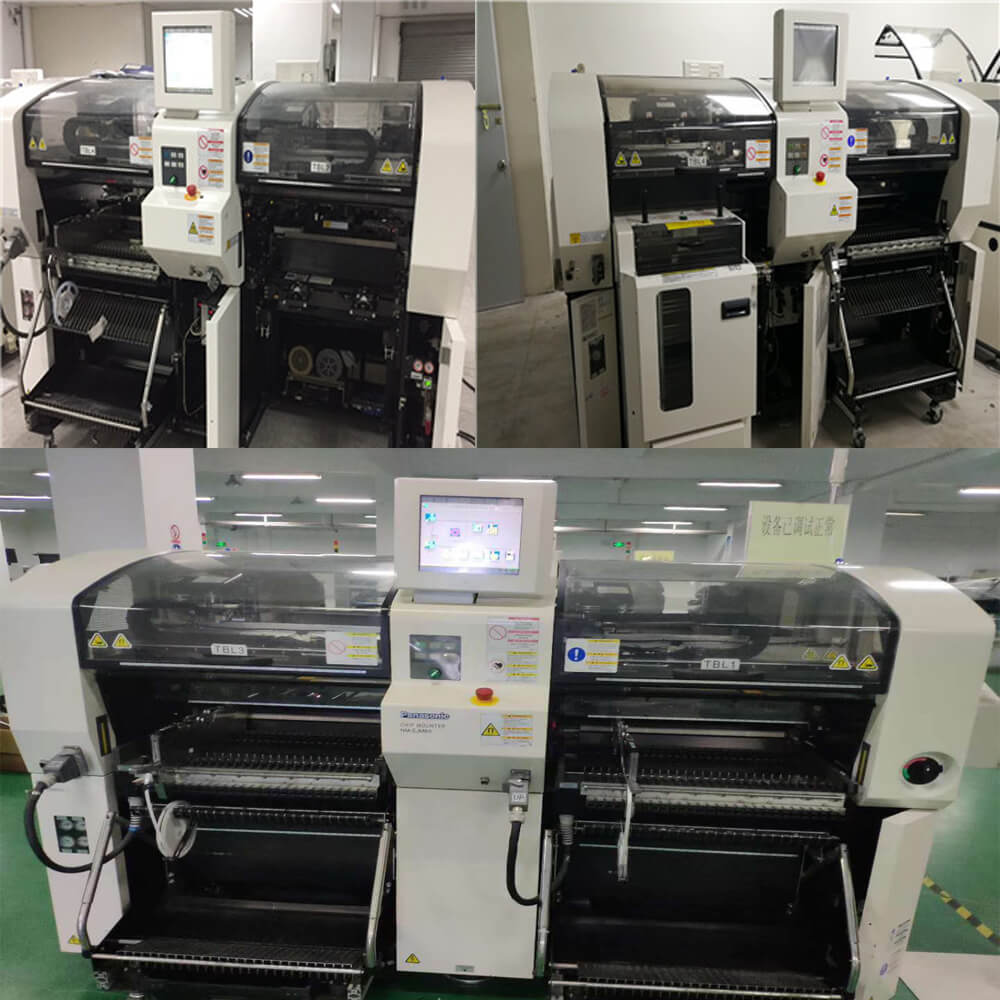

Panasonic CM602 used SMT Placement machine

Model ID

CM602-L

PCB dimensions (mm)

L 50 x W 50 to L 510 x W 460

High-speed head

12 nozzles

Max.speed

100 000 cph (0.036 s/chip)

Placement accuracy

±40 µm/chip (Cpk1)

Component dimensions (mm)

(01005") 0402 chip *5 to L 12 mm × W 12 mm × T 6.5 mm

High-flexibility head

LS 8 nozzles

Max.speed

75 000 cph (0.048 s/chip)

Placement accuracy

±40 µm/chip, ±35 µm/QFP 24 mm,
±50 µm/QFP <24 mm (Cpk1)

Component dimensions (mm)

(01005”) 0402 chip *5 to L 32 mm × W 32 mm × T 8.5 mm *8
When the generalized Ver.5 is optionally selected (01005”)0402 chip *5 to L 100 mm × W 50 mm × T 15 mm *6

Multi-functional head

3 nozzles

Max.speed

20 000 cph (0.18 s/QFP)

Placement accuracy

±35 µm/QFP (Cpk1)

PCB exchange time

0.9 s (Board length:up to 240 mm Under optimum conditions)

Electric source

3-phase AC 200, 220, 380, 400, 420, 480 V, 4.0 kVA

Pneumatic source *1

0.49 MPa, 170 L /min(A.N.R.)

Dimensions (mm)

W 2 350 x D 2 290 *2 x H 1 430 *3

Mass *4

3 400 kg
