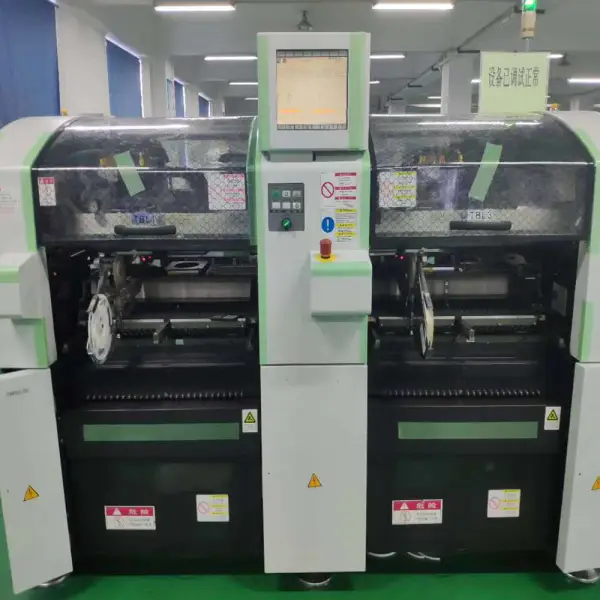

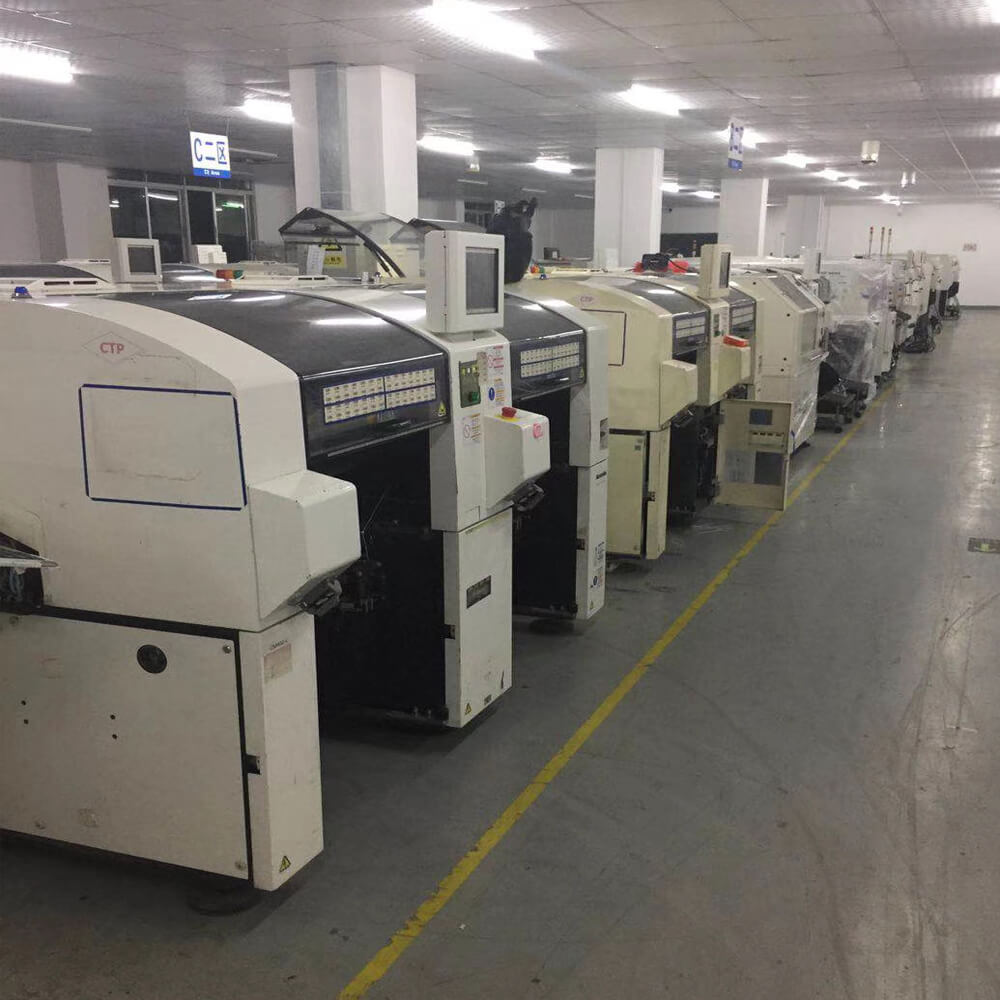

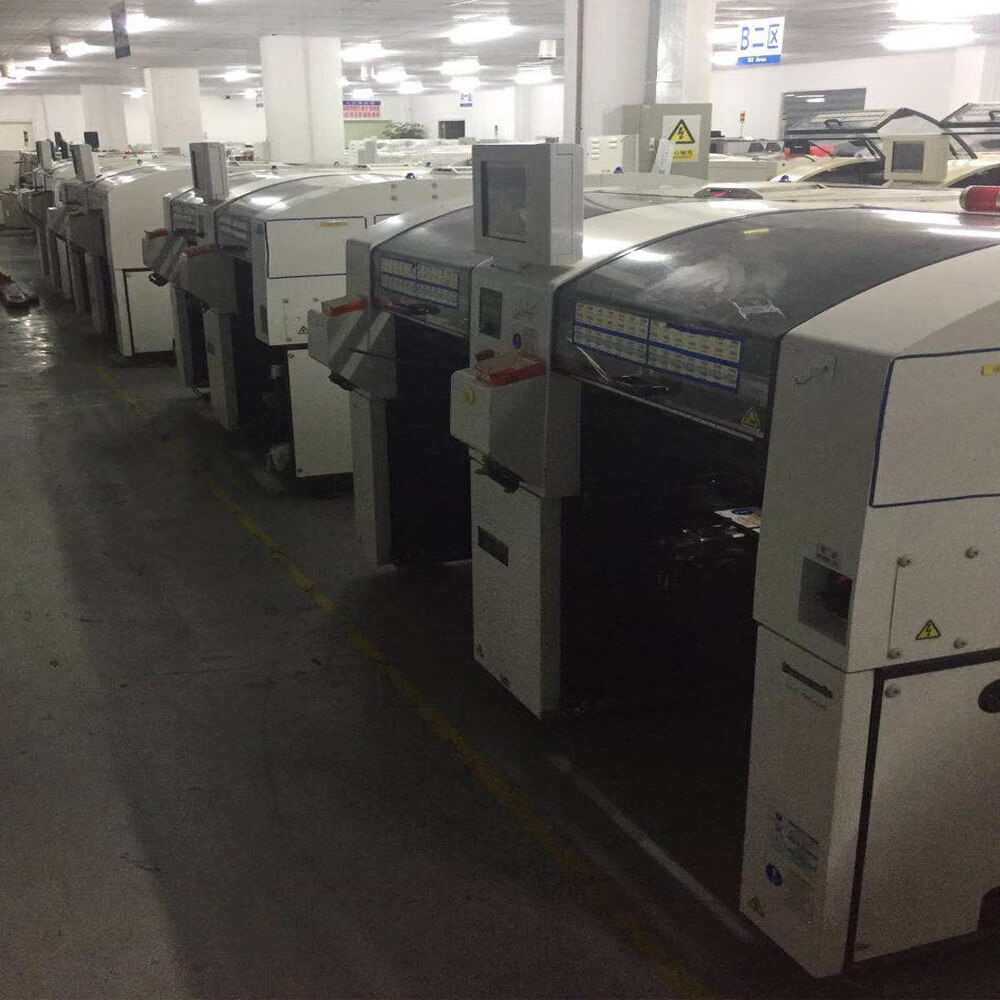

Panasonic CM202 used smt PCB pick and place machine
Japan brand CM202 used pick and place machine SMT chip mounting machine

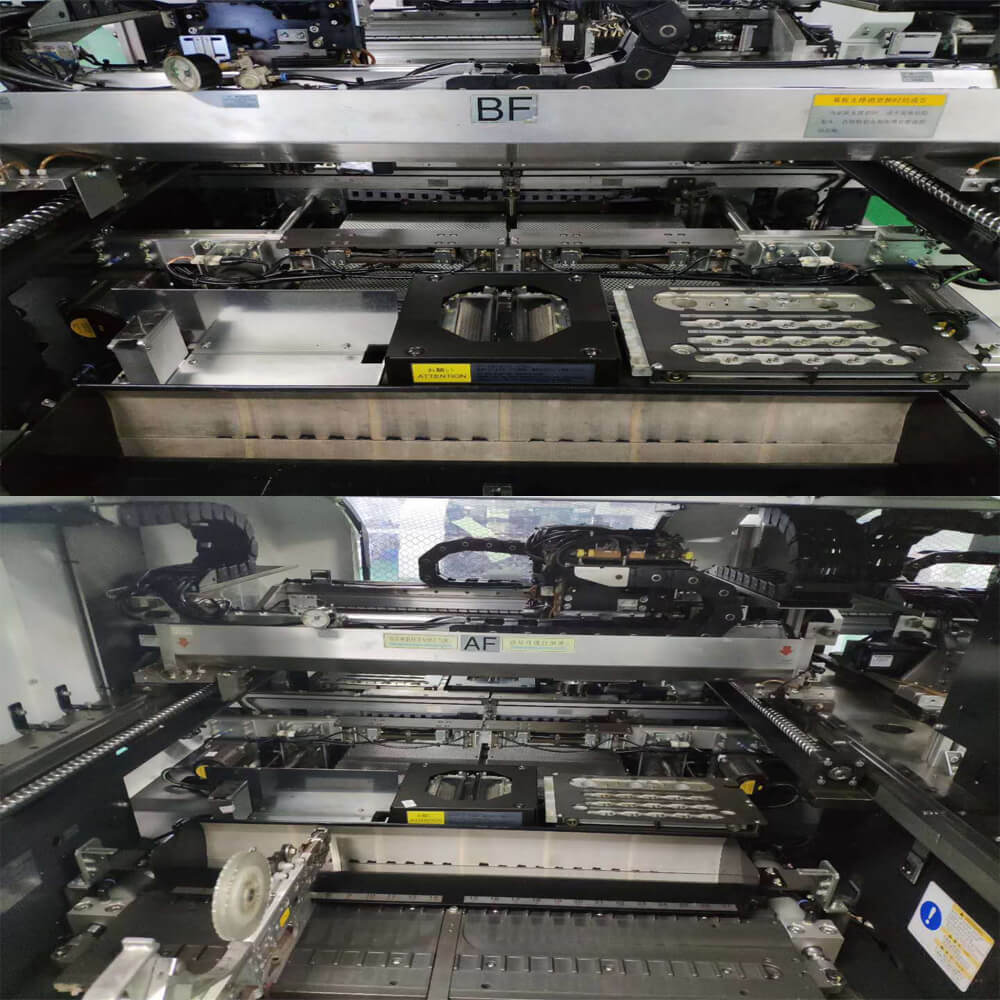

CM202 Newest Module:
Board conveyor
Under the substrate support
Stopper board
Cutting Unit
Hand set Tray
New pan with 8 Nozzle
Y-axis Twin motor
Cast chassis
Product features:
|
Items |
CM202 |
|||
|
|
Type A-1(high speed 12NZ Head) |
Type A-2 ( 8NZ Head) |
Type B (Multifunction 3NZ Head) |
|
|
Quality |
Mounting precision(μm) |
±50/Chip Cpk>=1.0 |
±50/Chip Cpk>=1.0 |
±50/Chip Cpk >=1.0 |
|
Productive |
Highest Tact (CPH/sec) |
25,000/0.144 |
19,000/0.189 |
7,200/0.5 |
|
|
Effectiveness Tact (CPH/sec) |
17,000/0.21 |
14,000/0.26 |
5,000/0.72 |
|
|
PCB transfer time (sec) |
3.5 or less (PCB Size:~330×250mm) |
||
|
|
Tape Splicing |
standard |
||
|
Element of stress |
PCB Size L×W×T(mm) |
50×50×0.3~460×250×4 |
||
|
|
Element Size(mm) |
0603~12 (thickness 6.5) |
0603~32 (thickness 8.5) |
0603~100*90 (thickness 25) |
|
|
Component supply form |
Tape,Bulk |
Tape,Bulk,Stick,Tray (Hand set/Tray Feeder) |
|
|
|
TapeEquipped with a number of varieties |
70 Slot?70 varieties (8/12/16mm)*8mm:Max 140varieties (Double T/F Specification) |
||
|
others |
Former equipment Swap |
Tape,Operability,FeederConnection,Nozzle, (CM212/CM402/CM602) |
||
|
|
Dimensions |
W1,530mm×D 2,160mm×H 1,430mm |
||
|
|
Power supply |
2.0 kVA (3-phase 200V) |
||
|
|
air source Supply |
0.49 Mpa,100 l/min |
||
