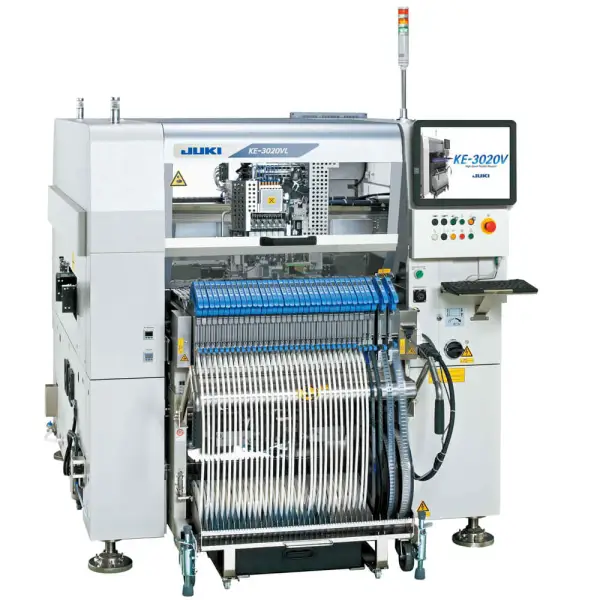

Juki KE-3020 SMT chip shooter with high placement speed
Introduce of JUKI SMT Pick and Place Machine:
JUKI has launched its new High-speed SMT Pick and Place Machine,Equipped with a newly developed parallel 8 nozzle head, the JUKI SMT Pick and Place Machine is capable of mounting a wide variety of parts and improving the mounting speed by up to 70%.
The JUKI Pick and Place Machine is robotic assembly machine for mounting electronic components on a "PCB" in the printed board mounting process. In addition to increasing the number of components mounted per cycle from six to eight, JUKI Pick and Place Machine also includes a new mechanism to improve the mounting speed by automatically changing the recognition sensor height.
Main Features of SMT Pick and Place Machine：
■ No head replacement, newly developed "Parallel 8 nozzle head" with auto-height component recognition sensor
■ Automatically adjust the component recognition sensor of the mounter head from 1 to 25 mm in 5 stages according to the PCB requirements. High productivity is achieved without replacing the placement head, even for parts with different heights, from very small parts to large parts.
■ High placement capacity of 40,000 CPH
■ The distance between the pickup and placement positions is shortened by adopting the new SMT Pick and Place Machine RF series electric feeder.
■ Extensive component compatibility
■ Components from 0.2 mm × 0.1 mm to 74 mm square, 50 mm × 150 mm, and the height of parts up to 25 mm can be mounted. Component range and placement speed have been improved by changing the image recognition to four-part simultaneous recognition and using high-speed motors on the θ (theta) axis of the nozzle. In addition, we adopted a new electric feeder that is smaller, lighter, and thinner. The feeder capacity has been increased to 112 per RS-1 to improve capability of a single machine solution.
■ Implementation of smart mounting process
|
Specifications |
SMT Pick and Place Machine |
|
Board size |
50×50㎜～650×370㎜（Single clamping） |
|
Component height |
25㎜ |
|
Component size |
0201※～□74㎜/50×150㎜ |
|
Placement accuracy |
Placement accuracy |
|
Feeder inputs |
max.112（Using RF feeders） |
|
Placement speed |
Optimum 42,000CPH |
|
Conveyor specification |
standard |
RFQ:
1) How can you guarantee your sales’ quality?
We guarantees that every set of machines are under rigorous testing before they are delivered to you, to ensure the excellent performance of all products.
2)What payment methods your company accept?
We accept most of the payment methods,but mainly accept T/T.
3) I would like to ask you if it's possible to have my logo on the product.
We hope you know that our company Aogeo perfectly support customized logo service,we’re do this. Besides, it's totally free,so just tell us your requirements.
4) MOQ ?
1 set machine, mixed order is also welcomed.
5) How can I buy this machine from you? ( Very easy and flexible !)
A. Consult us about this product on line or by e-mail.
B. Negotiate and confirm the final price , shipping , payment methods and other terms.
C. Send you the proforma invoice and confirm your order.
D. Make the payment according to the method put on proforma invoice.
E. We prepare for your order in terms of the proforma invoice after confirming your full payment.
And 100% quality check before shipping.
F.Send your order by air or by sea.
