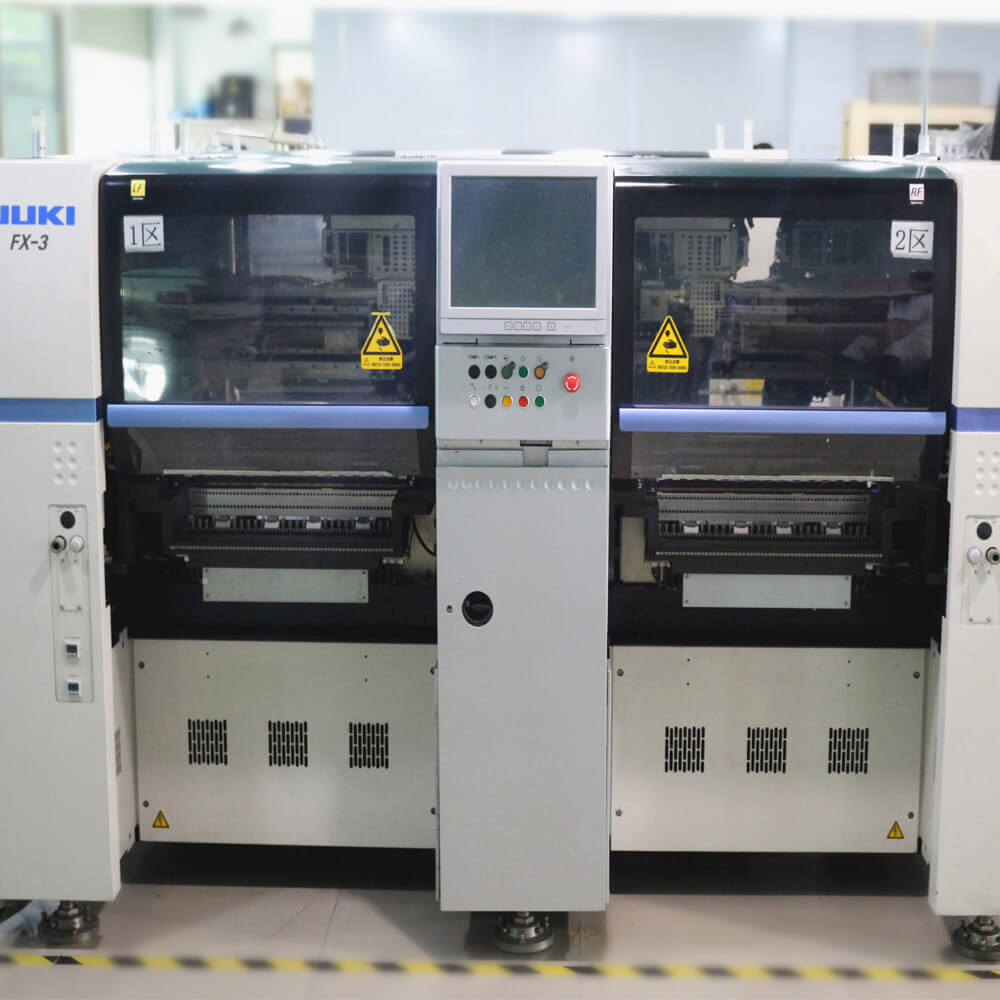

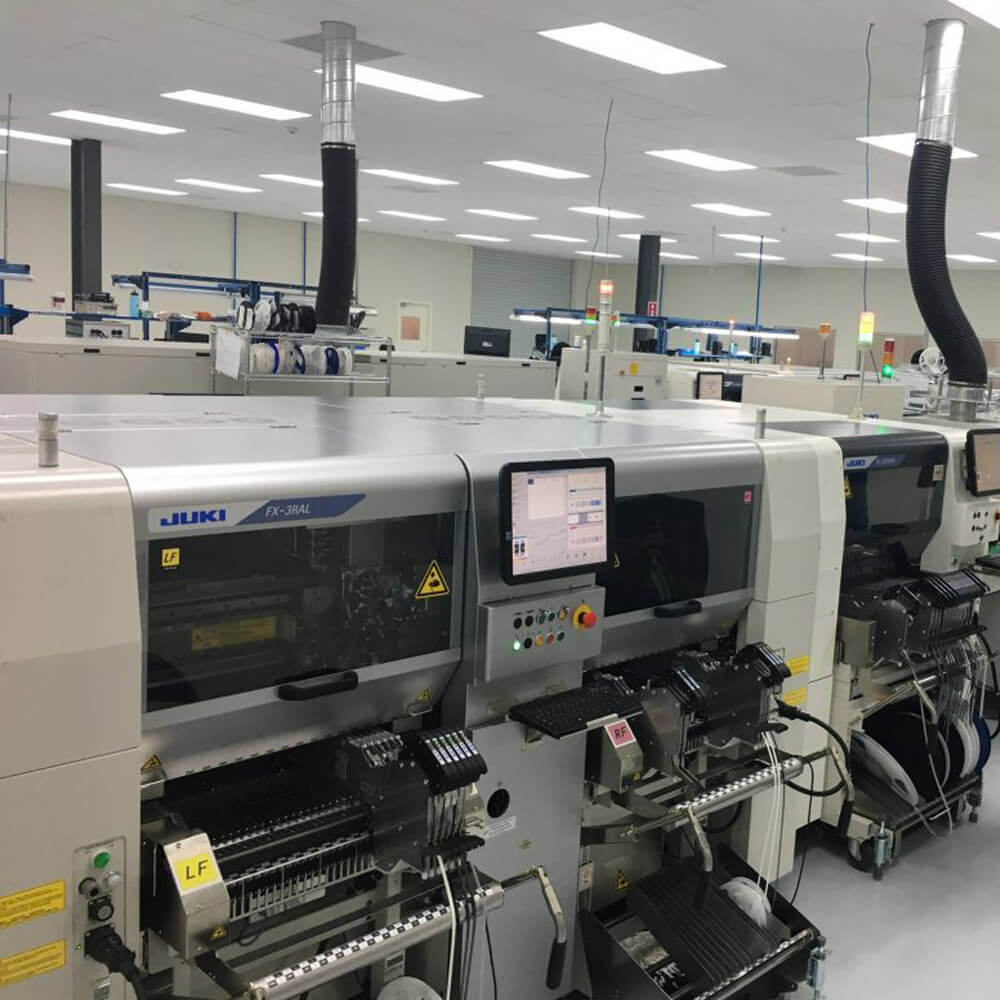

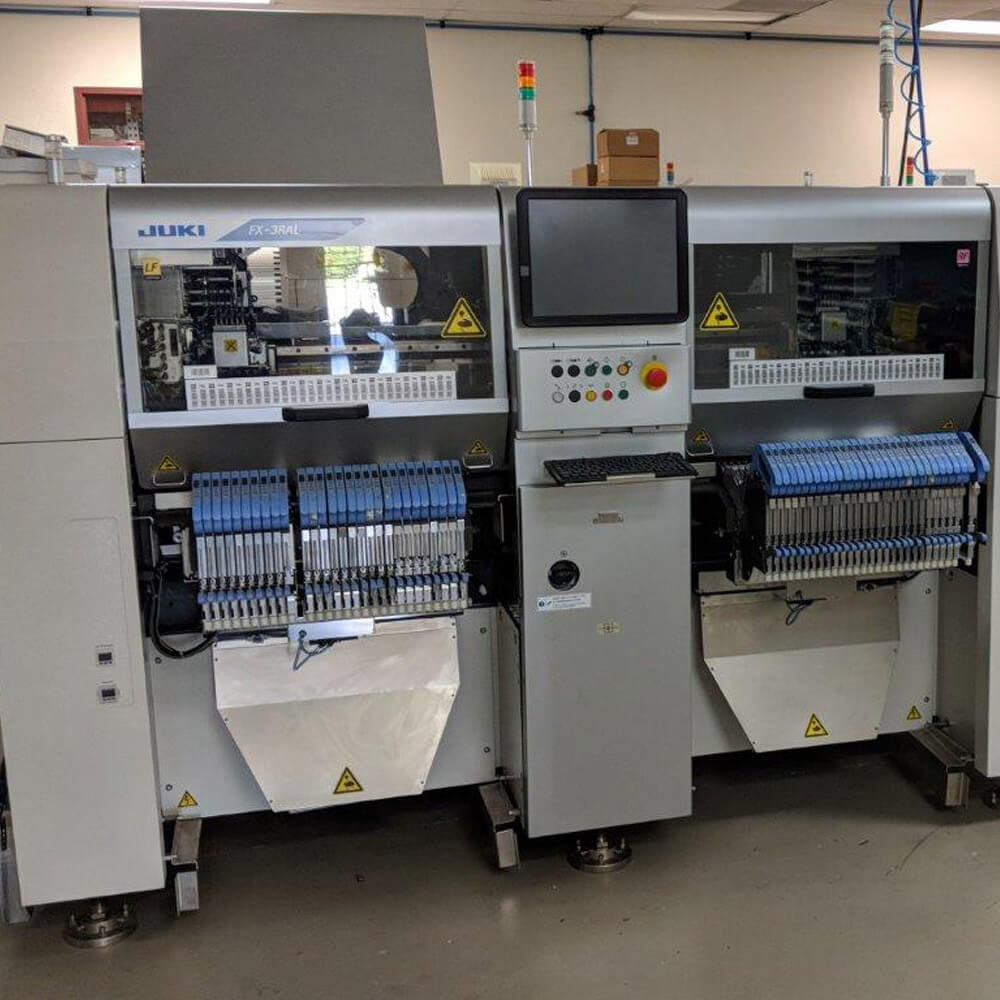

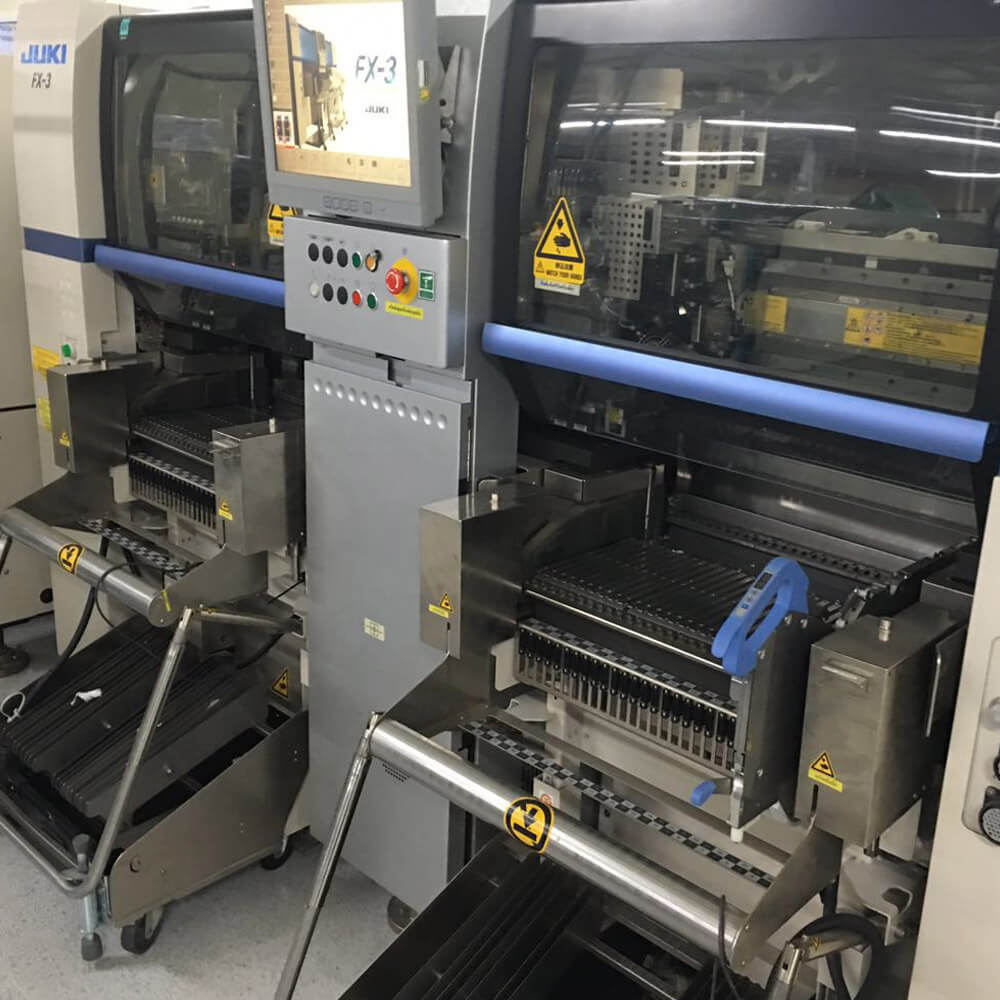

Juki FX-3RAXL high speed Modular Mounter chip mount pick and place machine
Features
■ Chip speed
90,000CPH (0.040Sec./chip/Optimum）
66,000CPH (IPC9850)
■ 0402mm(01005 inch) ~ 33.5mmx33.5mm
■ Laser recognition : ±0.05mm(±3σ)
■ On-the-fly centering using integrated laser
■ 2 stations, 4 gantries, 4 placement heads, 24 nozzles
■ Linear servo motor XY drive with full closed-loop control
■ Holds up to 240 components
■ Electrical or mechanical feeder trolley
High Productivity
JUKI’s FX-3 achieves a mounting performance of up to 90,000 CPH (optimum) thanks to four independent cross-rails, each with a six-nozzle placement head set on two mounting stations, providing the machine with 24 vacuum nozzles in total.
Compatible Feeders
The FX-3 supports mechanical and electronic feeders that can be used optionally with feeder trolleys if required. This provides companies with the flexibility to keep using their existing equipment for the long term.
User Friendliness
JUKI’s FX-3 includes a user-friendly operator interface with a 15-inch LCD touchscreen both at the front and the back of the machine for easy, intuitive use. This allows users to create pick-and-place programs even without extensive technical knowledge.
Specifications
*1 |
||||||||||||||||||||||||||||||||||||||||
*2
This speed does not apply to XL board size.
