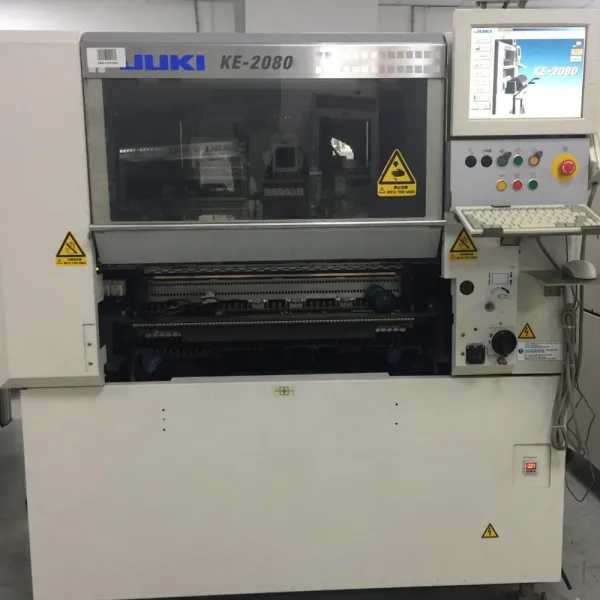

Juki KE-2080 smt pick and place machine
Parameter :
|
Board size |
M size (330×250mm) |
||
|
L size (410×360mm) |
|||
|
L-Wide size(510×360mm) (option) |
|||
|
E size (510×460mm)*1 |
|||
|
Component size |
Laser recognition |
Laser recognition |
0402 (01005)~33.5mm |
|
Vision recognition |
Standard camera |
3mm~74mm or 50×150mm |
|
|
High-resolution camera (option) |
1.0×0.5mm*3~48mm or 24×72mm |
||
|
Placement speed |
Chip |
Optimum |
0.178Sec./chip(20,200CPH) |
|
|
IPC9850 |
16,700CPH |
|
|
IC*4 |
1,850CPH |
||
|
|
4,860CPH*5 |
||
|
Placement accuracy |
Laser recognition |
±0.05mm(Cpk ≥ 1) |
|
|
|
Vision recognition |
±0.03mm (±0.04mm when using MNVC) |
|
|
Feeder inputs |
Max. 80 on 8mm T/F*6 |
||
RFQ:
1) This is the first time I use this kind of machine, is it easy to operate?
There is english manual or guide video that show you how to use machine.
If you still have any question, please contact us by e-mail / skype/ phone /trademanager online service.
e-mail : elaine@smdmachine.com
skype:elaine19920114
phone/whatsapp: +86 18898671670
2) If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period.
If the part is less than 0.5KG, we pay the postage.
If it exceeds 0.5KG, you need to pay the postage.
3) MOQ ?
1 set machine, mixed order is also welcomed.
4) How can I buy this machine from you? ( Very easy and flexible !)
A. Consult us about this product on line or by e-mail.
B. Negotiate and confirm the final price , shipping , payment methods and other terms.
C. Send you the proforma invoice and confirm your order.
D. Make the payment according to the method put on proforma invoice.
E. We prepare for your order in terms of the proforma invoice after confirming your full payment.
And 100% quality check before shipping.
F.Send your order by air or by sea.
Contact: Elaine
Tel: 86-755 -29605790
Phone: 86-18898671670 / 86-15811817234
Whatsapp: 86-18898671670
wechat: czsffy1223
E-mail: elaine@smdmachine.com / smttechpnp@gmail.com
Address: Shenzhen/Zhongshan, Guangdong Province, China
