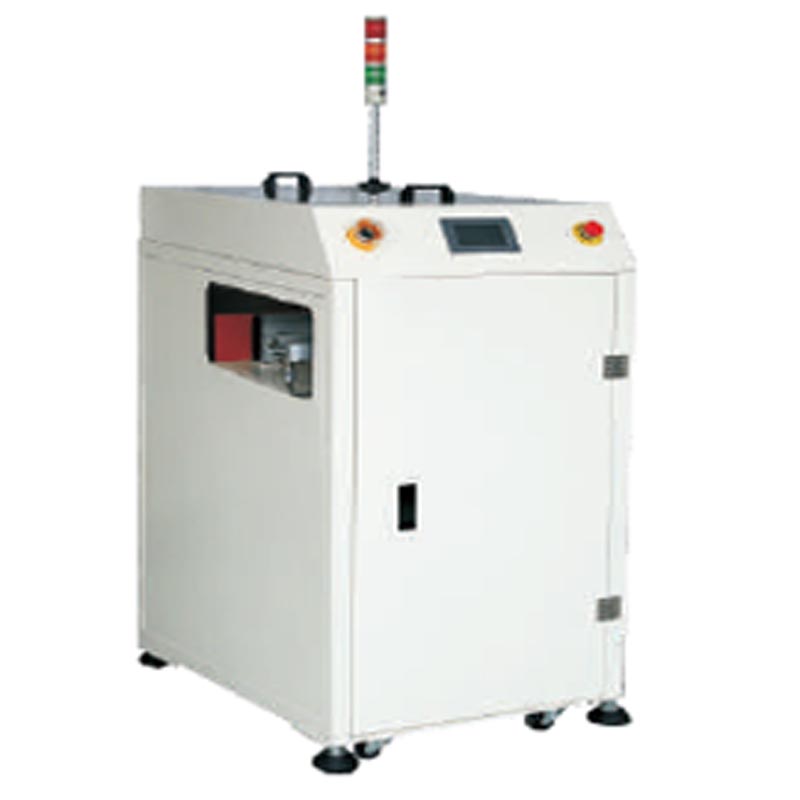

SMT Automatic Vacuum PCB loader machine
This machine is used for loading pcb in the smt production line.
Feature:
■ Full closed design make sure the highest level of safety production.
■ Top safety shell can be open for convenient maintenance
■ Touch screen
■ Nozzles can be adjusted for fix PCB
■ Hand-control screw for the PCB width
■ Less floor space
■ Compatible SMEMA interface
Specification:
|
PCB size |
50*50mm-600*400mm |
|
Machine dimension |
720*1100*1250mm |
|
Weight |
Approx. 130kg |
|
PCB capacity |
300pcs(0.6mm thickness) |
|
Air pressure |
4-6 Bar |
|
Air flow |
max 30L/min |
|
Transport height |
900±20mm(or customized) |
|
Transport direction |
L-R(Option: R-L) |
|
Cycling time |
about 11s |
|
Power |
220V Single phase |
|
Electric Load |
Max 180V |
