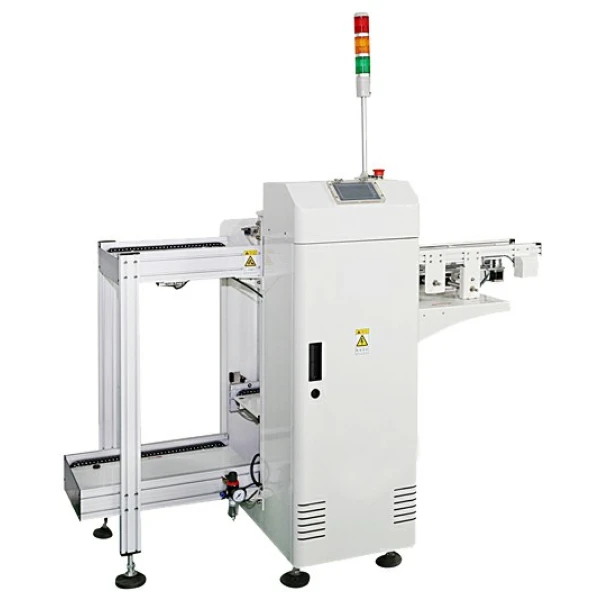

LK-250 pcb automatic unloader machine
1) Machine Size(L*W*H):1700*780*1200
2) 2)Special Aluminum alloy guide rails and rubber belt
3) Magazine lifting with screw rod by 90W electric-brake motor which made in Taiwan
4) Pneumatic PCB clamping structure
5) Attach one set 0.7m length pcb conveyor
6) Magazine size(L*W*H): 355*320*565mm
7) PCB max size(L*W):330*250mm
8) Direction:R-L/L-R
9) Adjustable Lifting distance:10,20,30,and 40mm
10) Programmable Mitsubishi PLC and controller
11) PCB Automatic loading to conveyor
12) Operation Control system: Touch Panel controlled interface
13) Power: 220V 50HZ
14) Air pressure: 0.4-0.6MPa
15) the max store PCB Quantity:50pcs
16) One set Electronic control box
