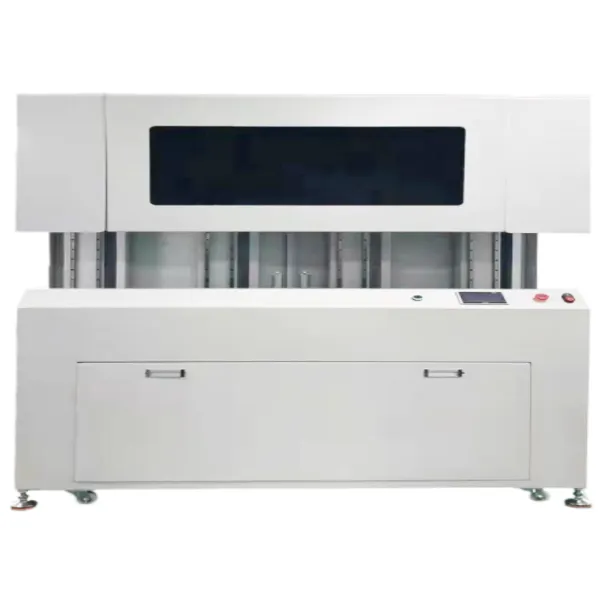

COB strip light buffer machine
|
Buffer machine |
|
|
Model |
LK-B15 |
|
Parameter |
|
|
Robotic hand |
4pcs |
|
Storage method |
Auto storage and playback |
|
PCB width |
100-150mm |
|
Storge length |
About 15m-18m |
|
Transport direction |
L-R(R-L) |
|
Transport method |
stepping |
|
Storge height |
1700mm |
|
PCB transport speed |
0-2m/min |
|
Application |
soft flexible: COB, CSP, FPC etc.. |
|
Power |
220V 50HZ |
|
Start power |
2KW |
|
Working power |
0.4KW |
|
Abnormal alarm |
Automatic alarm for full or lack of material |
|
Storage time |
About 10-30mins |
|
Dimension |
1650*600*2100mm |
|
Weight |
200kg |
|
Air source |
0.4MPa |
|
Color |
White and black |
|
Control system |
|
|
Mechanical transmission motion system |
material transport, load and unload transport |
|
software system |
PLC motion control system |
|
Pneumatic control system |
The positive pressure cylinder action system cooperates with the stepping motor to realize the material transmission by the cylinder pressure |
|
Circuit system |
Power system, PLC system, stepping motor system, load and unload system |
|
Dynamic system |
cylinder, stepping motor, adjustable motor dynamic system |
