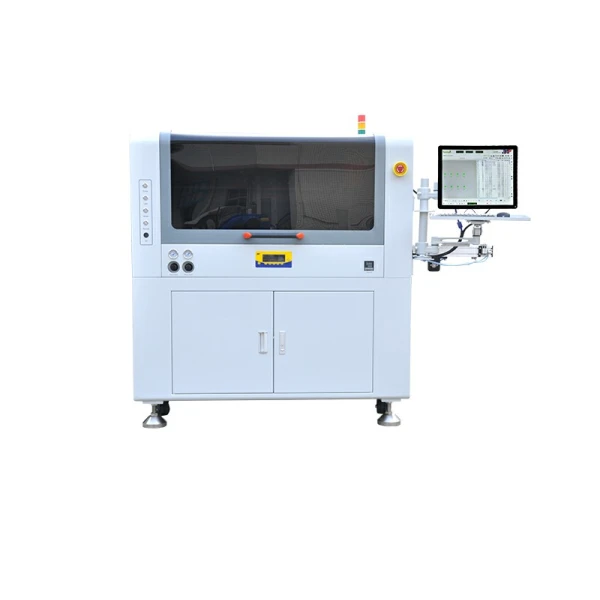

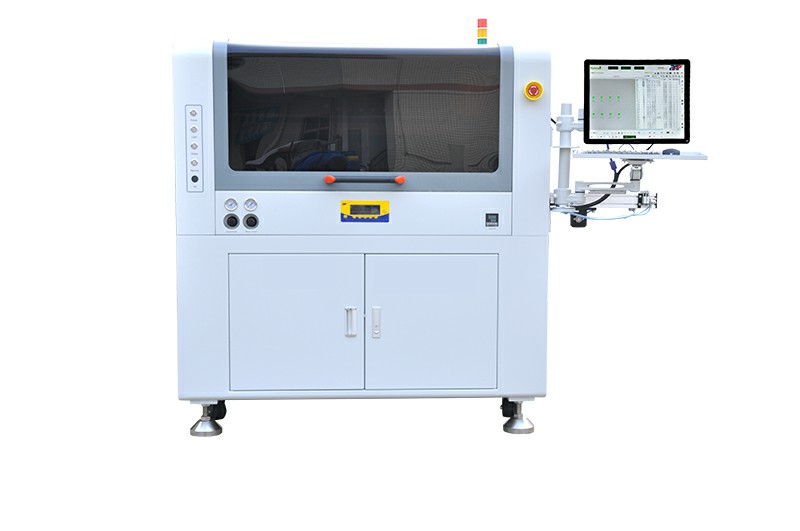

High Efficiency Automated Gluing Dispenser Machine for Lens
Introduction:
LK-900 fully automatic high-speed dispensing machine is adopting an industry computer with a motion control card and CCD visual system as its control mode. The industry computer is the main host of machine and the motion control card will control the servo motors' movement. The CCD visual system will provides an accurate positioning and automatic correction of the positioning error.
Specification
| Model | LK-900 |
| Outer Dimension(L*W*H) | 1380*1300*1480 mm |
| Weight | 900KG |
| Control Mode | PC+Motion Card |
| Software | Windows+APM AD |
| Programming | Teaching + CAD Drawing+Patch file |
| Driving | Servo Motor + Ball Screw |
| Max. Speed | 1000 mm/s |
| Max. Board Size(L*W) | 900*500 mm |
| Max. Component Height | 50 mm |
| Repeat Accuracy | ±0.01 mm |
| Track Quantity | 1 |
| Track Driving | Stepping driver+Stepping Motor |
| Max. Load | Max 3Kg |
| Width Adjusting Mode | Auto |
| Adjusting Speed | 800 mm/min |
| Width Adjusting Range | 80~500 mm |
| Working Height | 920±20 mm |
| Transfer Speed | 0~6 m/min |
| Transfer Direction | L-R or R-L |
| PCB Edge space | 5mm(option:3mm) |
| Communication Port | SMEMA |
| Air Pressure | 0.4~0.6 MPa |
| Laser Altimeter | Optional |
| Micro Weight Control System | Optional (accuracy 0.1mg) |
| UPS | Optional |
| Barcode Scanning | Optional |
| External Material Supply | Optional |
| APM High-speed Injection Valve | Optional |
| Auger Valve | Optional |
| Tilt Angle of Auger Valve | 0°/ 35°(Optional) |
| Rotation Angle of Auger Valve | ±180°(Optional) |
| Power Supply | 200~240VAC 50~60H |
| Total Power | 2.8KW |
