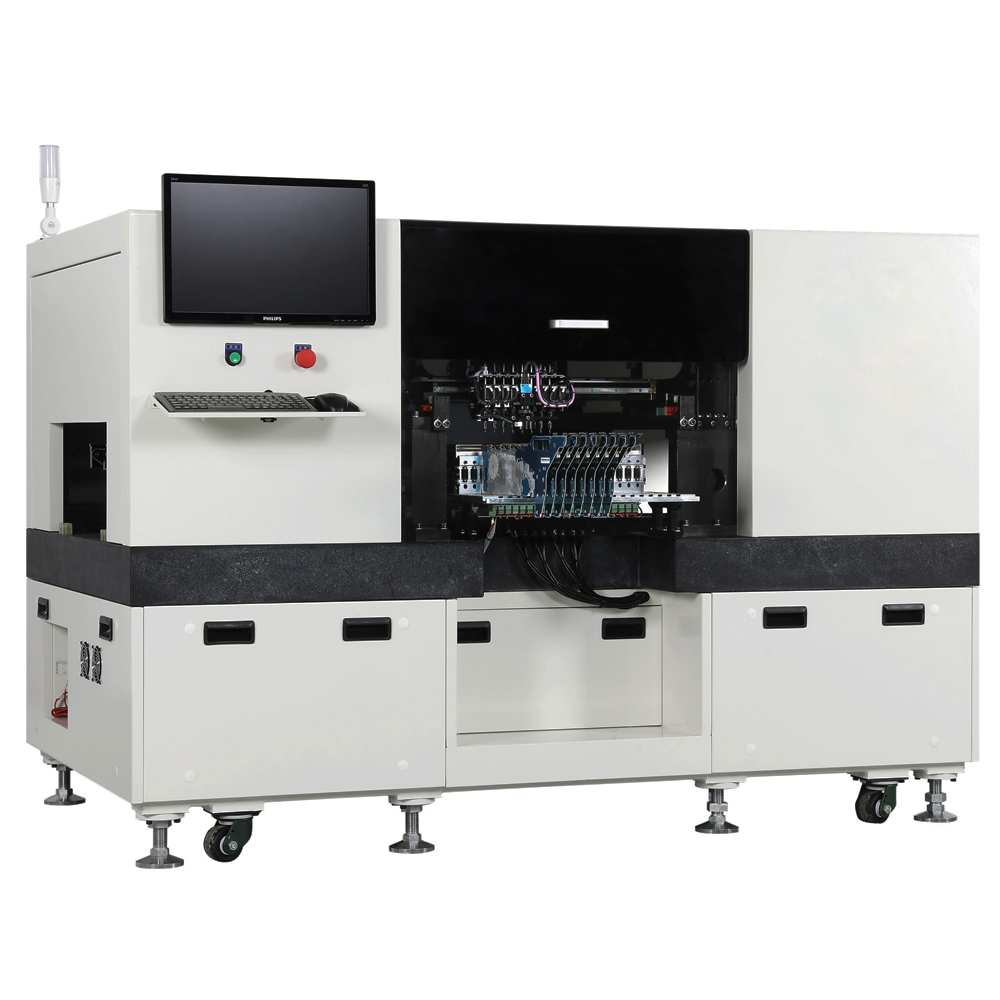

Alignment

Flying  Vision Alignment System

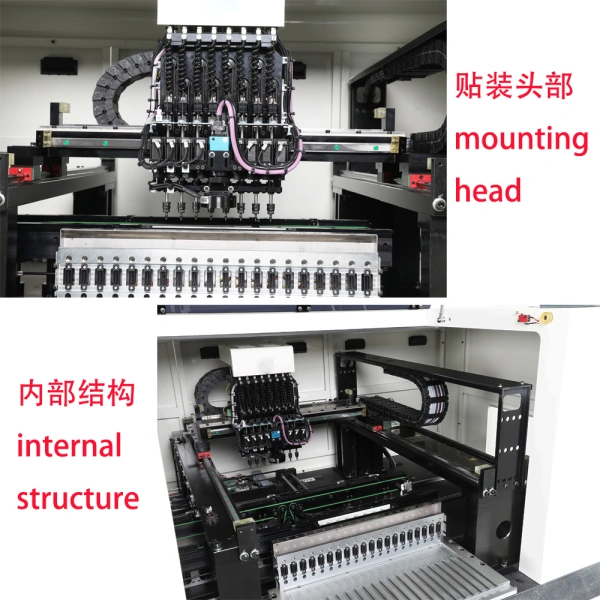

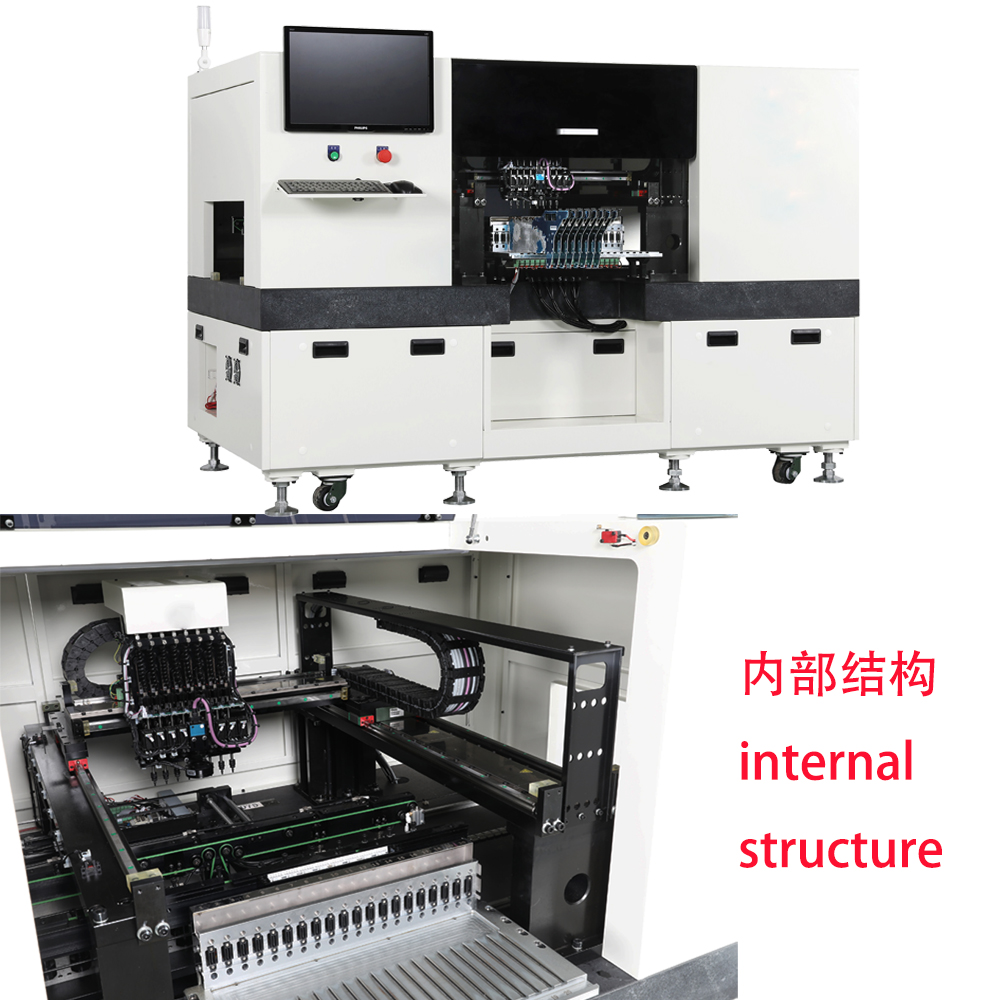

Number of  Spindles

8 Spindles  x 1 Gantry

Placement  Speed

FOR LENS

18000CPH  (Optimum)

For LED

40000CPH  (Optimum)

Placement Accuracy

±0.03mm

(Based on  the standard chips)

Component  Range

Vision  Alignment

For all  General lenses

(Maximum  15.8MM)

Max Height

H=12mm

Board  Dimension(mm)

Minimum

50(L) x  50(W)

Maximum

1,200(L) x  460(W)

PCB  Thickness

0.5 - 3.0

Board Handling  Method

Inline  Conveyor

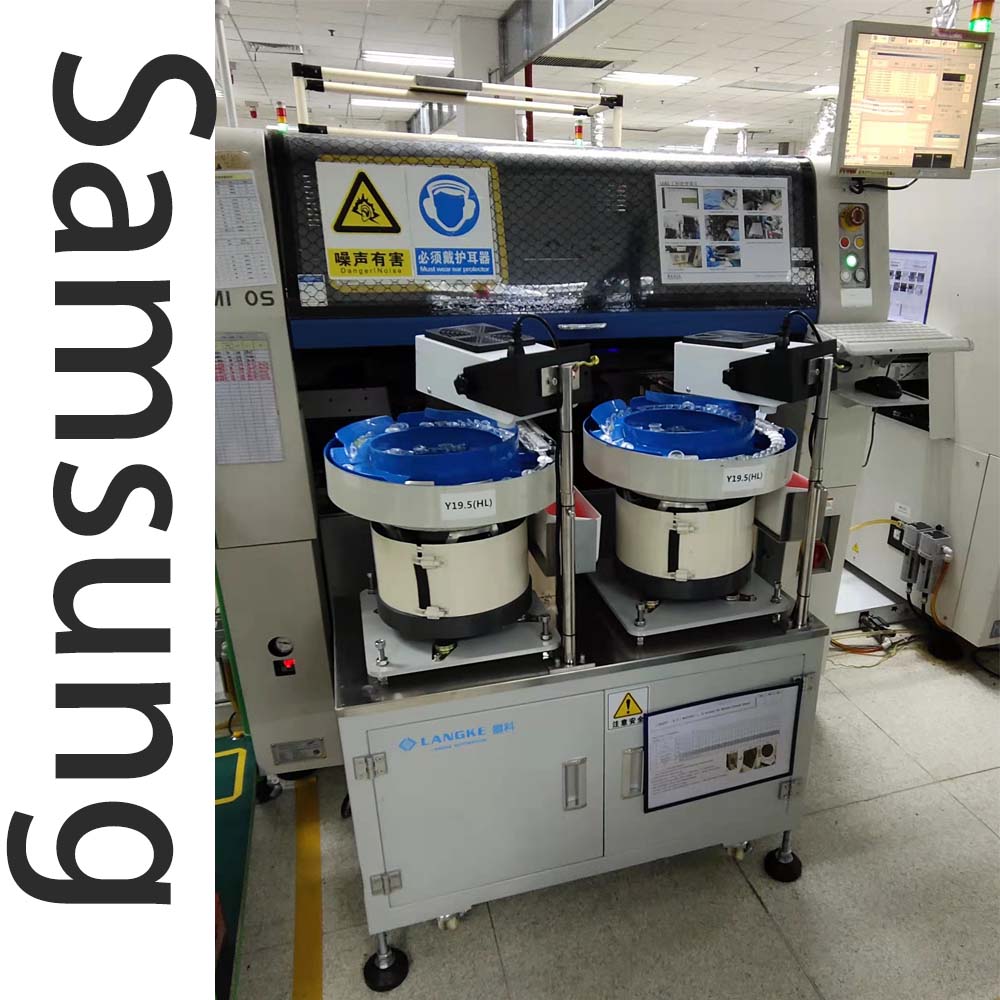

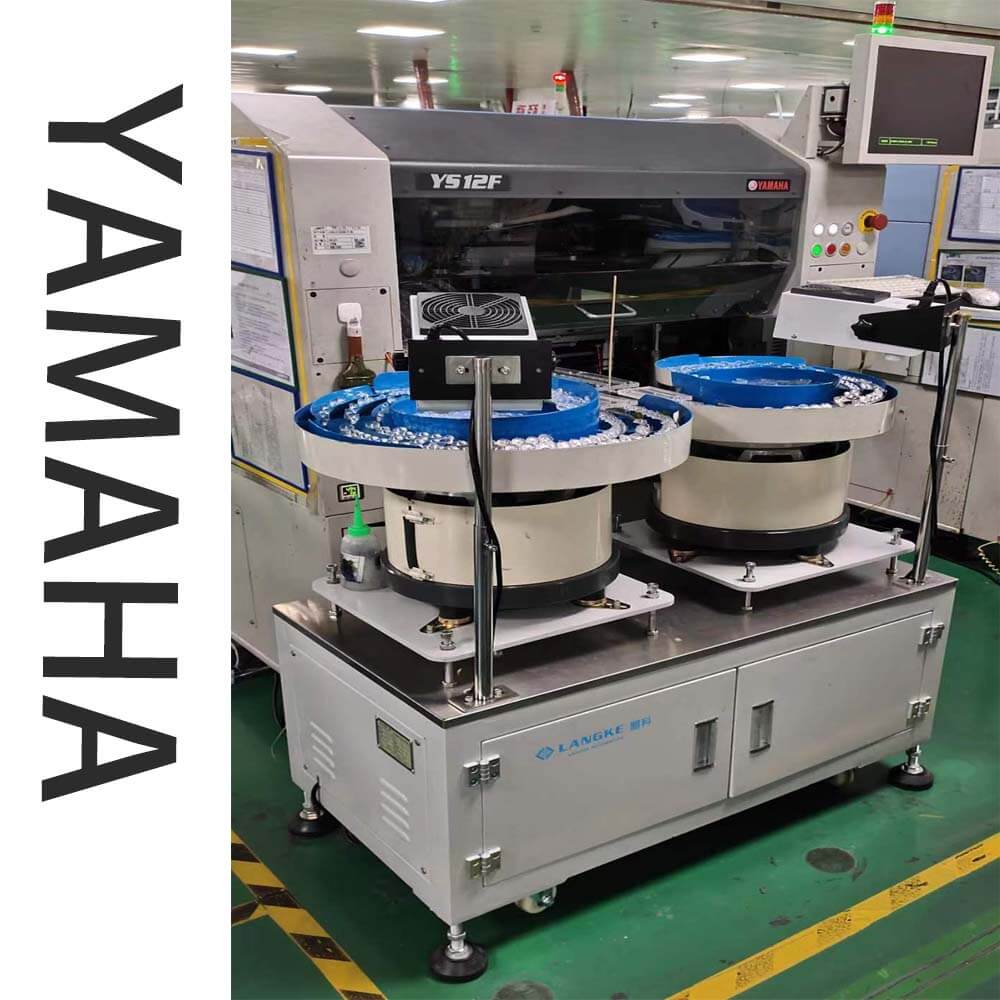

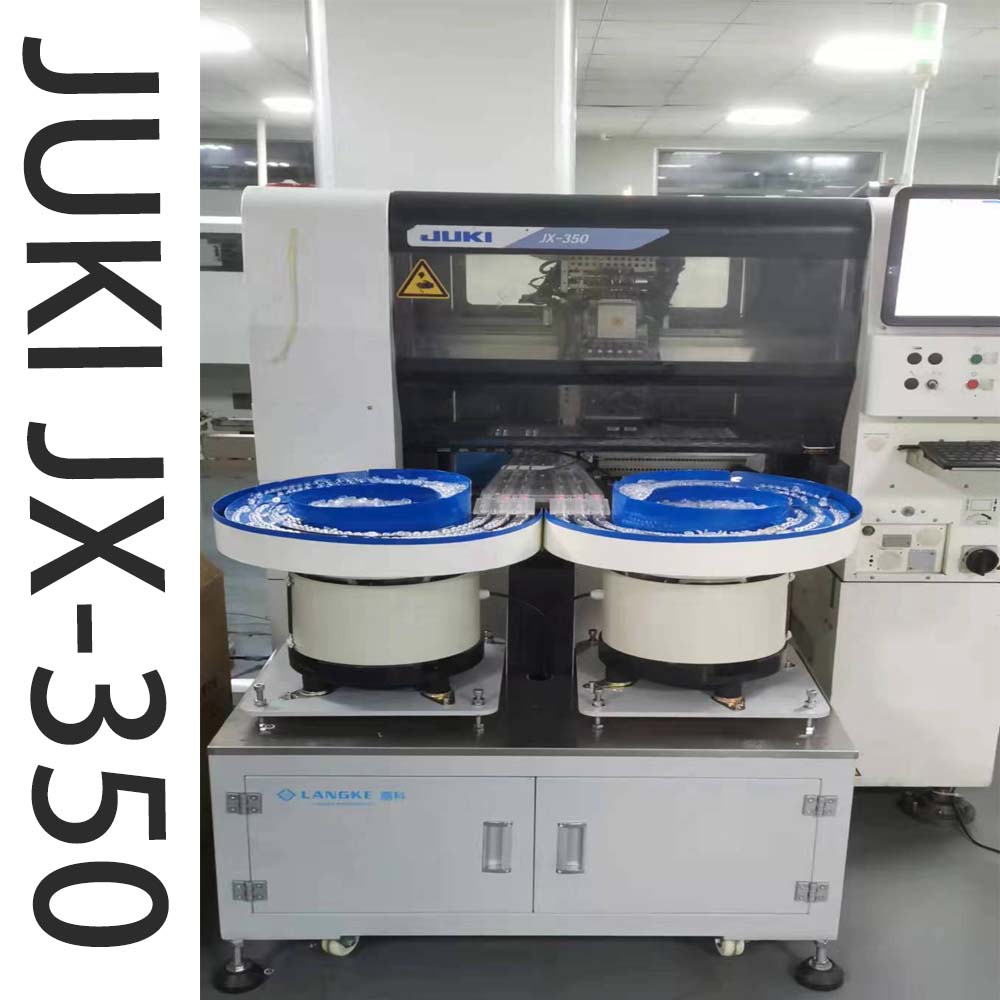

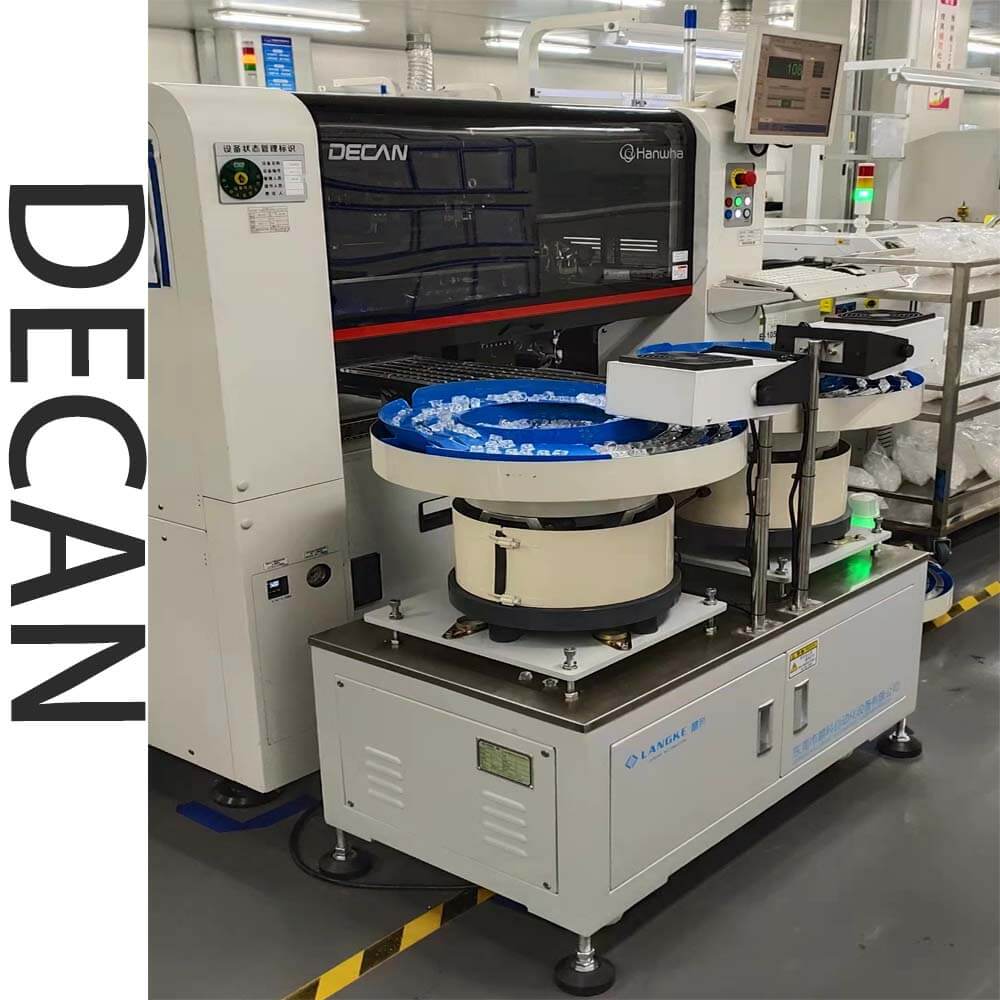

Lens  Feeding

Customized  Vibration Tray

Tape  Feeder

Feeder  Type

Electric  Feeder

Feeder  Capacity

20 (12mm)

Utility

Power

AC  220V/240V 50/60Hz, Single phase

Max 3.2KW

Air  Consumption

0.55-0.7MPa  (5.6-7.1kgf/cm2)

Mass

Approx.  1680kg + 100kg

External  Dimension(mm)

2,000(L) x  1,400(D) x 1,400(H)
