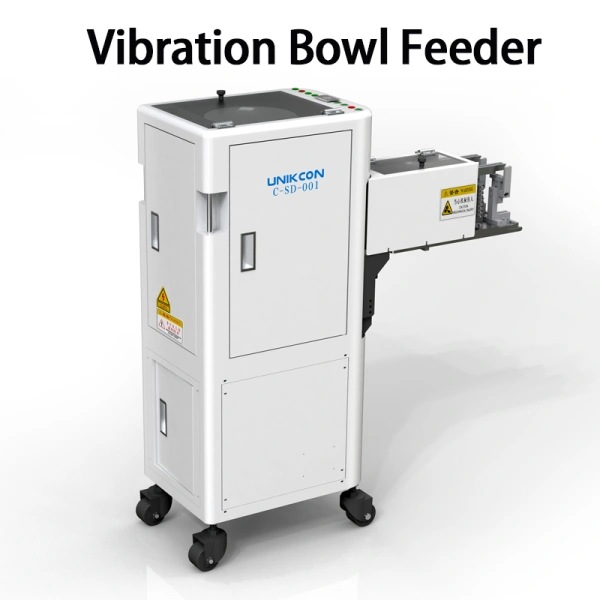

Vibration Bowl Feeder for unpack components
keywords: bowl feeder, bowl feeders, tht bowl feeder, dip bowl feeders, radial tape feeder, radial feeder, Axial feeder, Axial tape feeder, dip feeder, tht feeder, insertion machine feeder, insert machine's feeder, placement machine's feeder, tray feeder, linear feeder, linear bulk feeder, bowl feeder...
| 设备名称 Name | 振动盘供料器 bowl feeder | |
| 项目内容 item | 技术指标 data | |
| 基础参数 basic data | 型号 model | C-SD-001 |
| 供料器额定电压 Voltage | 单相AC 220V，50Hz | |
| 供料器额定功率 Power | 250W | |
| 压缩空气气压 Air source | 0.45-0.6Mpa | |
| 供料器重量(约) weight | 180KG | |
| 供料器外形尺寸 Dimension | 供料器本体长度 L:950±10mm | |
| 供料器本体宽度 W:350±5mm | ||
| 供料器本体高度 H:1150±25mm | ||
| 工作时噪声限值 noise limited | ≤70dB | |
| 功能参数 function data | 储料数量 Quantity of stock | 100-500PCS |
| 供料节拍 feeding speed | 1.5s/ pc | |
| 卡料率 failure rate | 0.3%-0.6% | |
| 元件参数 component data | 元件尺寸(长方形) component size (rectangle) | 长度方向L:L+1~2;L≤30mm |
| 宽度方向W:W±0.1:W≤15mm | ||
| 高度方向H:H+0.5:H≤24mm | ||
| 元件尺寸(圆柱型) component size (Cylindrical) | 长度方向L:L+1~2;L≤25mm | |
| 直径尺寸D:D±0.1;D≤25mm | ||
| 元件引脚间距公差P Component pin spacing tolerance P | P±0.1; | |
| 元件引脚直径φd Component pin diameter φd | φd±0.1; | |
| 元件引脚长度t component pin lead length | t±0.5;2.8mm≤t≤5mm | |
| 元件引脚方向 Component pin direction | 竖直向下平行于重力方向 Vertically downward, parallel to the direction of gravity | |
