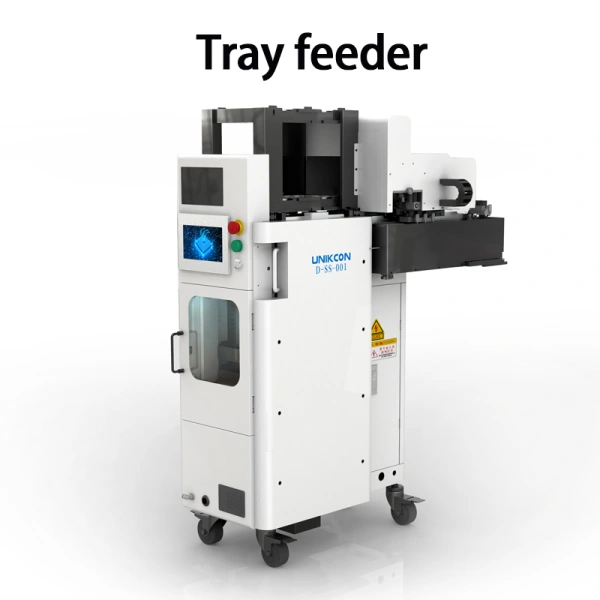

Tray feeder:
1. Applicable material types: audio stand, display screen, network port, transformer, connector, AC socket ect.
2. Tray material: PET blister tray, foam tray.
3. Tray hardness requirements: Naturally placed without deformation, in line with the shape and positioning requirements of the tray.
4. The orientation of the pins of the components in the disk: the pins are facing down (other directions need to add custom mechanisms).
5. The gap between the disc loading components: the gripper reclaims >4mm; the suction nozzle takes >1mm.
6. The gap between the components in the tray:0.2-0.5mm; ensure that the components are placed in the same direction and height.
7. Requirements for the positioning grid of the tray: each component has a separate positioning grid.
Name | tray feeder | |
Item | Data | |
Basic data | model | D-SS-001 |
Voltage | Single phase AC 220V，50Hz | |
Power | 250W | |
Air source | 0.45-0.6Mpa | |
Feeder weight | 45KG | |
Feeder Dimension | L:950±10mm | |
W:350±5mm | ||
H:1150±25mm | ||
noise limited | ≤65dB | |
Function data | Quantity of stock | ≤10 boxes |
feeding speed | 2s/ pc | |
failure rate | 0.45%-0.6% | |
Component data | component size (rectangle) | L: L+1~2; L≤50mm |
W: W±0.1; W≤50mm | ||
H:H+0.5; H≤30mm | ||
Blister box size | L: L+1~2; L≤270mm | |
W：W±0.1；W≤190mm | ||
H：H±0.5; H≤33mm | ||
edge：≥5mm | ||
Component pin spacing tolerance P | P±0.1; | |
Component pin diameter φd | φd±0.1; | |
component pin lead length | h±0.5;2.8mm≤h≤5mm | |
Component pin direction | Vertically downward, parallel to the direction of gravity | |
