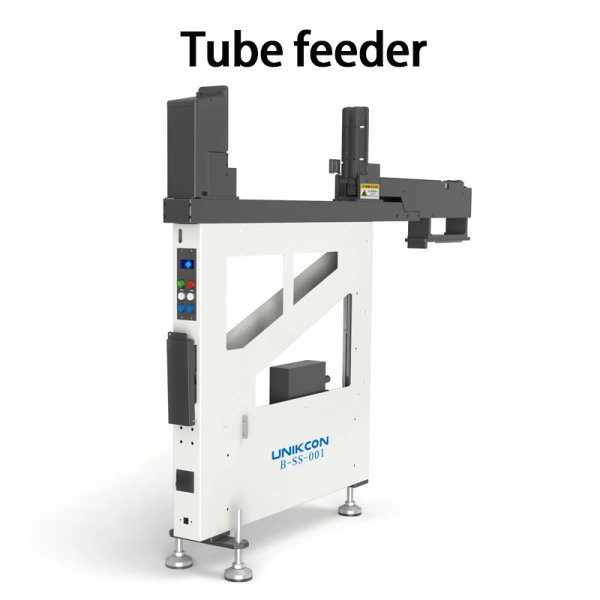

THT Odd form feeder design and manufacturing for EMS smart factory
Applicable material types: IC, relay, bridge stack, triode, toggle switch, transformer etc.
Tube material： PVC, aluminum tube
Name | Tube feeder | |
Item | Data | |
basic data | model | B-SS-001 |
Voltage | Single phase AC 220V，50Hz | |
Power | 75W | |
Air source | 0.45-0.6Mpa | |
weight | 45KG | |
Feeder Dimension | L:1350±10mm | |
W:350±5mm | ||
H:1150±25mm | ||
noise limited | ≤65dB | |
function data | Quantity of stock | ≤20 tube（depended on the component size） |
feeding speed | 2s/ pc | |
failure rate | 0.3%-0.6% | |
component data | component size (rectangle) | L: L+1~2; L≤30mm |
W: W±0.1: W≤25mm | ||
H:H+0.5: H≤30mm | ||
tube size | L: L+1~2;400≤L≤550mm | |
W：W±0.1；W≤25mm | ||
H：H±0.5; H≤30mm | ||
Component pin spacing tolerance P | P±0.1; | |
Component pin diameter φd | φd±0.1; | |
component pin lead length | h±0.5;2.8mm≤h≤5mm | |
Component pin direction | Vertically downward, parallel to the direction of gravity | |
