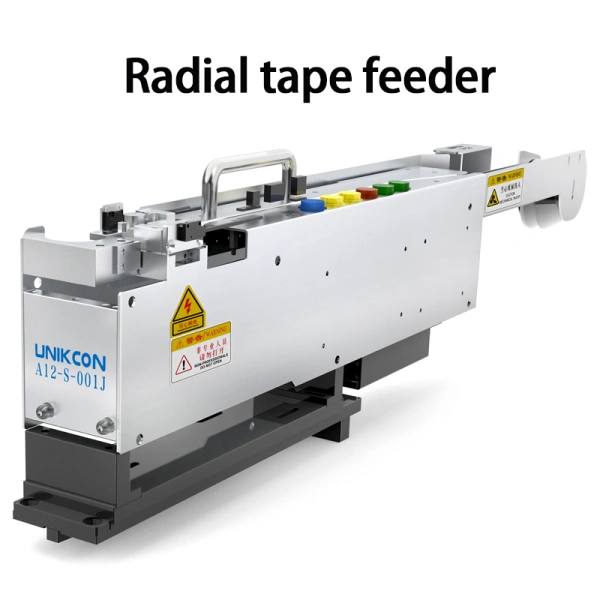

Radial tape feeder for auto insertion machines
key point: our feeders can according to different brand machine to do.
Juki machine, Universal machine, JTE...
Just tell me your requirement! we can do it!
keywords: radial tape feeder, radial feeder, Axial feeder, Axial tape feeder, dip feeder, tht feeder, insertion machine feeder, insert machine's feeder, placement machine's feeder, tray feeder, linear feeder, linear bulk feeder, bowl feeder...
| 设备名称 Name | 立式编带供料器 Radial tape feeder | |
| 项目内容 item | 技术指标 data | |
| 基础参数 basic data | 型号 model | A12-S-001J |
| 供料器额定电压 Voltage | 单相AC 220V，50Hz | |
| 供料器额定功率 Power | 50W | |
| 压缩空气气压 Air source | 0.45-0.6Mpa | |
| 供料器重量(约) weight | 12KG | |
| 供料器外形尺寸 Feeder Dimension | 供料器本体长度 L:780±10mm | |
| 供料器本体宽度 W:70±5mm | ||
| 供料器本体高度 H:230±5mm | ||
| 工作时噪声限值 noise limited | ≤65dB | |
| 功能参数 function data | 元料带孔中心至折弯处或元件底部 From the center of the tape hole to the bend or the bottom of the component | 16.0~18.0±0.5mm |
| 供料节拍 feeding speed | 1.2s/ pc | |
| 卡料率 failure rate | ≤0.3% | |
| 元件参数 component data | 元件尺寸 component size | 元件本体直径D：4mm≤D≤16mm |
| 元件本体高度H：6≤H≤20mm | ||
| 元件引脚中心距L：3≤L≤20mm | ||
| 元件本体左右偏摆 The component body sways left and right | 标准standard≤1mm 最大 max≤2mm | |
| 元件本体前后偏摆 The component body sways back and forth | 标准 standard ≤1mm 最大max≤2mm | |
| 元件引脚中心距公差 Component pin center distance tolerance | ≤±0.5mm | |
| 元件引脚直径 Component pin diameter | ≤φ1±0.05; | |
| 元件引脚方向 Component pin direction | 竖直向下平行于重力方向 Vertically downward, parallel to the direction of gravity | |
| 包装参数 | 料带孔距 tape hole spacing | 12.7mm或15.0mm（不建议兼容） |
| 料带总厚度 total thickness of tape | 0.45±0.05mm | |
| 料带孔径 Tape bore diameter | φ4±0.2 | |
| 料带高度 Tape bore hight | 18±0.5mm | |
| 料盒尺寸 box size | 料盒长度 L：≤340±3mm | |
| 料盒高度 H：≤330±3mm | ||
| 料盒宽度 W：≤62mm | ||
